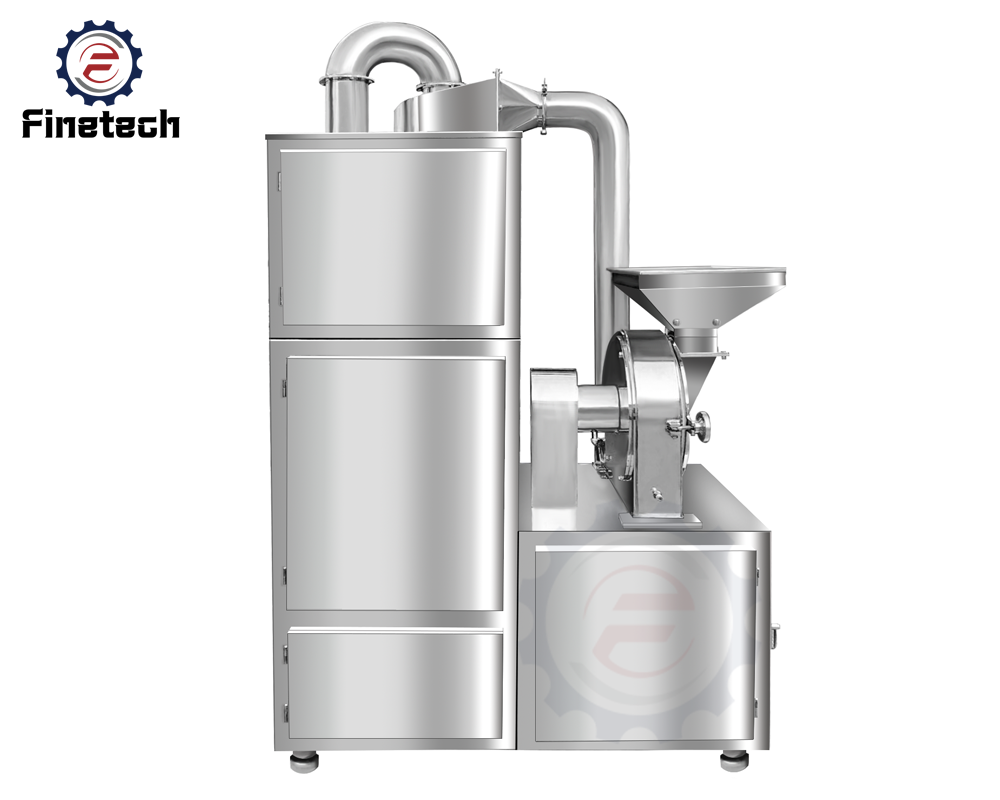

Universal Crusher
A Universal Crusher is a multi-functional grinding machine designed to crush, grind, and pulverize a wide variety of materials, including grains, spices, herbs, chemicals, and minerals. The universal crusher features wide applicability, adjustable fineness levels, efficient crushing, sturdiness and durability, and easy operation.
Our Universal Crusher Product List
This equipment is widely used in industries such as food processing, pharmaceuticals, chemicals, and agriculture. We have five models for you to choose from: FT-20B, FT-30B, FT-40B, FT-50B, and FT-60B; we can also provide customized solutions based on your requirements.
Production capacity: 60-2,000 kg/hour
Feeding Size: 6-12 mm
Weight: 280-680 kg
20-120 mesh
combining crushing and dust collection as a whole
Stainless Steel made
Specification
| Model | FT-20B | FT-30B | FT-40B | FT-50B | FT-60B |
|---|---|---|---|---|---|
| Production Capacity | 60-150kg/h | 100-400kg/h | 160-1000kg/h | 500-1200kg/h | 500-2000kg/h |
| Feeding Size | 6mm | 6mm | 10mm | 10 mm | 12mm |
| Crushing Fineness | 20-120mesh | 20-120mesh | 20-120mesh | 20-120mesh | 20-120mesh |
| Spindle Speed | 4500r/min | 3800r/min | 3400r/min | 3400r/min | 2800r/min |
| Motor Power | 4kw | 5.5kw | 11kw | 18.5 kW | 18.5kw |
| Overall Dimension | 550*600*1250mm | 600*700*1450mm | 800*900*1550mm | 850*850*1500 mm | 900*900*1880mm |
| Weigh | 280kg | 350kg | 550kg | 550 kg | 680kg |
Applicable Industries
Learn more about the Universal Crusher
Key Components of the Universal Crusher
Equipped with an ergonomic knob for fast and slow rotation speeds and with a prominent ON/OFF switch, it is intuitive to power on and off.
The knife set and rotor are designed with snaps for quick, tool-free disassembly for easy cleaning and maintenance.
Easily handle a huge variety of capsule sizes from 00 to 0.5 for diverse applications.
How Does Universal Crusher Work
- Step 1. Feed: Materials are evenly fed into the crushing chamber through a hopper; some models are equipped with vibrating or screw feeders for smooth material flow.
- Step 2. Crush: High-speed rotating blades/hammers (3,000-10,000 RPM) apply impact and shearing forces to efficiently pulverize materials.
- Step 3. Sift: Crushed materials are graded through interchangeable screens, with oversized particles continuously recirculated until they reach the desired size.
- Step 4. Discharge: Powder granules meeting the size requirement pass through the screen into a collection unit. Advanced models feature cyclone separators for improved powder recovery.
- Step 5. Protect: Built-in overload protection and water-cooling systems ensure safe operation and prevent thermal degradation of heat-sensitive materials.
FAQ
The fineness is adjustable, but typically it is in the range of 20-200 mesh.
Finer powders require smaller sieve holes and multiple passes.
Energy consumption ranges from 5-30 kW depending on capacity; the machines are equipped with intelligent power-saving modes.
Noise levels reach 70-85 dB; optional soundproofing enclosures are available.
✔ Dry materials (herbs, spices, grains, minerals)
✔ Semi-wet materials (moist herbs, pastes)
✔ Fibrous materials (roots, stems, leaves)
✔ Brittle materials (sugar, salt, chemicals)
Lab-scale: $1,000–$5,000
Industrial: $5,000–$20,000+
Disassemble blades/sieve for manual washing.
Use compressed air to remove powder residues.
Sanitize with food-safe cleaners (for pharma/food use).
Multi-layer alloy blades or hammers rotate at high speed, instantly pulverizing hard or brittle materials with a 30%+ efficiency gain.
High-Speed Impact Blades/Hammers
