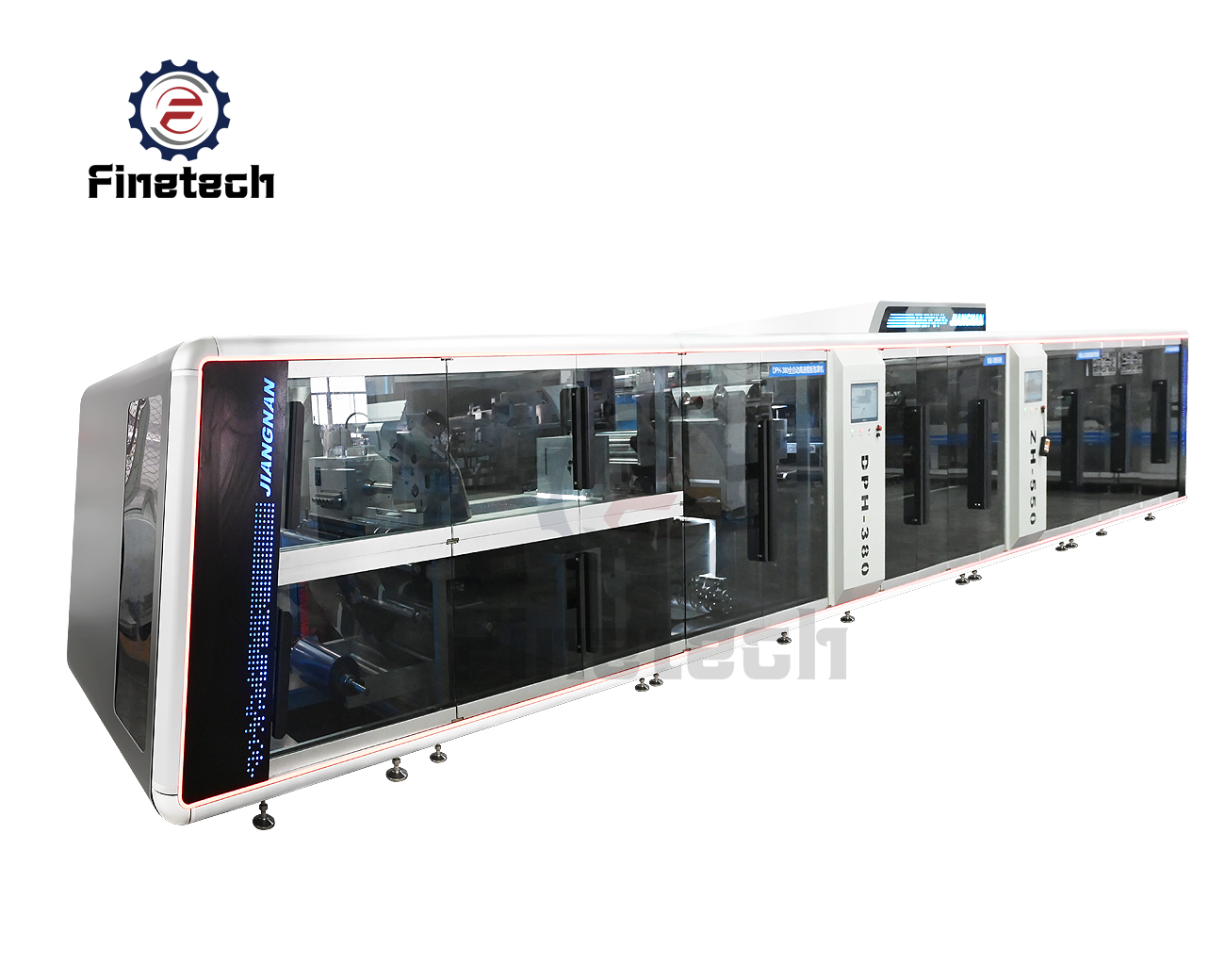

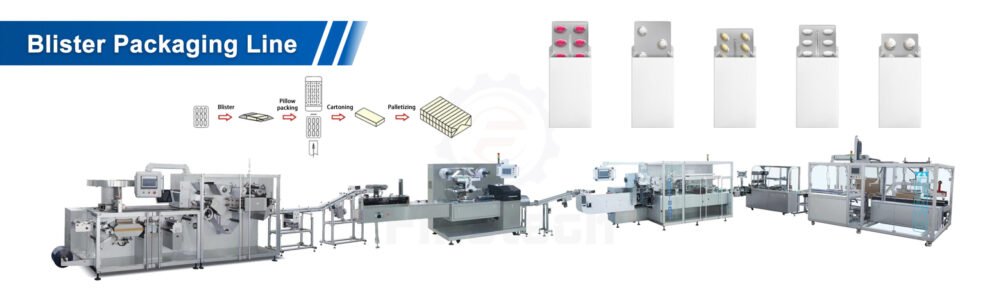

Blister Packaging Line
Finetech’s blister line integrates thermoforming blister packaging machines, cartoning machines, and some secondary packaging machines to achieve high-speed packaging, averaging 120,000 blister packs per hour. Widely used in pharmaceutical, cosmetic, and chemical factories.
Need a Cutsom Quote
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application
Reviews No reviews yet
Videos
Working Principle
- Connected packaging stages: Blister packing and cartoning work together in one line. Select secondary packaging equipment to match the finished-pack requirements.
- Custom blister molds: Molds can be made to suit your tablet or capsule dimensions and the required cavity layout.
- Servo-controlled movement: Servo controls coordinate machine movement and help maintain consistent positioning through the packaging process.

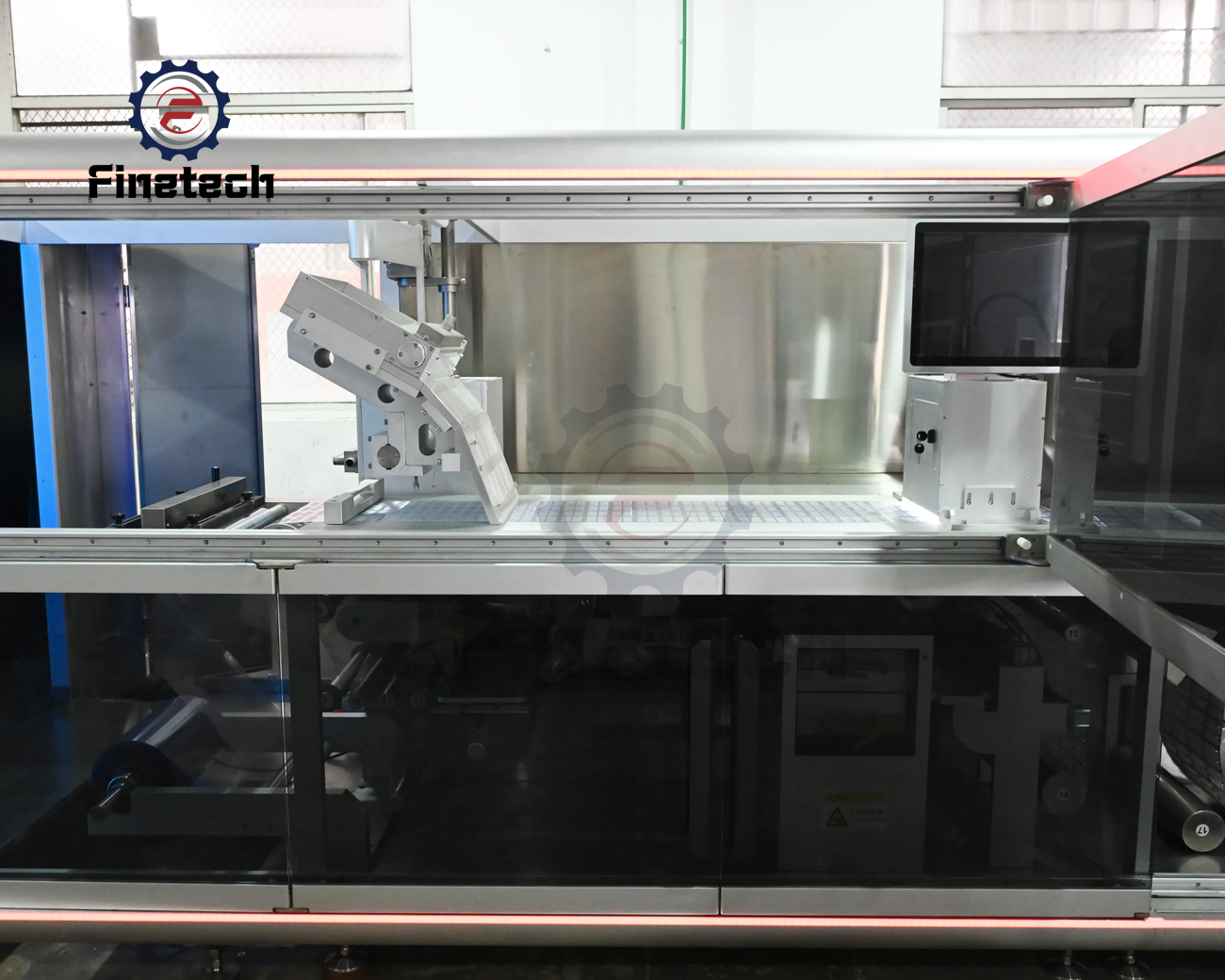

- Operator control screen: The human-machine interface, or HMI, provides access to production controls and settings for packaging-format changes.

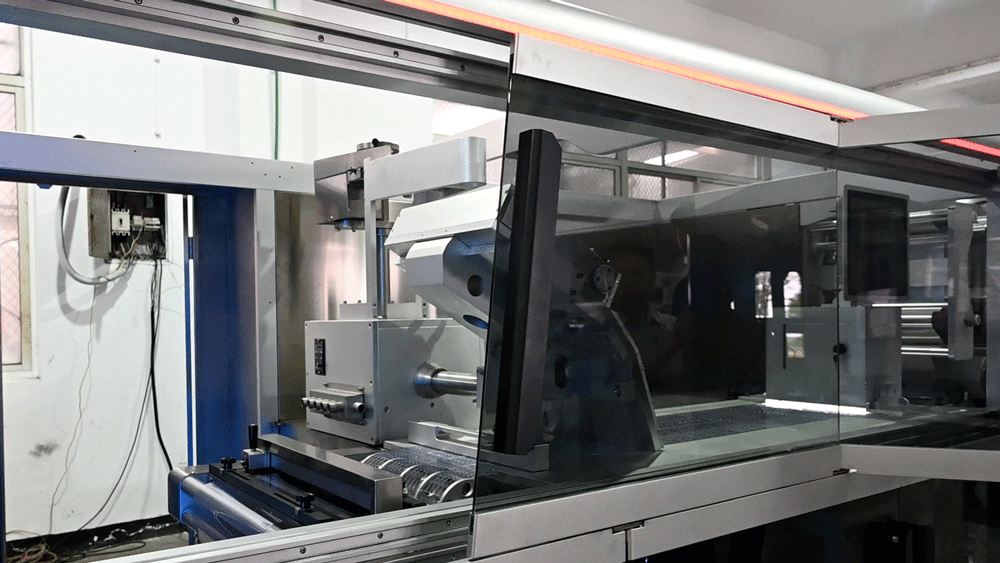

- Enclosed operating areas: Enclosures and safety doors help restrict access to moving equipment during production.
- Capacity matched to your packs: Specify blister packs per hour, cartons per minute, and blisters per carton. These details help determine the line configuration and required output.
| Model | FT-600G | |
| Flat Plate Blister Packaging Machine | punching frequency | 10-20times/min |
| max.forming area | 380x600mm | |
| adiustable scope oftravel | 50-370 mm | |
| specification of blister | candesignastherequirementofcustomer | |
| packing material | Non-toxic PVC rigid sheet (compliant with GB5663) (0.150.5) x 600mm, with reel hole diameter of 7476mm. Maximum outer diameter of rolled film: 500-600mm. | |
| electric heating power | PVC Preheating Plate 2 x 3 kW | |
| mould cooling | Tap water or circulating water at 60 L/h | |
| main motor power | 3KW | |
| packaging demensions | 8500x1650x1900mm | |
| weight | 11000kg | |

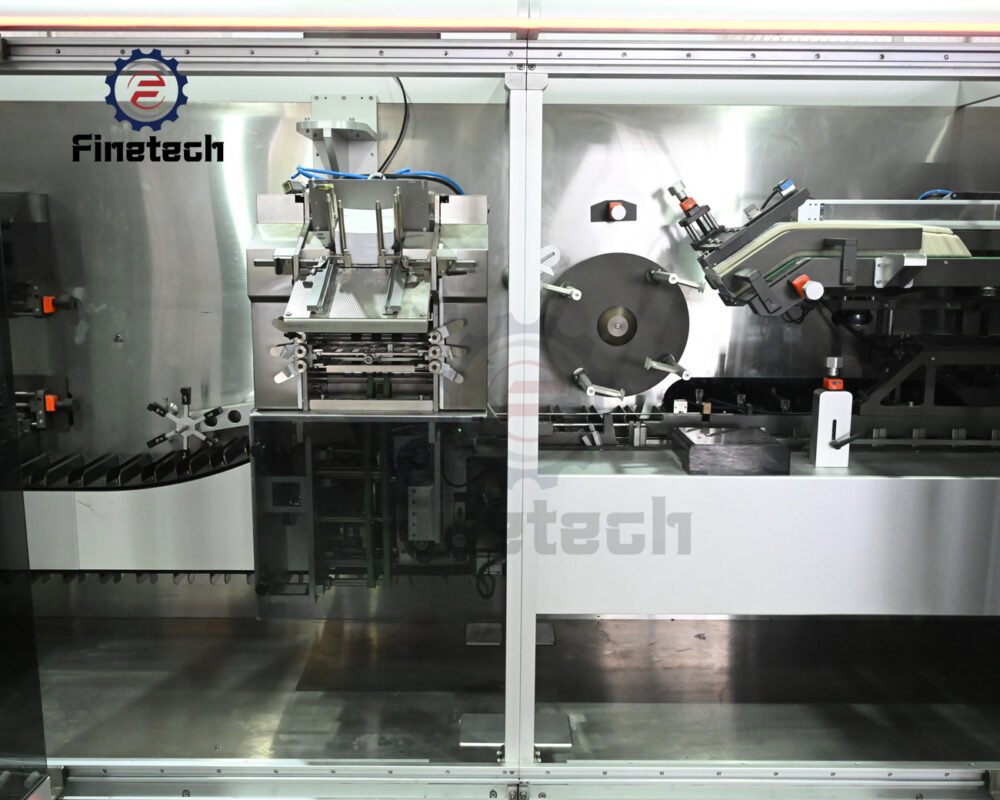

| High-Speed Cartoning Machine | cartonerspeed | 300 boxes per minute |
| specification ofcarboard case | Maximum size: 150x80x50mm Minimum size: 80x35x15mm | |
| (leaflet of medicine) | (100-250)mm × (100-170)mm (length × width) Minimum folded width: 15mm | |
| power main motor power | 245 x 112 mm, 380V 50Hz three-phase four-wire, 4KW | |
| pressure air-consumption | z0.6Mpa 0.06~0.09mmin(pressure0.6~0.9Mpa) | |
| Noise | 20.25m’/min<80DB | |
| packaging demensions | (L*W*H)3700x1700x1900mm | |
| weight | 3500kg | |
| Air pump | air-consumption | >0.2m/min |
| pressure | 0.5-1.0 mpa | |
| totalpowerofmachine | 10KW | |
| max.totalair-consumption | 260 L/min | |
| Complete machine | packagingdemensions | (L*W*H)16120x2200x1900mm |
| weight | 16500 kg | |

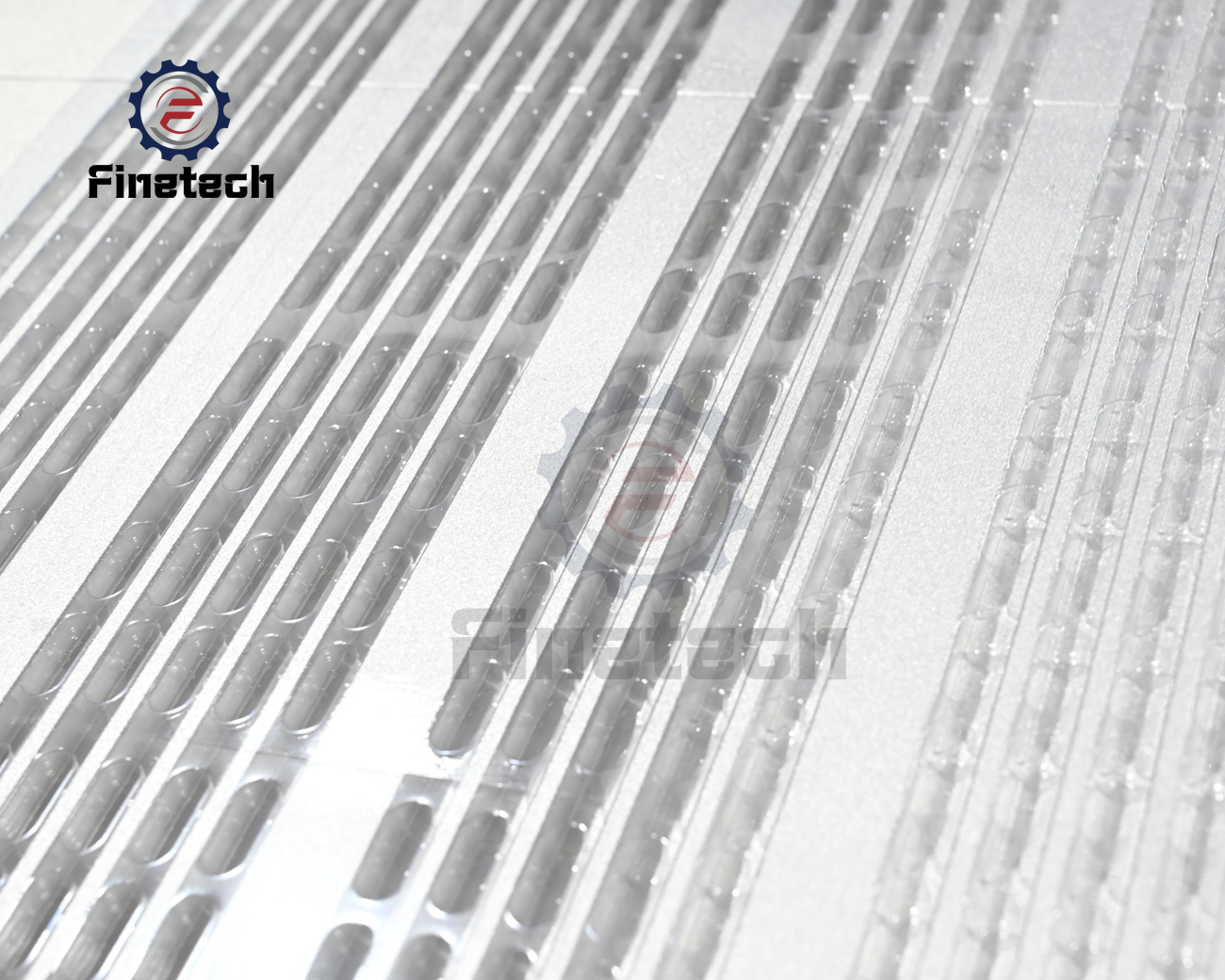

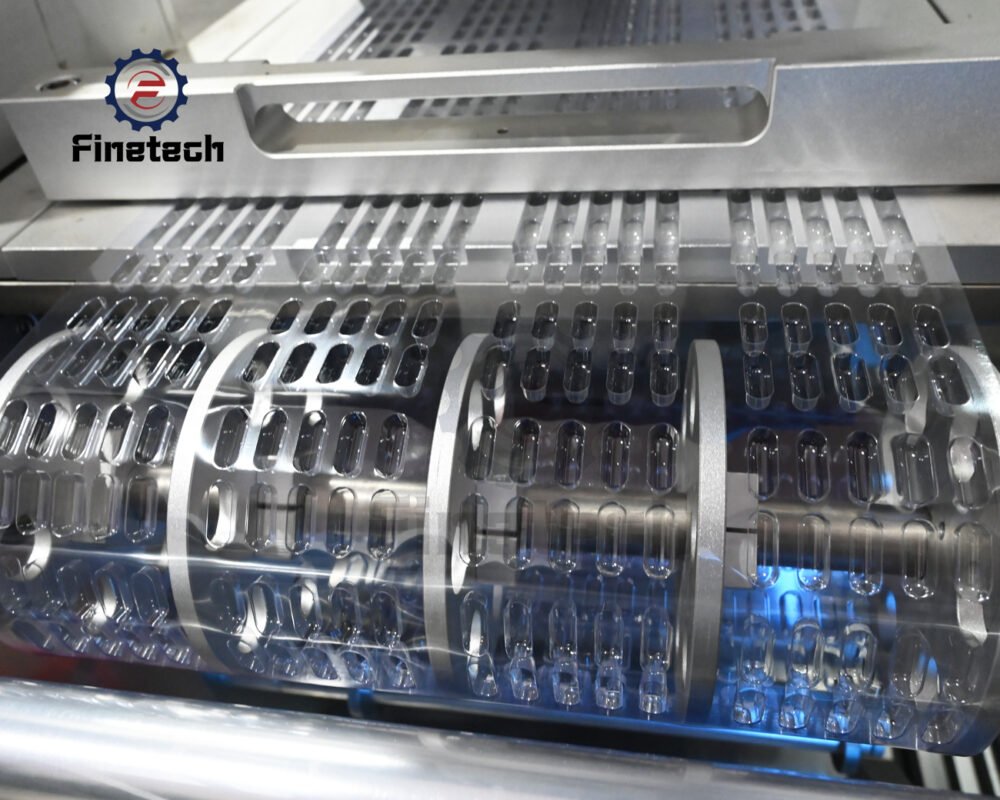

Forming Station: Heats and molds plastic film into blisters.
Product Feeding System: Loads tablets, capsules, or other items.

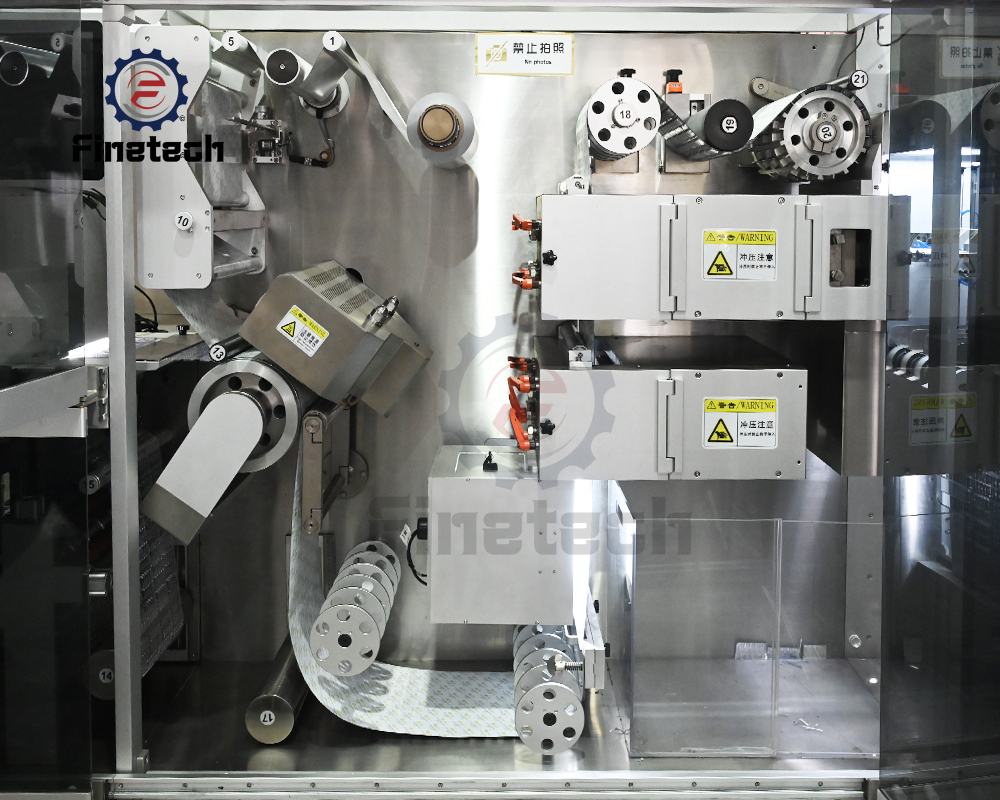

Sealing Station: Seals blister cavities with lidding material (foil/cardboard).

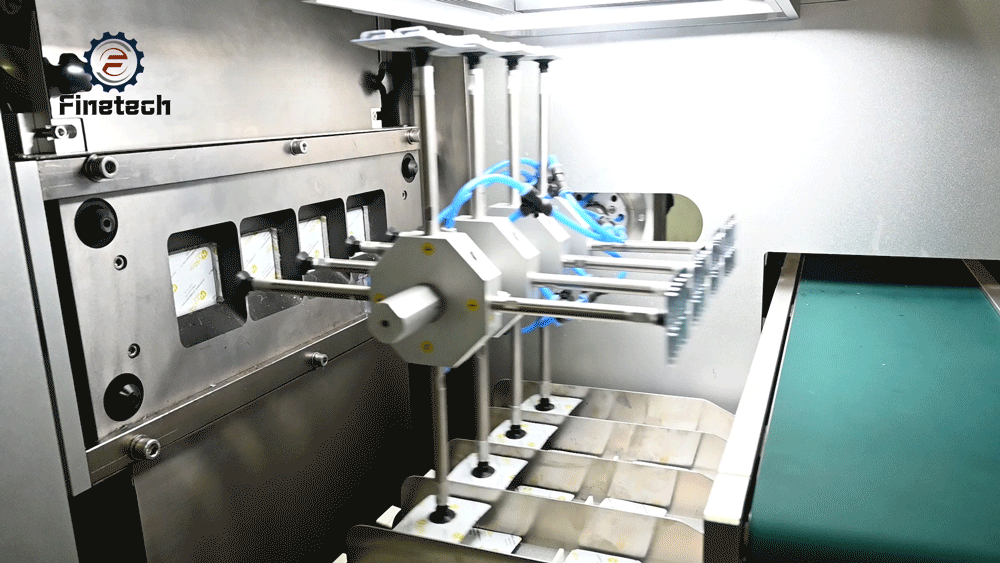

Punching Station: Cuts individual blisters.
Control Panel/HMI: For machine operation and monitoring.
Replace the forming mold and adjust the heat/air pressure settings. Consult the machine manual for calibration.
Misaligned film feed.
Film tension too high/low.
Foreign objects obstructing the conveyor.
Daily: Clean forming/sealing stations, check sensors.
Weekly: Lubricate moving parts, inspect molds.
Annually: Full calibration by a technician.
Blister Film: PVC, PVDC, Aclar, or COC.

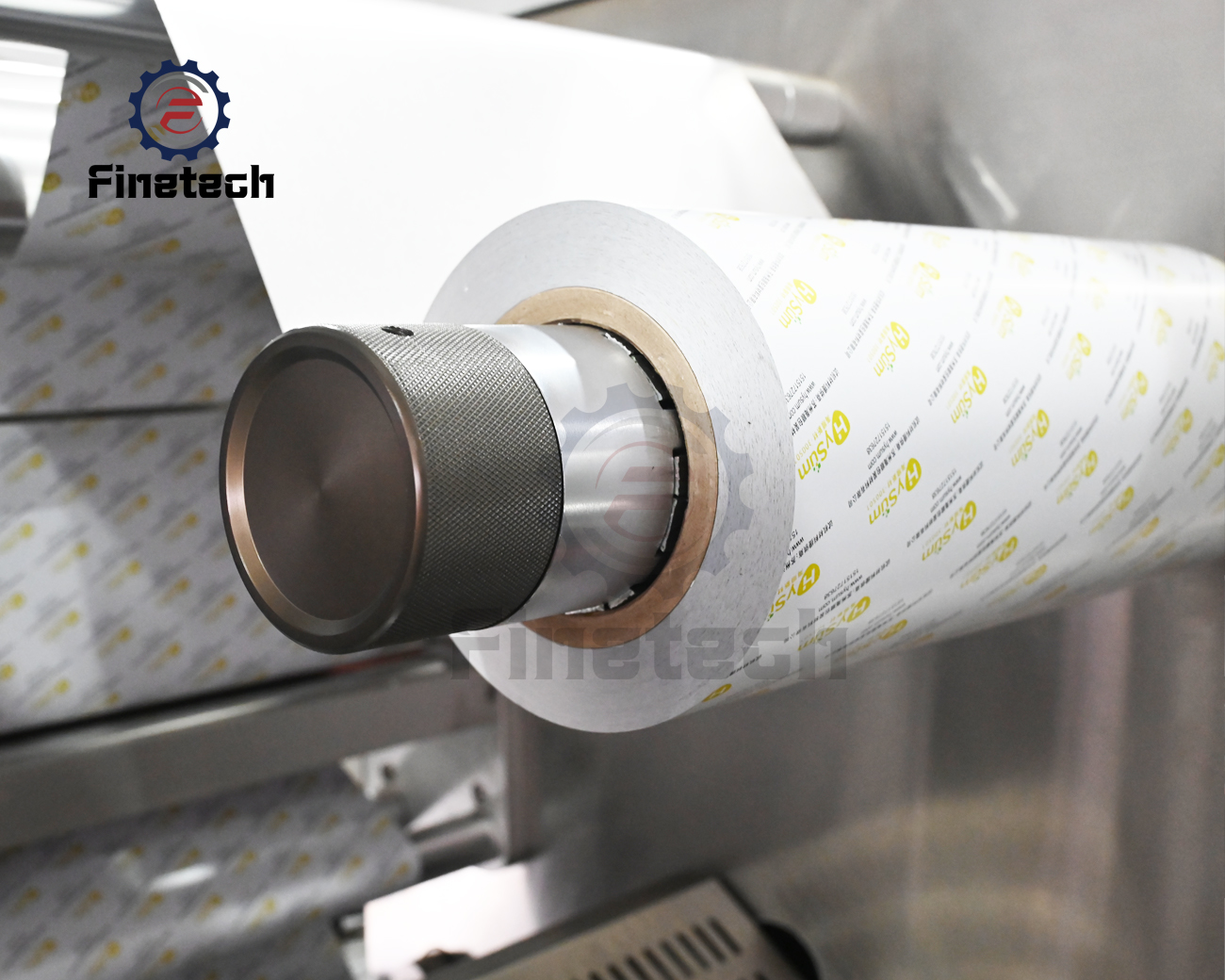

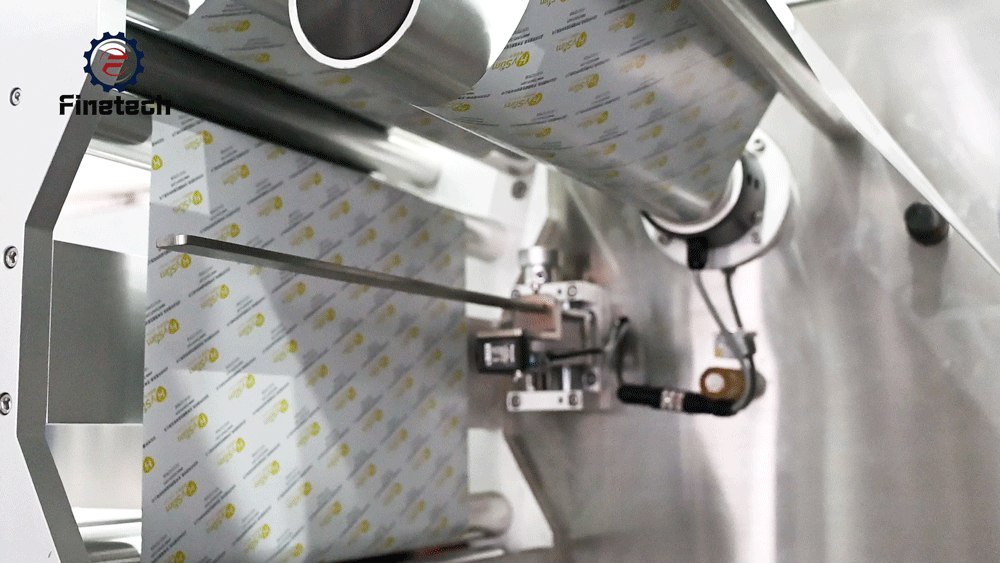

Lidding: Aluminum foil, paper, or peelable films.
Optimize heat settings to reduce cycle time.
Use high-quality films to minimize jams.

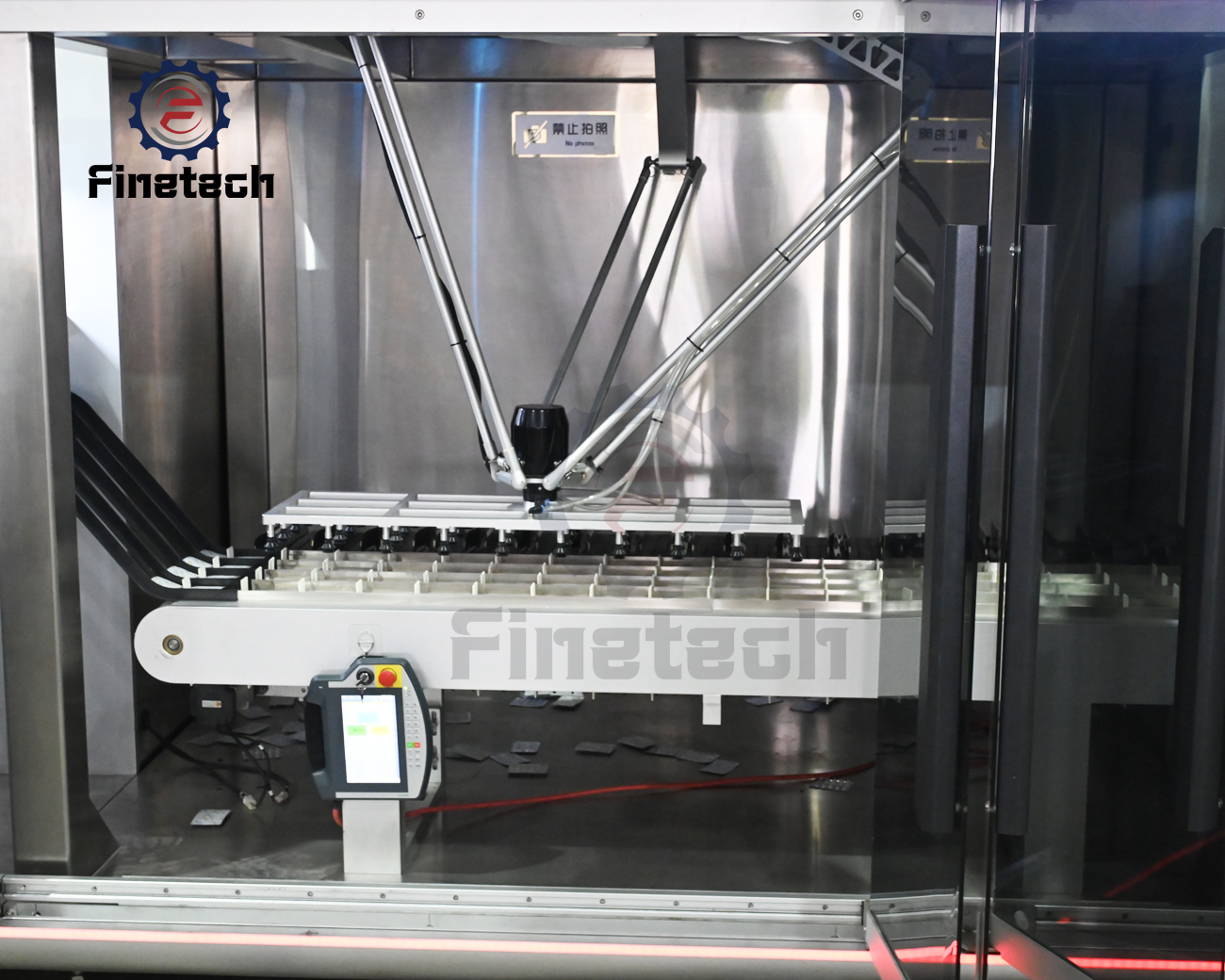

Automate product feeding (e.g., robotic loaders).
Many newer machines support data logging, predictive maintenance, and OEE tracking.
