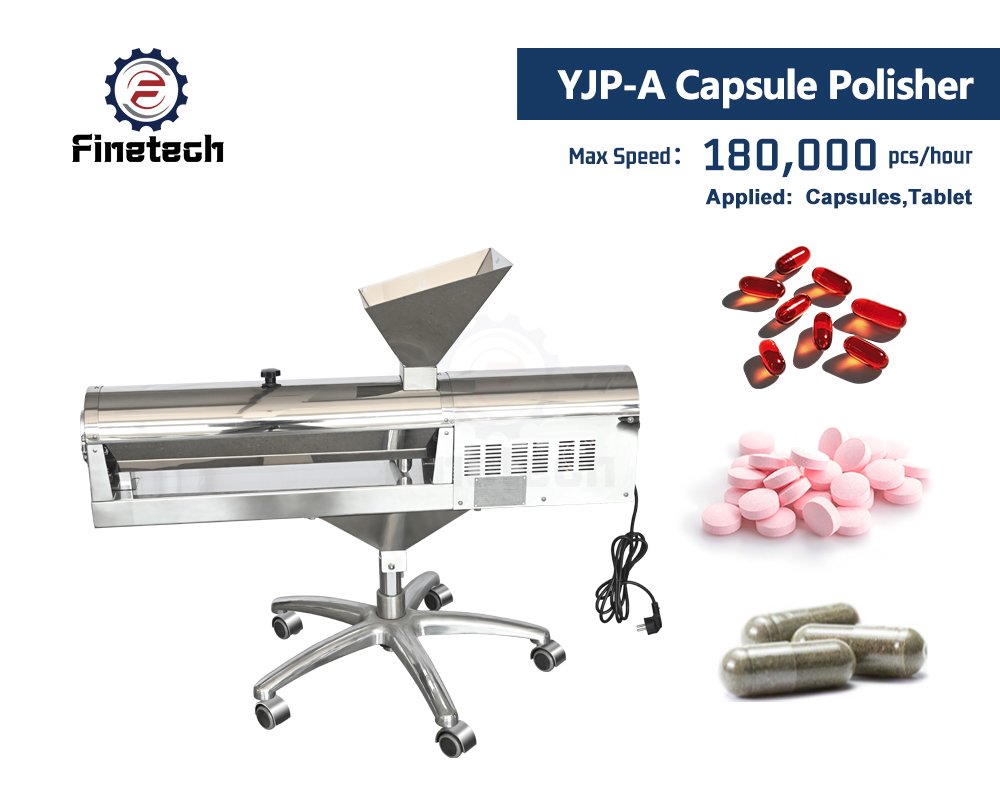

YJP-A Capsule Polishing Machine
The machine can be used for hard capsules, soft capsules and odd-shaped capsules. By accurately adjusting the polishing intensity and speed, it can effectively remove burrs on the capsule surface. At the same time, it complies with GMP hygiene standards and eliminates cross-contamination. It is widely used in capsule polishing in the pharmaceutical, healthcare, food, and other industries.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
1. The YJP-A effectively removes dust from capsule surfaces, improves finishes, and eliminates static electricity.
2. Easy to operate, maintain and clean.
3. Applied for all types of capsules according to production needs.
4. It complies with GMP standards to guarantee hygiene and safety.
5. The entire machine is made of 304 and 316 stainless steel. It has a sorting function and can eliminate unqualified capsules, such as incompletely filled, empty, or uncovered.
| Model | YJP-A capsule polishing machine |
| Production efficiency (piece/hour) | 3000pcs/min |
| Power supply | 220W/110V 50Hz/60Hz 1P |
| Working speed | Adjustable |
| Vacuum Pressure | 1.8m³/min-0.01MPa |
| Noise (decibel) | <75 |
| Overall size(LxWxH)mm | 750*320*1030 |
| Weight | 45kg |
The YJP-A is designed to polish hard gelatin capsules. It effectively removes loose powder, dust, and minor oil stains from the surface of capsules after they have been filled and locked by a capsule filling machine. This improves their appearance, ensures patient compliance, and prevents cross-contamination between different capsule types.
The machine uses a gentle brushing action. Capsules are fed into a rotating polishing drum lined with a soft, fluffy brush. As the drum rotates, the brushes scrub the capsules clean. An integrated vacuum system simultaneously sucks away the removed dust and powder, collecting it in a dedicated bag or container.
It is primarily designed for standard hard gelatin capsules (both snap-fit and locking types) in various sizes, from size 5 to size 00. It is generally not suitable for softgels, tablets, or other solid dosage forms.
The capacity varies slightly by model, but a standard YJP-A can typically process up to 3000 capsules per hour. The actual output depends on the capsule size and the properties of the powder inside.
Yes, one of its key features is easy cleaning and maintenance. The main components, including the polishing drum, brush, and dust collection bag, are designed for quick disassembly and reassembly without tools.
Insufficient Vacuum: Check that the vacuum suction is strong enough. Ensure the dust bag is not full and the hoses are not clogged.
Brush Wear: The brush may be worn out and needs replacement.
Incorrect Speed: The drum may be rotating too slowly. Increase the speed slightly.
Excessively Oily Powder: The machine is designed for dry powder. Oily formulations can smear and are harder to clean with this method.
Yes, manufacturers often offer variants. Common differences include:
YJP-A: Standard model.
YJP-AII: An improved version, often with a more powerful motor or refined design.
YJP-B: A larger capacity model.
Always check the technical specifications for the exact model you are considering.
