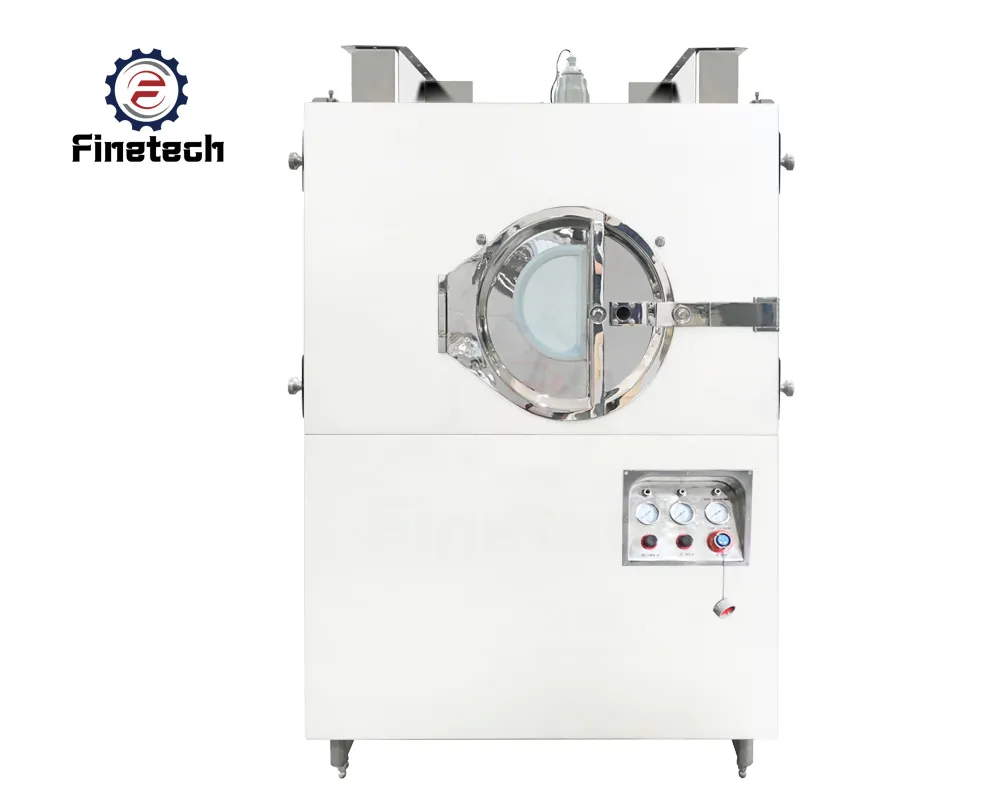

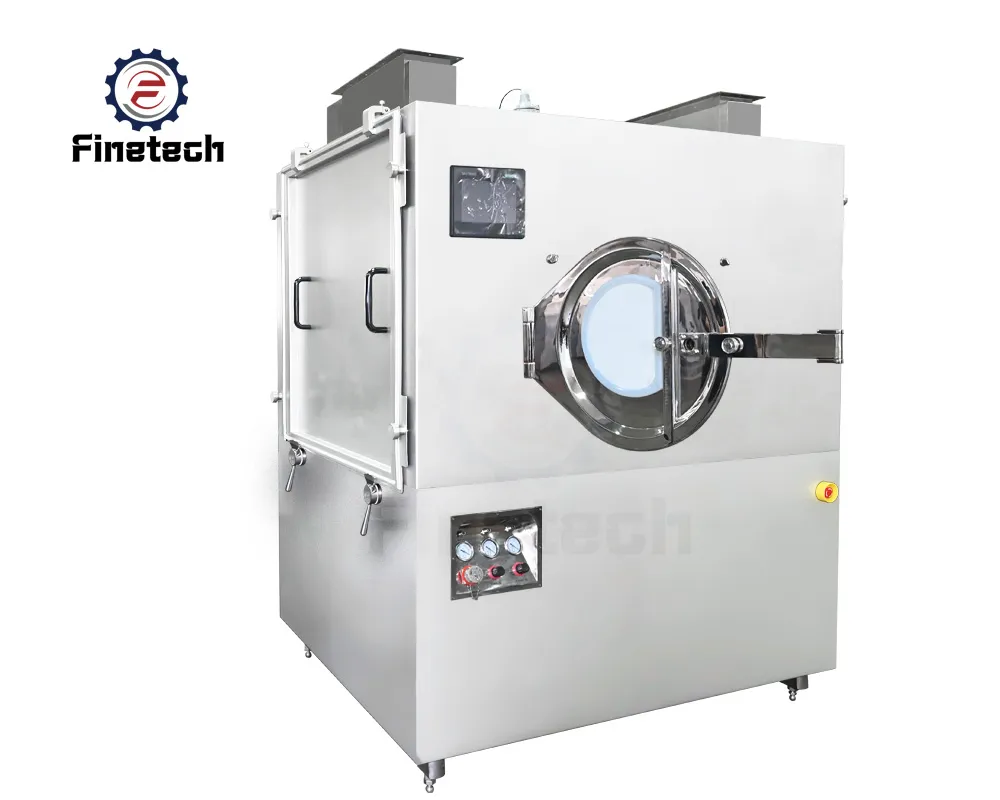

BG-150D Automatic Tablet, Pills Coating Machine
The BG-150D was specifically designed for large pharmaceutical companies, large-scale production lines, and high-end R&D centers. It features a more advanced, fully automatic intelligent control system, and has significant advantages such as high speed and stability, temperature control, uniform coating, and energy savings. It is used fo tablets, pills, granule film coatings, sugar coatings, and special-function coating production, fully meeting GMP and FDA production standards.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
1. PLC control greatly improves production efficiency, making it suitable for large-scale tablet production, far exceeding miniaturized design. Multi-layer hot air circulation design ensures uniform and stable coating, adapting to larger-scale production needs. It can handle larger tablets and higher output requirements, and its production capacity is significantly better than similar equipment.
2. Flexible adjustment of process parameters to adapt to different coating requirements and meet complex production processes. High-quality stainless steel materials are used to ensure long-term efficient operation, suitable for continuous high-intensity production.
3. The coating process is fully enclosed, without flying dust, meets GPP and GMP requirements, and is conducive to improving coating quality.

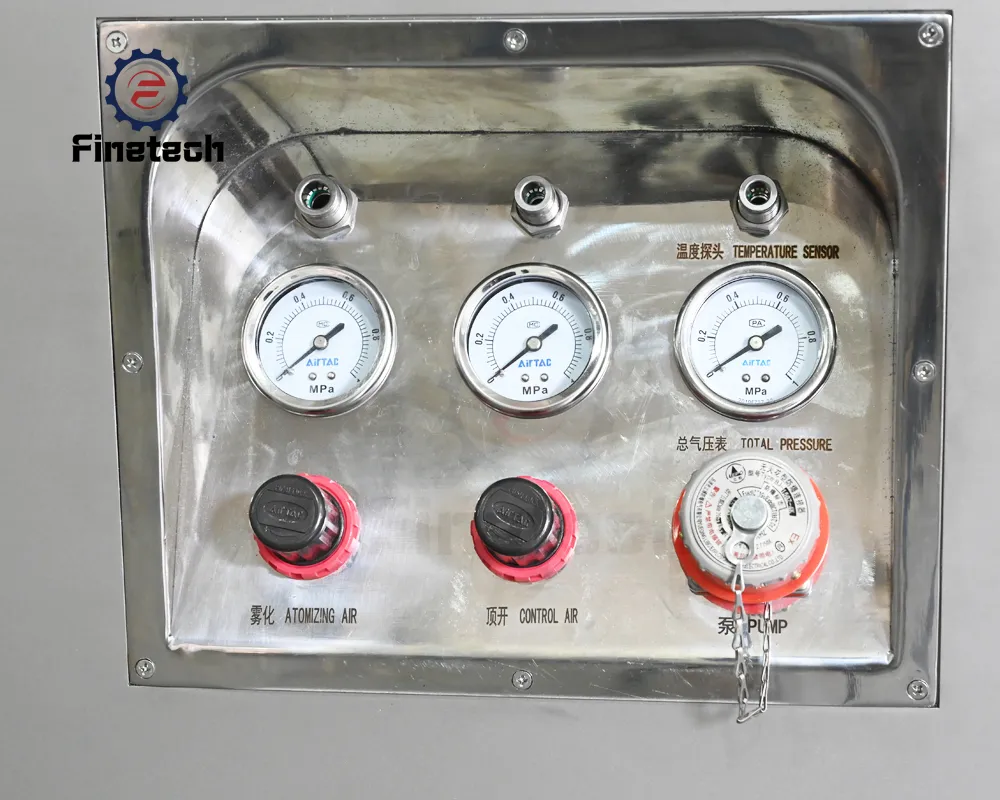

4. Touchscreen centralized control, PLC control, host speed variable frequency control, air supply temperature PID control, simple operation, easy to learn and use.
| Model | 150 Automatic Tablet, Pills Coating Machine | |
| Load Capacity | 150L | |
| Rotation Speed of Coating Pan (RM) | 1-16RPM | |
| Power of Main Machine | 2.2Kw | |
| Diameter of Coating Pan | 1200mm | |
| Motor of Air Exhaust Cabinet | 5.5Kw | |
| Air Exhaust Flow | 7419m³/h | |
| Motor Power of Hot Air Cabinet | 1.5Kw | |
| HotAir Motor Air Flow | 2356m³/h | |
| Weight of Main Machine | 1020Kg | |
| Clean Air | Clean Air | ≥0.4Mpa |
| Air Comsumption | 1 m³/min | |
| Main Machine | 1570x1260x2250mm | |
| Hot Air Cabinet | 1000x900x2300mm | |
| Air Exhaust Cabinet | 950x950x2245mm | |
| Steam Heating Power | 14Kw | |
| Electric Heating Power | 42Kw | |
