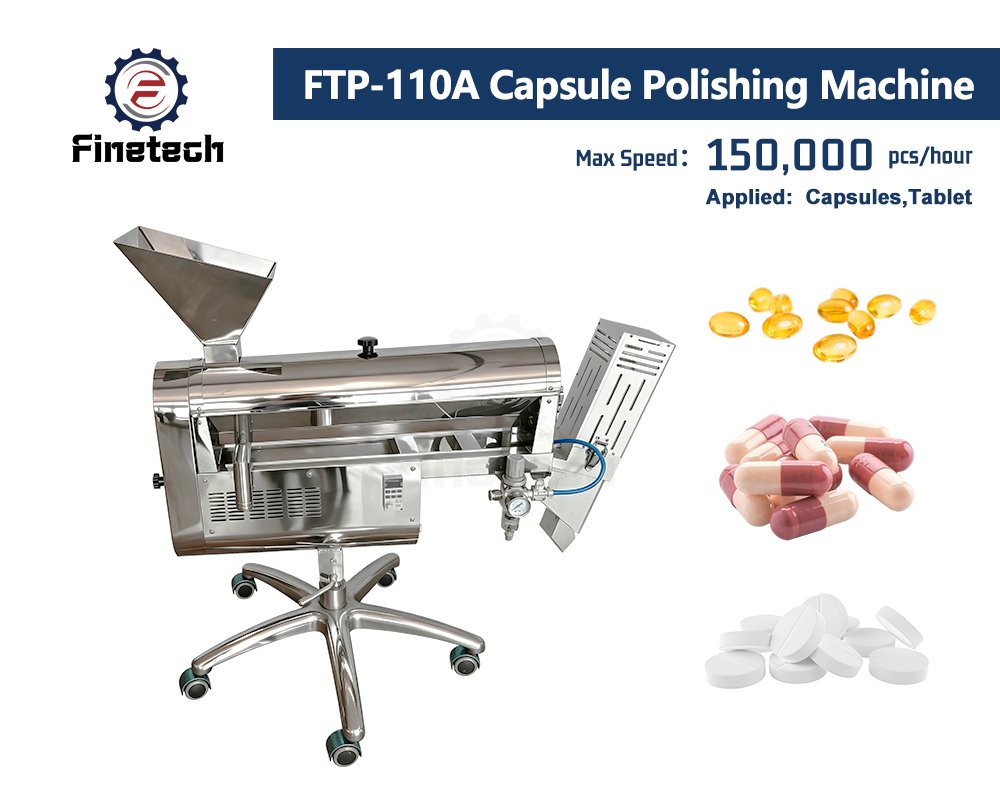

FTP-110A Capsule Polishing Machine

FTP-110A is a newly designed Capsule Polisher to polish capsules and tablets, it is a must for any company producing hard gelatin capsules.

Need a Custom Quote?

Or More information About this product? Contact our sales stuff today!

Key Features

Technical Data

The height and angle can be adjusted to fit into any chute of the capsule flling machines and tablet press equipment.

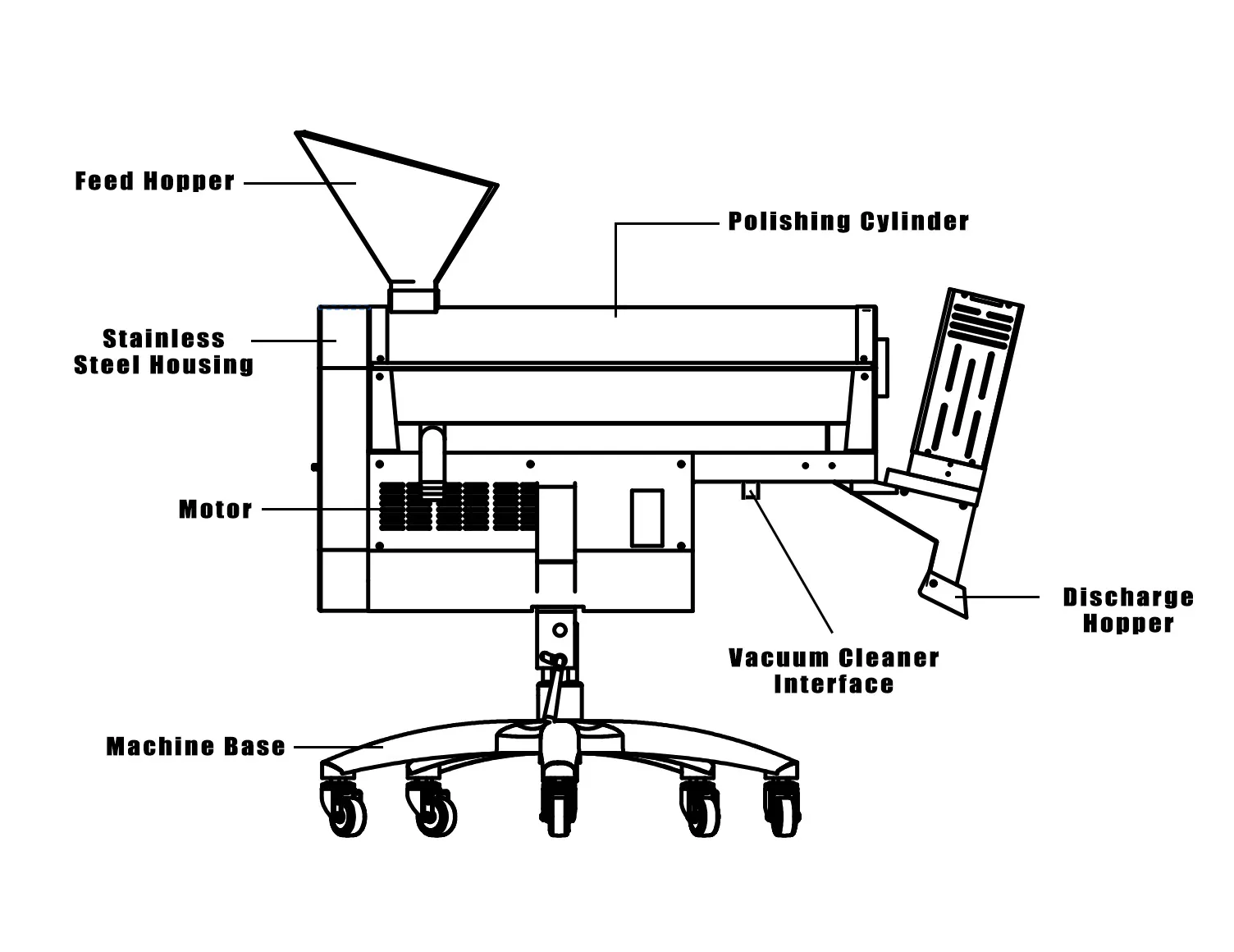

capsule polishing machine diagram
Capsule polishing machine diagram.

It can eliminate static; and automatically reject ultra light weight capsules, fragment and empty capsules.

New type net cylinder ensures no jammed capsules during operation.

The capsules are not directly contact with the metal net to protect the printed capsule effectively.

New type of brush is durable and can be change easily.

Excellent design for quick cleaning and straightforward maintenance.

Adopts frequency converter, which is great for continuous long hours of operations.

Drive by synchronous belt to reduce noise and vibration of the machine.

It is suitable for all sizes of capsules without any change parts.

All the main parts are made of premium stainless steel are in compliance with pharmaceutical GMp requirements.

Working Capacity: 150000 pcs/hour
Power Supply: 220V,50Hz,2A,180W
Negative Pressure: 2.7m3/min -0.014MPa
Compressed Air: 0.25m³/min 0.3MPa
Overall Dimension (LxWxH): 800x550x1000mm
Machine Weight: 45Kg
