Perfume Filler
A perfume filler is an automated or semi-automated machine designed to accurately fill bottles with perfume, cologne, or other fragrances. This type of filling machine has many features, including precise filling, a multi-nozzle design, and easy operational controls.

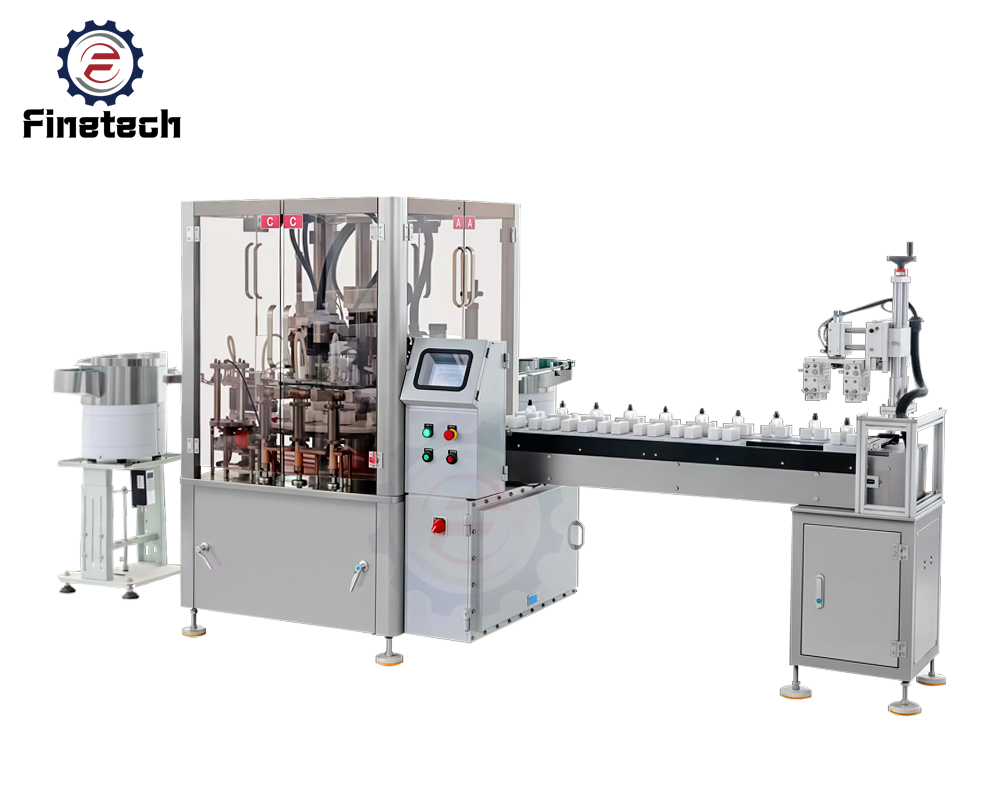

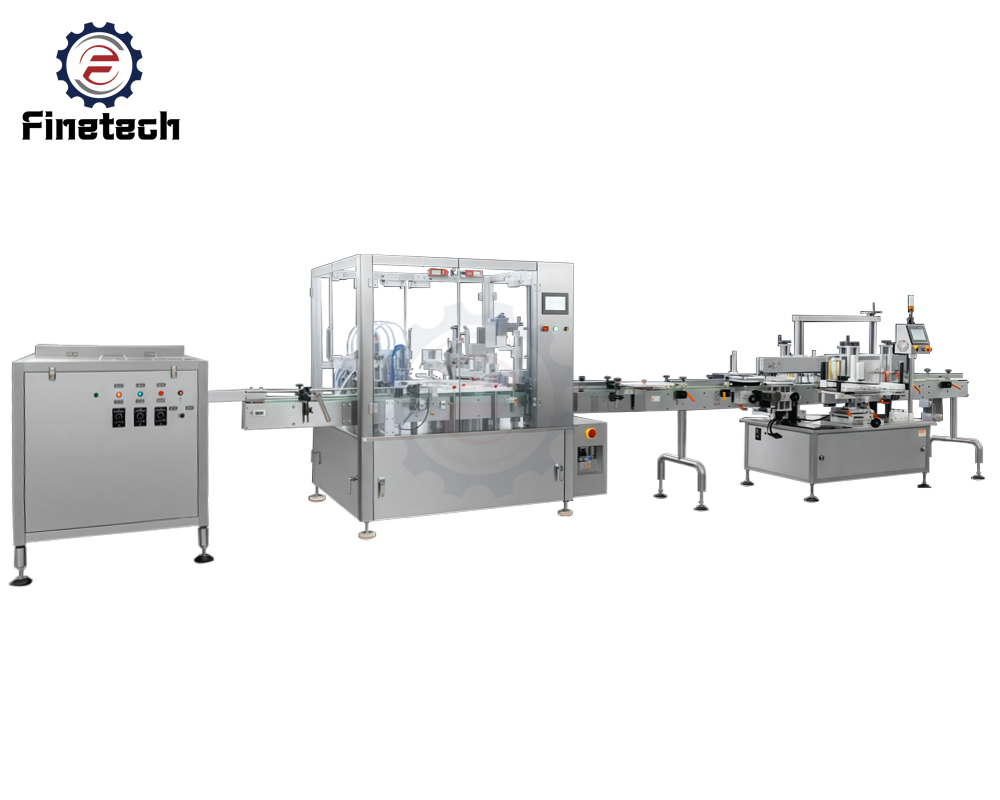

View Our Perfume Filling Equipment List
These machines ensure precision, hygiene, and efficiency in the packaging process, reducing waste and the risk of contamination.
Filling volume: 5-120 mL
Filling speed: 30-50 bottles/minute
Filling accuracy: ≤1%
Filling Volume: 5-250 mL
Filling Speed: 30-50 bottles/minute
Filling Accuracy: ≤1%
Filling Volume: 15-1,000 mL
Filling Speed: 20-30 bottles/minute
Filling Accuracy: ≤1%
Specification
| Model | automatic perfume filling machine | Manual perfume filling machin | perfume bottle filling machine |
|---|---|---|---|
| Filling volume | 5~120ml | 15~1000ml | 5~120ml |
| Filling speed | 30-50bottles/min | 20-30 bot/min | 30-50bottles/min |
| Main machine power | 1kw 220/380V frequency control | 1kW 220V | 1kw 220/380V frequency control |
| Filling accuracy | ≤+1% | ≤±1% | ≤+1% |
| Finish products rate of cap dropping and locking | ≥99% | ≥99% | ≥99% |
Applicable Perfumes
Learn more about our perfume filling machines
Key Components of the Perfume Filler

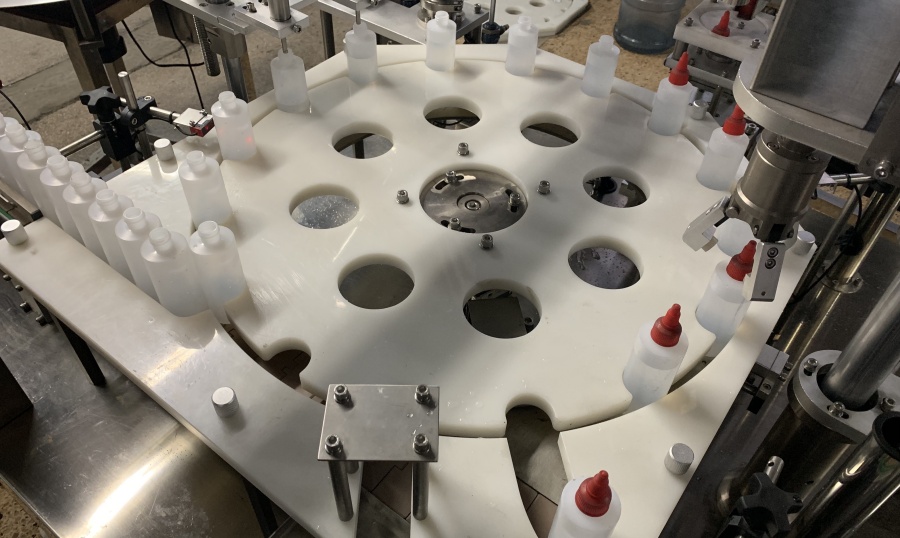

Our machines feature a diameter-adjustable design with one-click locking for different bottle diameters, and are perfectly compatible with round, square, and irregularly shaped bottles.

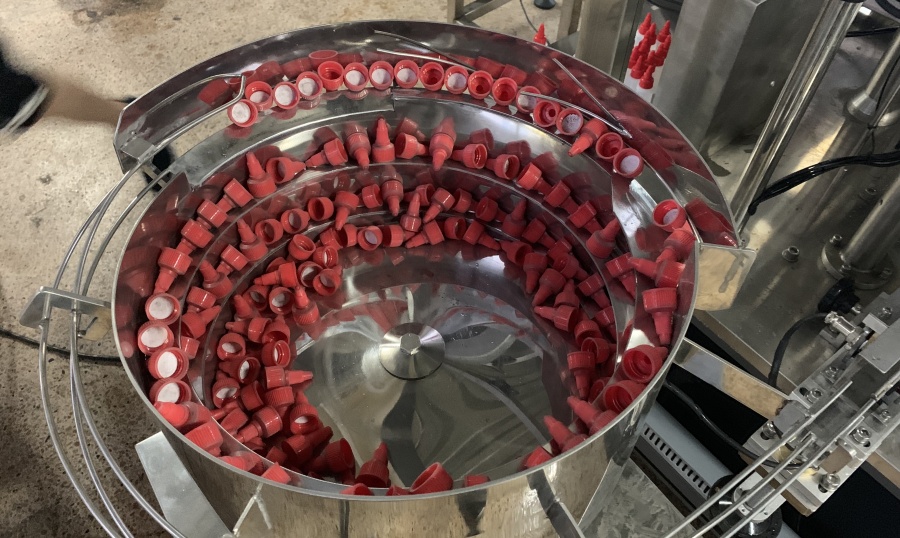

Our automatic gland system, intelligent positioning, and dual-mode gland crimping result in a pass rate of 99.95%.
How Does Perfume Filling Machine Work
- Step 1. Bottle Loading: Empty bottles are automatically fed via a conveyor belt or manually placed on the filling station.
- Step 2. Bottle Positioning: Sensors or mechanical guides align bottles precisely under filling nozzles.
- Step 3. Liquid Filling: Pump/piston system draws perfume from the tank and dispenses preset volumes (1 mL-500 mL at±0.5% accuracy).
- Step 4. Anti-Drip Retraction & Cleaning: Nozzles retract with drip-free technology, while the optional UV/steam sterilization step maintains hygiene.
- Step 5. Capping Integration: Filled bottles move to the capping station for screw-on or snap caps (semi-and fully automatic options).
- Step 6. Quality Check: Weight sensors or vision systems verify fill levels and seal integrity.
- Step 7. Output: Finished products exit via conveyor for labeling/packaging.
FAQ
Our machines are compatible with glass, plastic, crystal and other materials, with customized solutions available for special-shaped bottles.
Standard changeovers complete within 10 minutes with parameter memory, while premium models enable tool-free quick switching.
Constructed with 316 stainless steel featuring CIP cleaning systems and GMP compliance, it ensures sanitary production.
Standard configurations include underfill/missing cap detection with optional vision inspection systems for comprehensive QC.
✔ Alcohol-based perfumes
✔ Oil-based fragrances
✔ Essential oils & roll-ons
✔ Aerosol & spray perfumes
✅ High Accuracy (±0.5% volume tolerance)
✅ No Spillage (leak-proof nozzles)
✅ Hygienic (stainless steel, anti-drip)
✅ Customizable (adjusts for bottle shapes/sizes)
✅ Fast Production (50-200+ bottles/minute)
Yes! Our machines support:
Round, square, or oval bottles
Various neck sizes with our adjustable clamps
Glass, plastic, or metal containers
You can find more details on our custom services page.
5 mL-250 mL

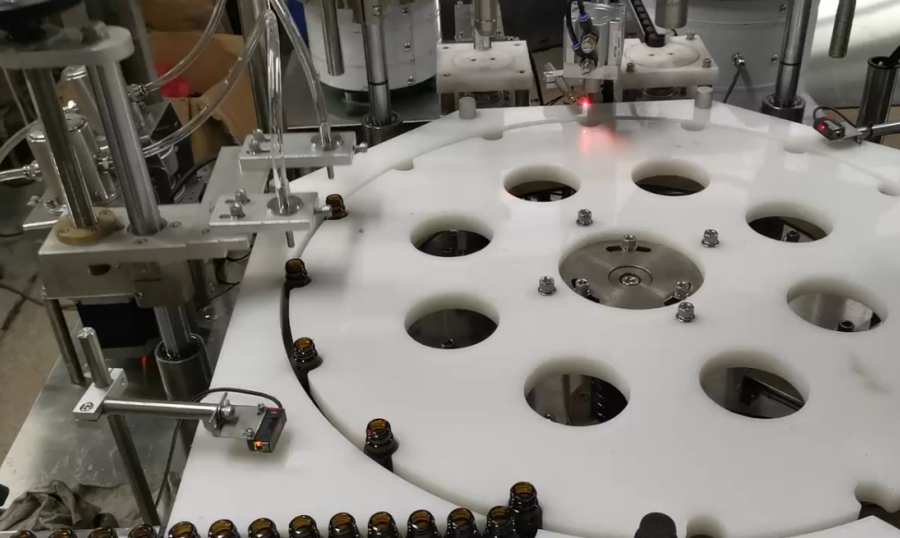

Anti-corrosion filling nozzles ensure hygienic contact with fragrances.
Stainless Steel Nozzles
