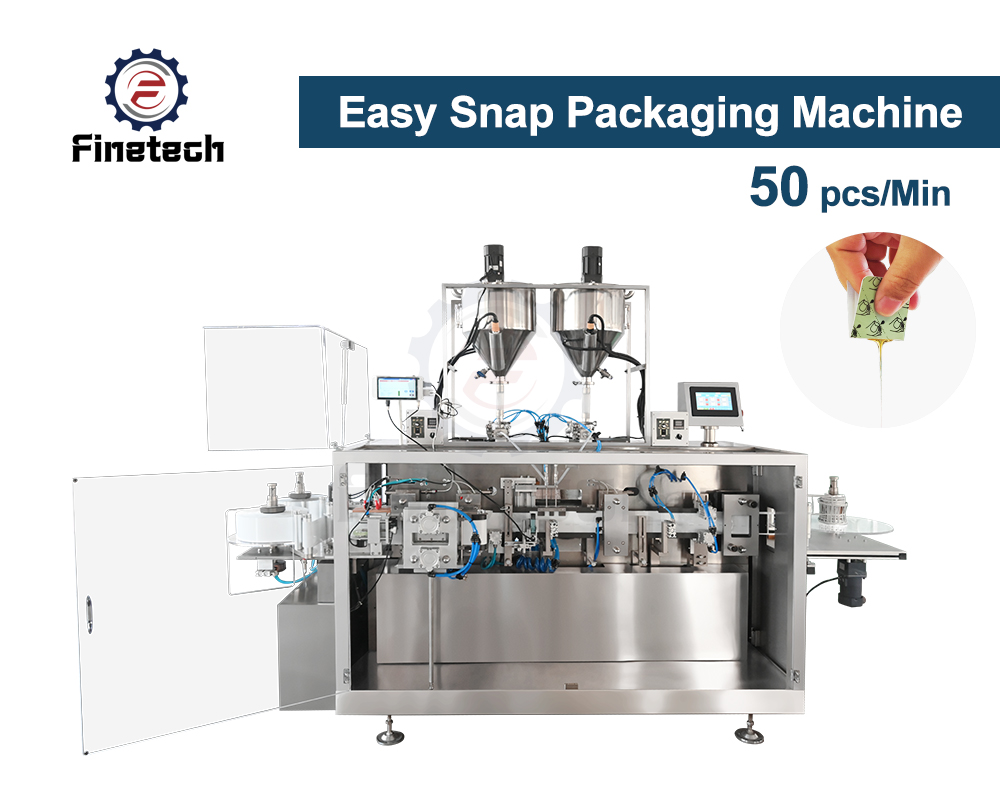

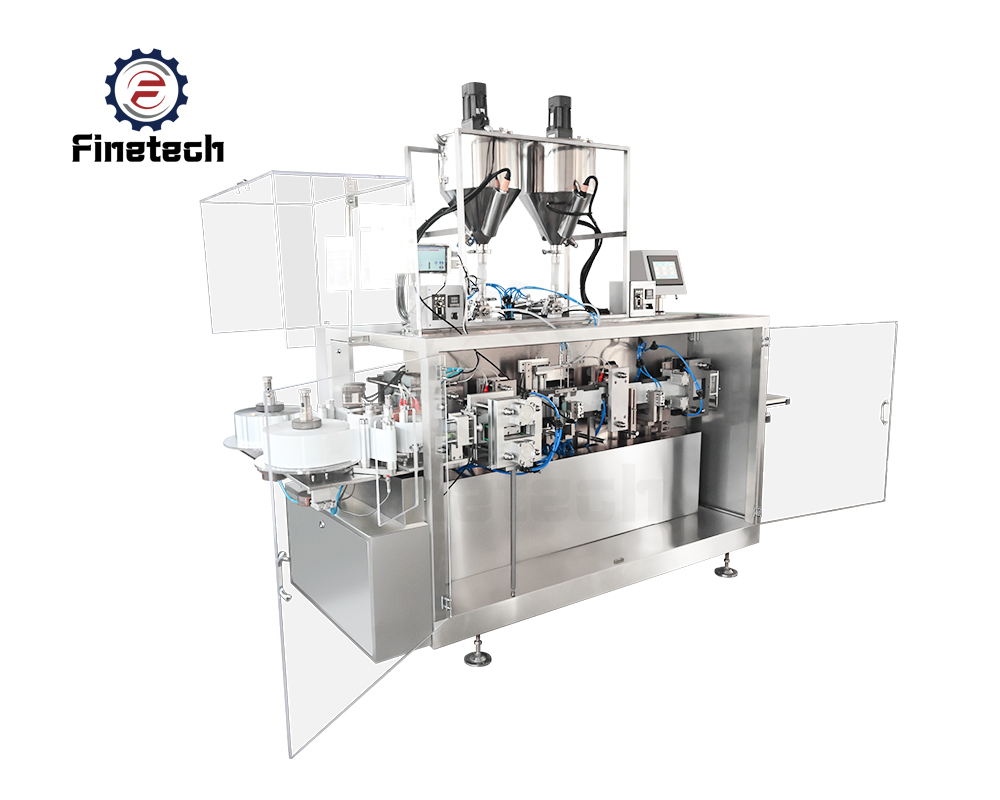

Easy Snap Packaging Machine
The Automatic Easy Snap Packaging Machine is designed for high-speed filling and sealing of single-dose liquid, paste, and cream products. It is suitable for applications such as cosmetics, pharmaceuticals, food products, serums, and hand sanitizers.
This machine supports a filling range from 1 ml to 30 ml (customizable). Built with 304/316L stainless steel and equipped with a PLC + touch screen control system, it is designed for continuous production with stable performance and easy operation.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application Card Types
Reviews No reviews yet
High-Speed Production Output: The machine can produce around 90 to 320 pieces per minute, depending on lane configuration, which makes it suitable for large-scale production.
Fully Automatic Process: Combines feeding, filling, sealing, coding, cutting, and counting in a continuous workflow to minimize human intervention and optimize efficiency.
Suitable for Multiple Material Types: Compatible with composite, aluminum-plastic, and food-grade films, suitable for a wide range of packaging applications.
Stable Operation with Low Noise: The machine runs smoothly during continuous production, with reduced vibration and noise, making it suitable for long working hours.
Compact Design: Measuring approximately 3000 × 2000 × 1800 mm, it fits seamlessly into production lines without occupying excessive space.
| Item | Specification |
| Machine Name: | Automatic Easy Snap Packaging Machine |
| Applicable Products: | Liquid / Paste / Cream (cosmetics, pharmaceuticals, food, hand sanitizer, serum, etc.) |

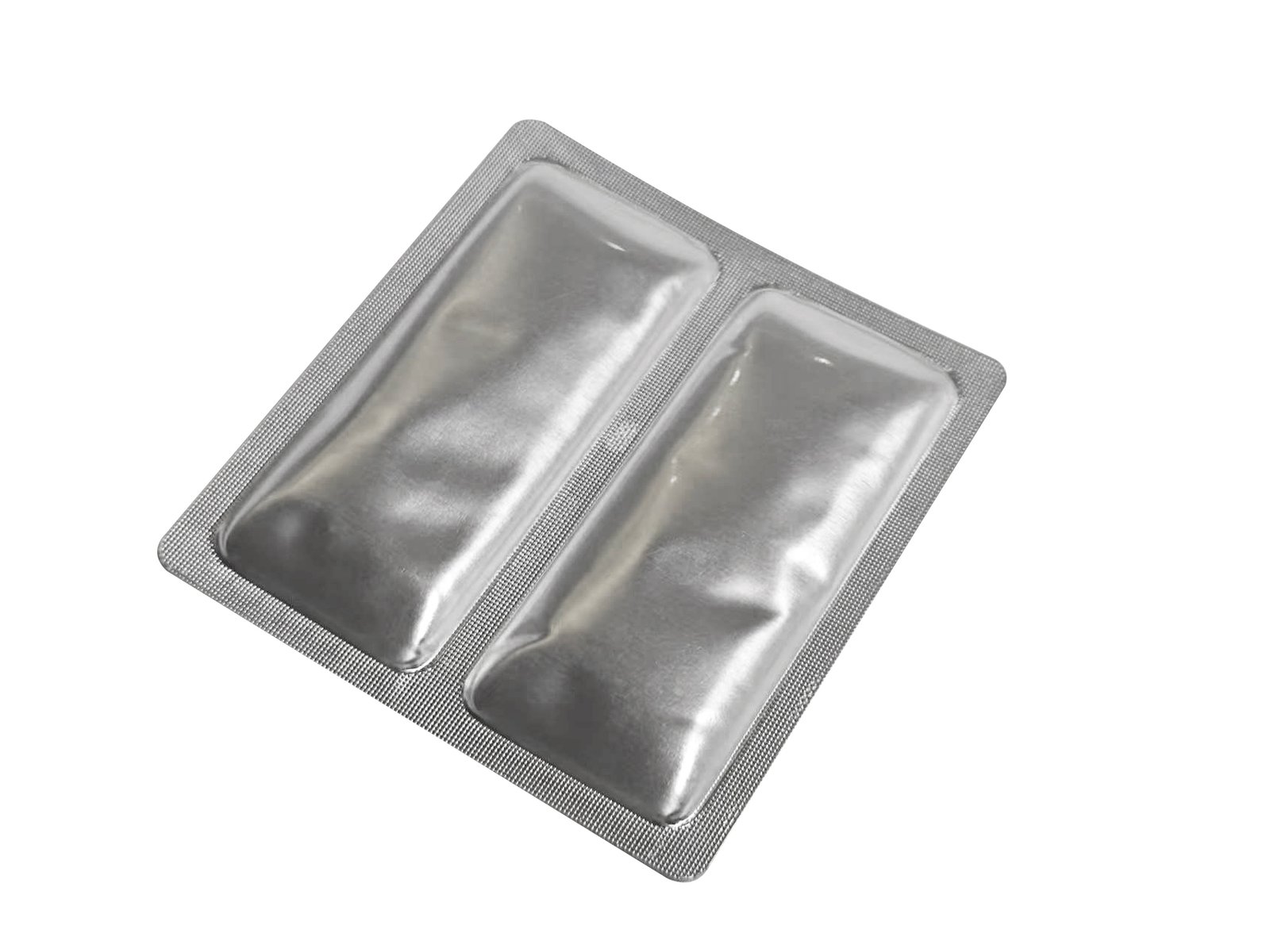

| Packaging Type: | Easy Snap single-dose capsule/pod |
| Filling Volume: | 1ml – 30ml (customizable) |
| Filling Accuracy: | ±1% |
| Production Speed: | 90 – 320 pcs/min (depending on model & lanes) |
| Packaging Material: | Composite film, aluminum-plastic film, food grade film |

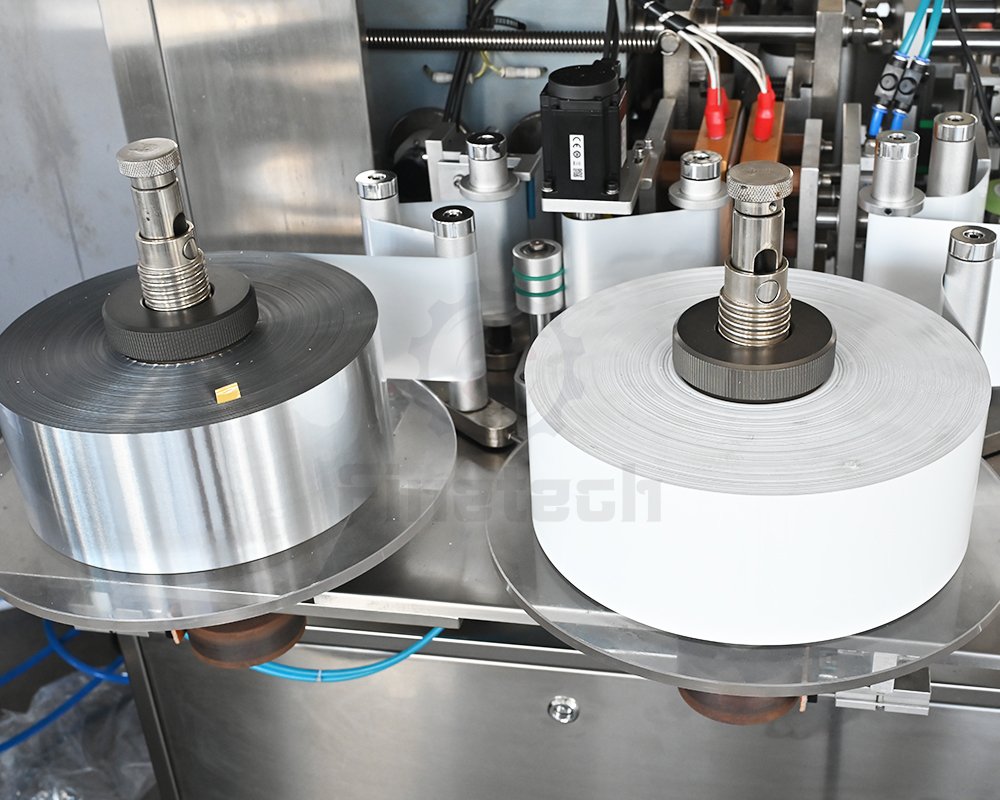

| Film Reel Diameter: | Max φ600–700mm |

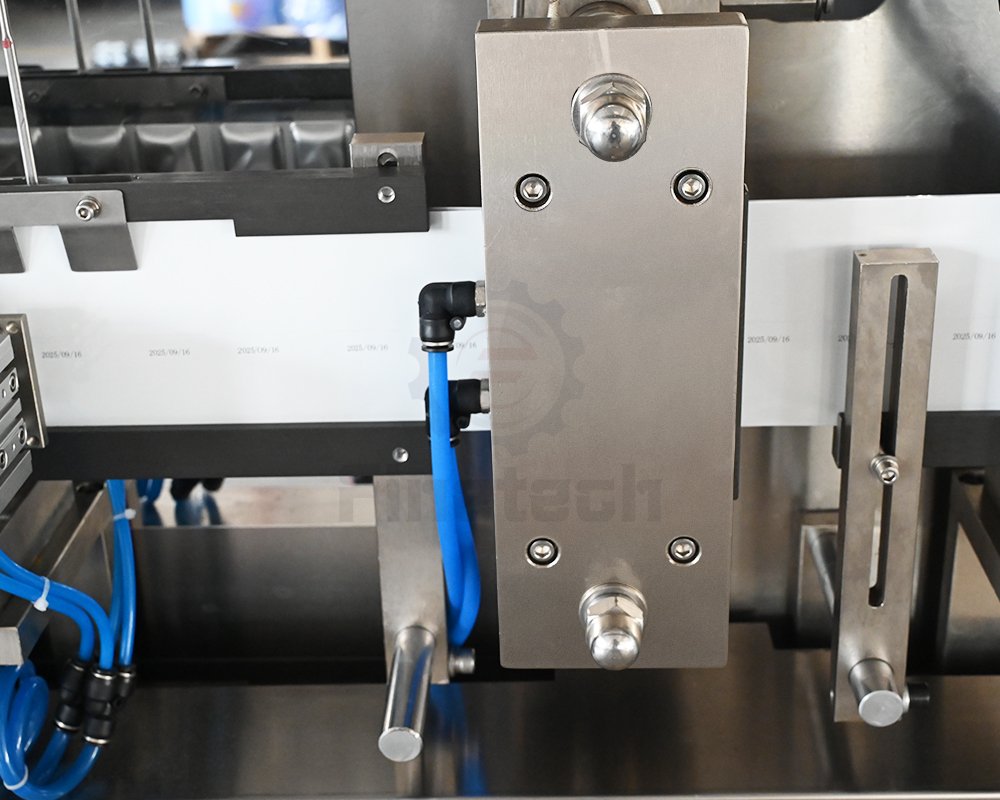

| Sealing Type: | Heat sealing (constant temperature control) |
| Sealing Performance: | Stable, no leakage, high sealing strength |
| Machine Material: | Main body: Stainless Steel 304 / 316L |
| Power Supply: | 220V/380V, 50/60Hz (customizable) |
| Total Power: | 3kW – 28kW |
| Air Pressure: | 0.6–0.8 MPa |
| Air Consumption: | 0.4–0.6 m3/min |

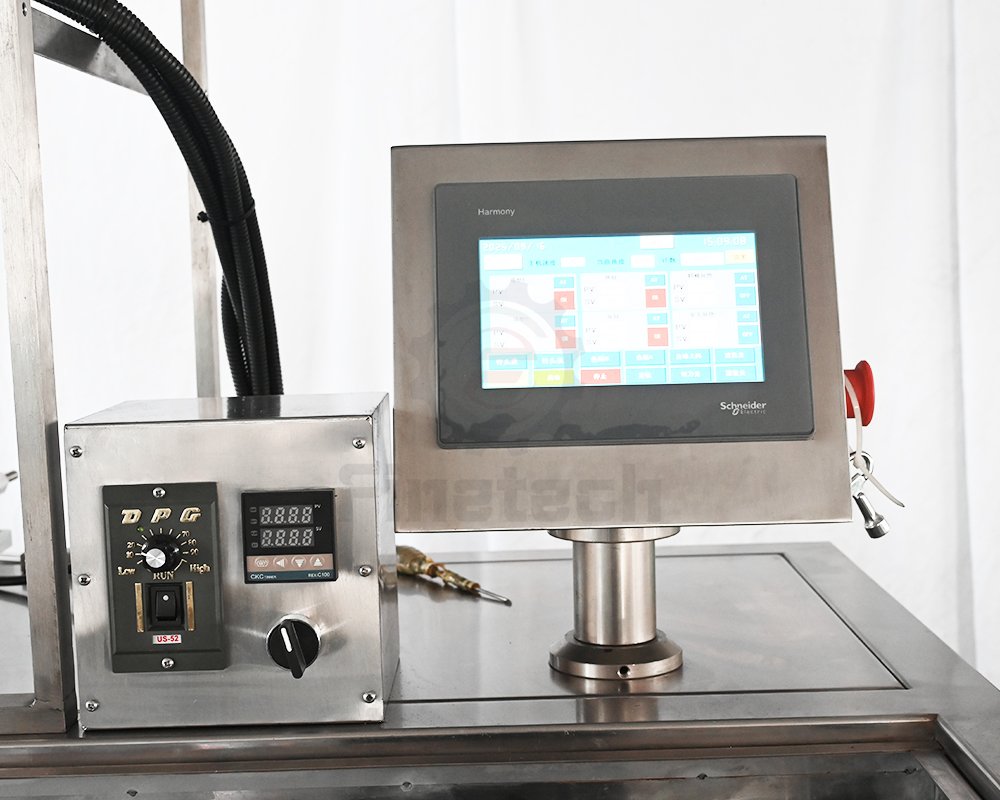

| Control System: | PLC + Touch Screen HMI |
| Safety Standard: | CE, GMP, Food Grade |
| Function: | Auto film feeding → filling → sealing → coding → cutting → counting |
| Features: | Easy format change, low noise, stable operation, easy cleaning |
| Dimension (L×W×H): | Customizable (common: 3000×2000×1800mm) |
| Weight: | About 1500–2800kg |
- Food: honey, ketchup, soy sauce, syrup, coffee concentrate, energy gels
- Cosmetics: serum, lotion, cream, mouthwash, perfume samples
- Pharma/Medical: sanitizer, medical gels, topical solutions
- Industrial: small-dose chemicals, lubricants
- Pack dimensions: 40×50, 40×80, 55×70, 60×100 mm
- Fill volume: 1–12 ml (depends on viscosity)
- Speed: up to 90 packs/min (3-lane Modena model)
- Peristaltic pump: hygiene, low/medium viscosity, frequent changeovers (food/cosmetics)
- Piston pump: high viscosity, larger doses (thick creams, gels)Both offer ±1–2% filling accuracy & anti-drip nozzles.
- Leaky: temp too low / pressure too short → increase heat/dwell time
- Burnt: temp too high / time too long → lower heat/time
- Dirty seal bars: clean with alcohol (power off)
- Worn silicone strips: replace
- Seal belts/strips: 1–3 months (depends on speed/film)
- Cutting blades: 2–6 months
- Pump parts: 3–12 months (peristaltic tubes faster)
~15–30 days (custom); ~3 days (stock).
Most suppliers offer product testing with your material/film to validate speed, seals, accuracy before purchase.
