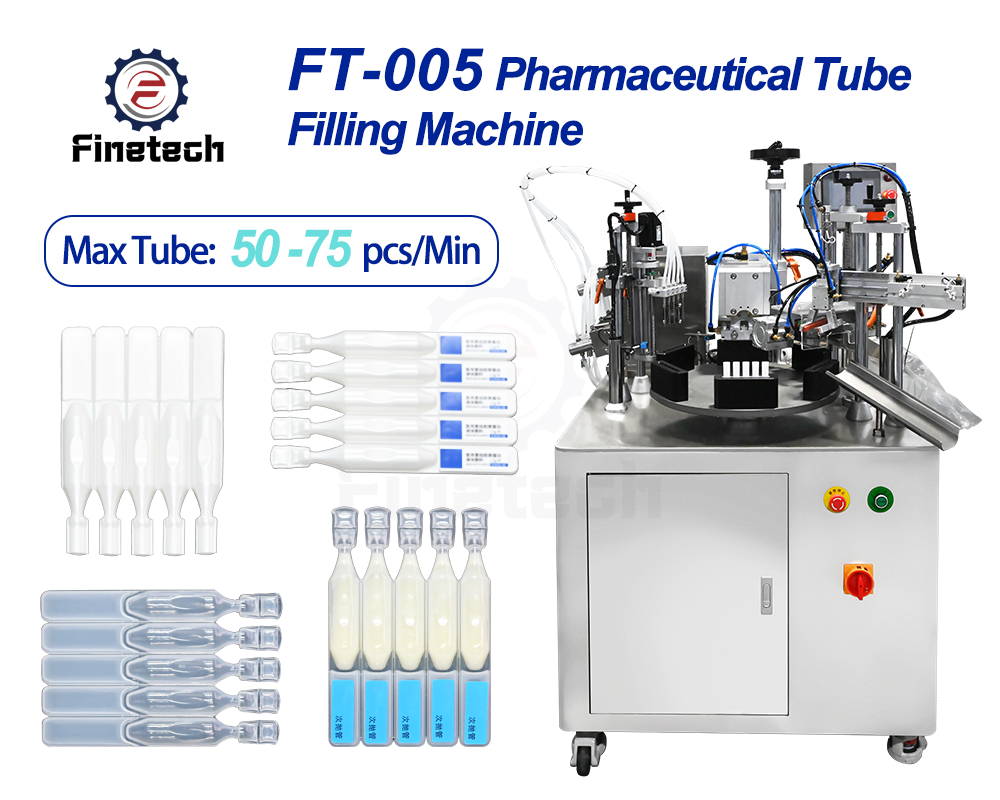

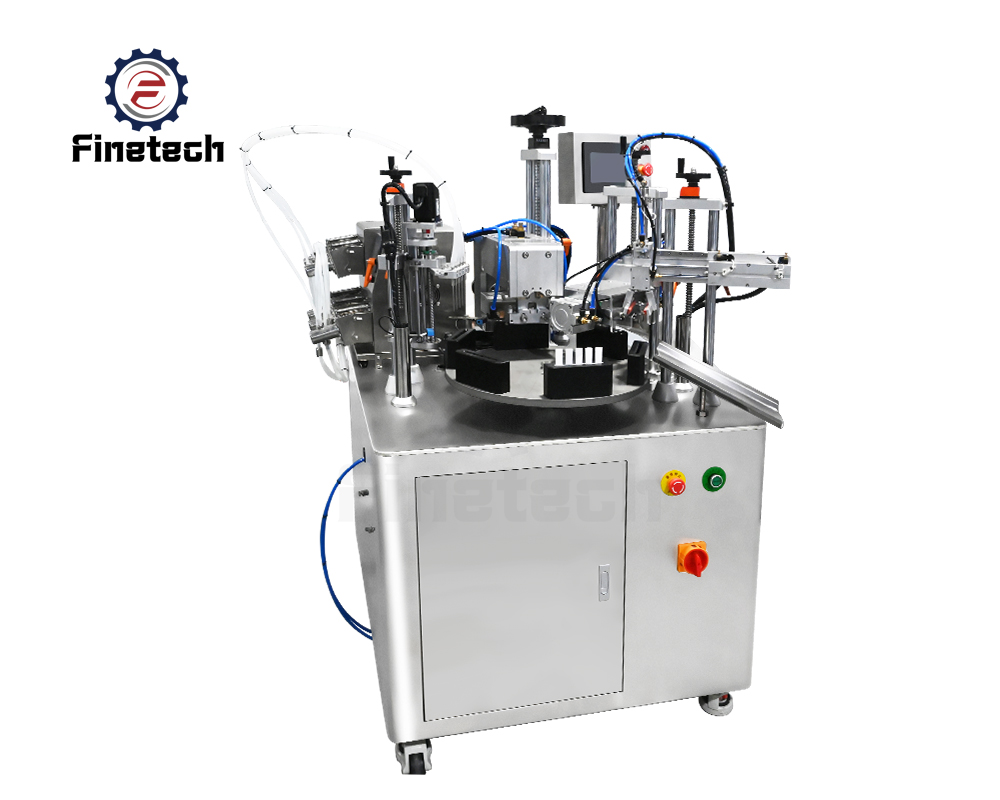

FT-005 Pharmaceutical Tube Filling Machine
The FT-005 Pharmaceutical Tube Filling Machine is designed for filling and sealing mono-dose strip tubes and plastic ampoules.
This machine is mainly used for small-volume products such as oral liquids, serums, eye drops, gels, and sample doses. The output of this tube filling machine is around 50 to 75 pcs per minute. Due to its compactness, this setup is widely used for unit-dose packaging.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data

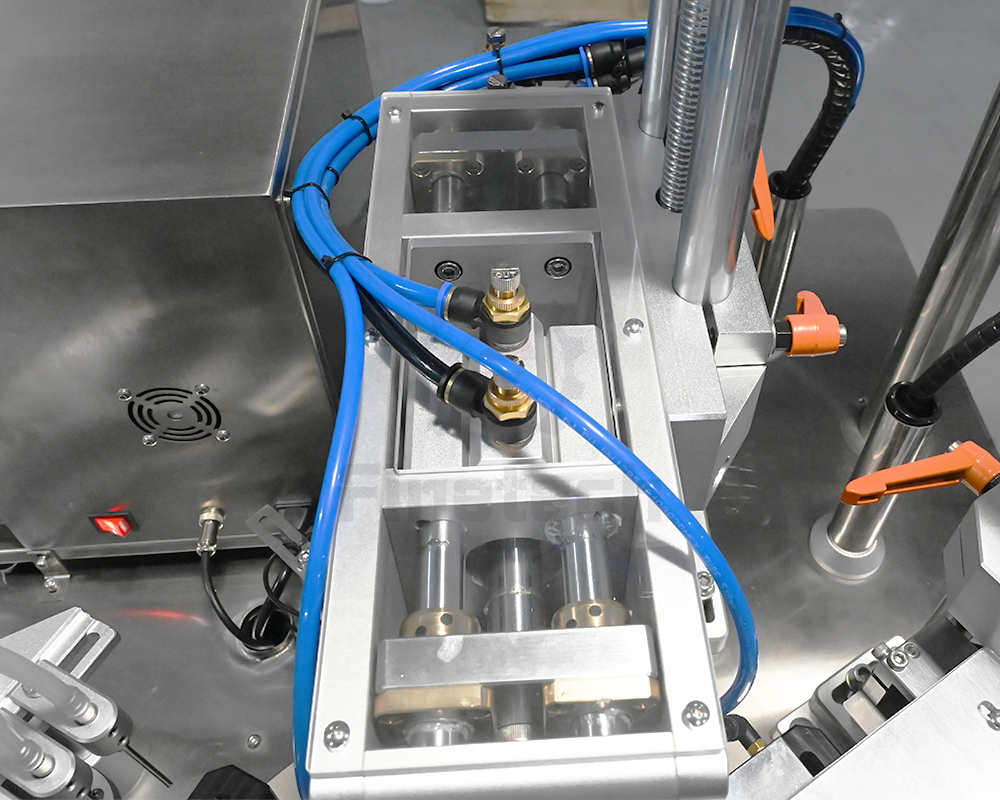

Machine Details
FAQ
Application Tube Types
Reviews No reviews yet
- High Precision Filling: Designed for small-dose applications, this machine maintains accurate filling levels, which is important for pharmaceutical and unit-dose products.
- Faster Multi-Tube Production: With its multi-head filling system, multiple tubes can be filled at the same time. The process helps improve production efficiency.
- Easy Settings Control: The PLC touch screen allows quick adjustment of filling volume and operation settings. It makes it easier to switch between different products or batch sizes.
- Suitable for Mono-Dose Packaging: Specifically created for small-volume formats like 1 ml to 10 ml, commonly used for oral liquids, serums, and sample products.
- Hygienic and Strong Build: The stainless steel body supports clean production conditions and is suitable for industries that require high hygiene standards.
| Item | Technical Specifications | Details / Options |
| Model: | ZHF-100YC (Auto) / Semi-Auto | High-Speed Automatic |
| Production Capacity: | 60–80 tubes/min (3600–4800 tubes/h) | Adjustable via VFD |
| Filling Volume: | 2–250 ml | 5–500 ml (customizable) |
| Filling Accuracy: | ≤±0.5%–±1% | High-precision piston pump |
| Tube Diameter: | φ10–55 mm | φ10–42 mm (standard) |
| Tube Length: | 50–220 mm | 50–250 mm (customizable) |
| Tube Material: | Plastic, Aluminum, Laminated | All pharmaceutical-grade tubes |
| Sealing Type: | Internal Heating + Ultrasonic | Hot Melt, Folding, Coding |
| Control System: | PLC + Touch Screen (HMI) | Siemens / Mitsubishi |
| Motor Power: | 1.5 kW (Main) | 2.0–5.0 kW (total) |
| Heating Power: | 3 kW (Sealing) | 6 kW (high-speed) |
| Air Supply: | 0.5–0.7 MPa | 0.25–0.3 m³/min |
| Power Supply: | 220V/380V, 50/60Hz | Custom voltage available |
| Dimensions (L×W×H): | 2200×1100×1800 mm | 2000–3200×1000–2200 mm |
| Net Weight: | 900–1200 kg | 450 kg (small) |
| Material: | AISI 304/316L Stainless Steel | All product-contact parts |
| Features: | Auto Tube Feeding, Orientation, Mark Detection, Cleaning (Optional), Filling, Sealing, Date Coding, Cutting, Discharge | GMP design, easy cleaning |
Mainly used for pharmaceutical ointments, creams, gels, pastes, lotions, medical lubricants, and other viscous or semi-fluid materials.
Plastic tubes, laminated tubes, and aluminum tubes (different sealing methods required).
Semi-automatic: 300–1200 tubes/h.
Automatic: 3600–6000 tubes/h (60–100 tubes/min), depending on model and filling volume.
Generally ±0.5%~±1%, high-precision piston pump ensures stable dosing.
Yes, SUS316L is standard for product-contact parts.
Standard: φ10–55 mm. Tube length: 50–220 mm.
Yes, CE, ISO, GMP documentation available for customs clearance.
