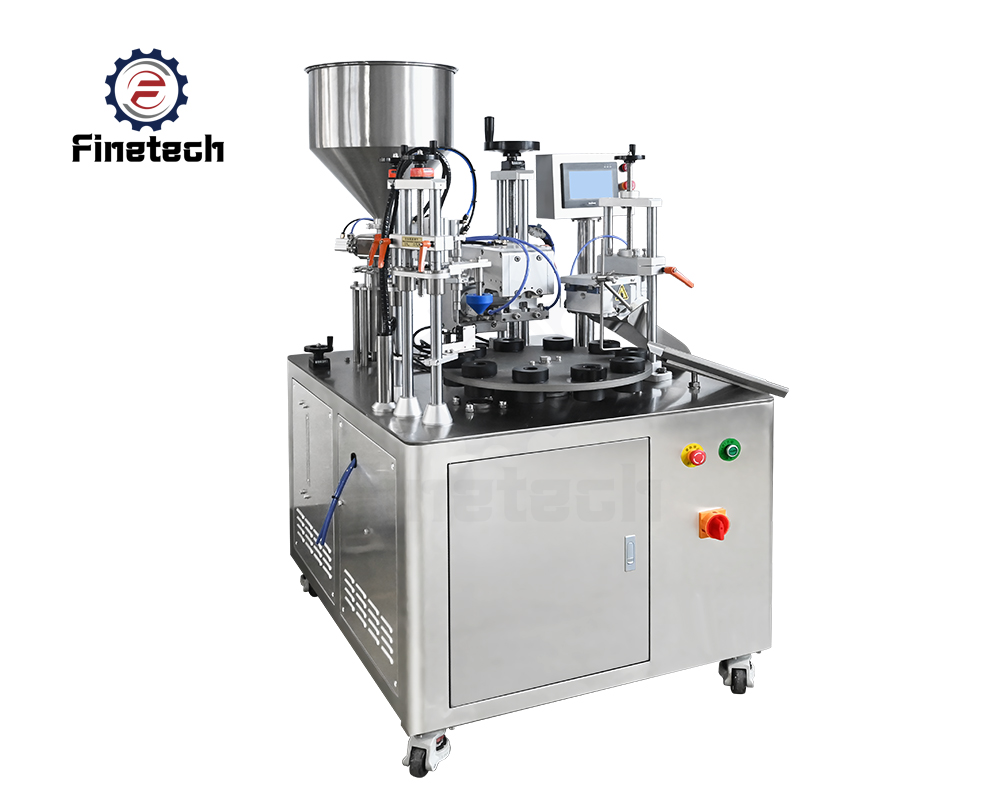

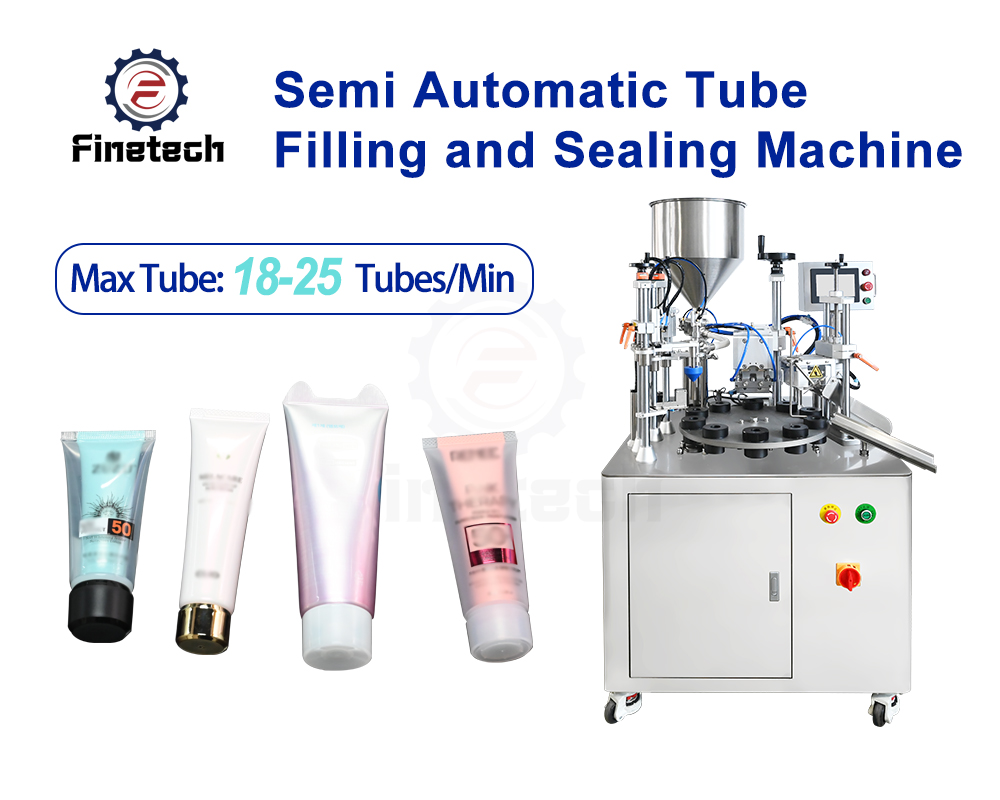

FT-09A Semi Automatic Tube Filling and Sealing Machine
The FT-09 Semi-Automatic Tube Filling and Sealing Machine is designed to fill and seal plastic and laminated tubes for creams, gels, ointments, and pastes.
This model supports a filling range from 6 ml to 250 ml. It can handle around 18 to 25 tubes per minute, depending on material type and operator speed. Moreover, filling accuracy is maintained at around ±1%.
As for tube compatibility, it ranges from 16 mm to 50 mm in diameter and up to 210 mm in length.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application Tube Types
Reviews No reviews yet
Easy to Control: This semi-automatic machine uses a rotary system with adjustable filling volume (6 ml to 250 ml). It allows operators to control output and reduce manual errors.
Consistent Filling Every Time: Designed to maintain uniform filling across all tubes, this helps reduce product waste and keeps your batches consistent.
Compact and Space-Saving: Requires minimal floor space ( approx. 1100 x 800 x 1600 mm) and can fit easily into existing production areas.
Reduces Manual Work: Combines filling and sealing into a single workflow, lowering operator effort compared to manual processes.
Fast Production Speed: The FT-09 semi-automatic tube filling and sealing machine handles around 18 to 25 tubes per minute, depending on product type.
| Parameter | Details |
| Model: | Semi-Auto TFS Series (Generic) |
| Applicable Tube Materials: | Plastic (PE, PP), Laminated (Aluminum-plastic), Aluminum |
| Tube Diameter: | 10–50 mm (customizable up to 60 mm) |
| Tube Length: | 50–220 mm (customizable 20–250 mm) |
| Filling Volume: | 5–500 ml (common ranges: 6–60, 10–120, 25–250, 50–500 ml) |
| Filling Accuracy: | ±0.5% – ±1% |
| Filling Method: | Pneumatic piston pump / Servo-driven piston |
| Output Capacity: | 10–35 tubes/min (depending on tube size & fill volume) |
| Sealing Type: | Ultrasonic sealing (20 kHz) / Hot-air heating sealing |
| Sealing Patterns: | Straight, Serrated, Embossed (date code optional) |
| Hopper Capacity: | 35–45 L (heating & mixing optional) |
| Control System: | PLC + Touch Screen HMI |
| Power Supply: | AC 220V, 1-phase, 50/60 Hz |
| Total Power: | 2.0–4.0 kW |
| Air Supply: | 0.6–0.8 MPa, 0.2–0.3 m³/min |
| Dimensions (L×W×H): | Approx. 1100×850×2000 mm |
| Net Weight: | Approx. 300 kg |
| Material Contact Parts: | SUS 304 / 316 Stainless Steel (GMP compliant) |
| Features: | Manual tube loading, auto-positioning, filling, sealing, trimming, date coding |
Plastic tubes (PE, PP), laminated tubes (aluminum-plastic), cosmetic soft tubes. Aluminum tubes are usually not suitable for ultrasonic sealing.
All kinds of pastes, creams, gels, ointments, lotions, adhesives, hair dye, toothpaste, honey, sauces, etc.
Yes. For low-viscosity liquids, anti-dripping nozzle is suggested. For high-viscosity or paste material, piston filling ensures stable accuracy.
Standard: 5–500ml. Custom ranges (1–1000ml) are available.
±0.5% – ±1% under normal conditions.
Yes. Date coding (batch, expiry date) is integrated during sealing.
12 months warranty. Lifetime technical support.
Plywood case, waterproof and shockproof, suitable for sea/air shipment.
