FTW-50-100-150-200-300-500-1000 Cone Mixer

FTW Series Cone Mixer

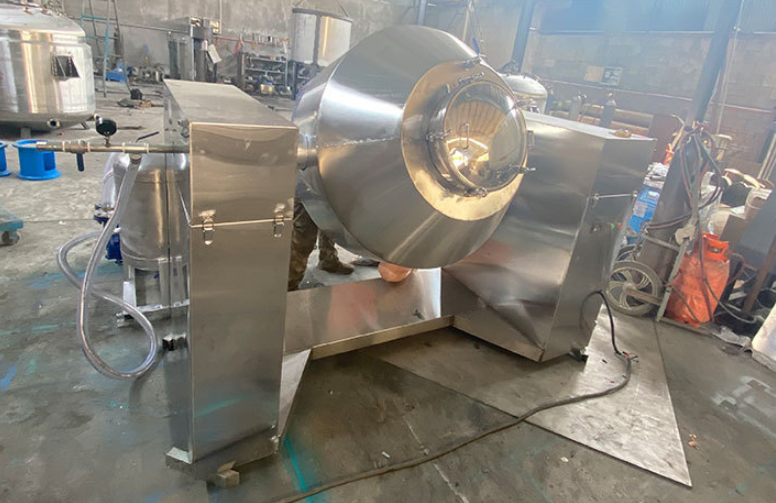

The Cone Mixer consists of a frame, turnover hopper, lifting system, rotary system, and electrical control system. In a three-dimensional space in a closed hopper, powder materials are turned forcefully and diffused in a contraction effect to mix them. The mixing uniformity rate reaches 99% or more, with a residual amount of less than 0.1%, in full compliance with GMP standards. The Cone Mixer can be used to production of tablets, capsules, powders, and nutritional supplements.

Need a Custom Quote?

Or More information About this product? Contact our sales stuff today!

Key Features

Technical Data

1. The machine has fixed double columns, an automatic feeding system, and a mechatronic mixing system. It is easy to operate and set running program.

2. This mixer improved efficiency and avoids cross-contamination.

3. The entire mixing process is completed in a closed barrel, with a mixing uniformity rate over 99%, a volume loading system reaches 80%, and a 316L inner wall, 304 body.

4. The Cone Mixer is compatible with volume ranging from 5L to 2,000L and is especially designed for mixing materials of poor fluidity.

5. High mixing efficiency, low energy consumption, easy operation, cleaning, and maintenance.

6. PLC human-machine interface automatic control system with hierarchical management authority, which meets the tracking and traceability requirements of certification processes such as FDA/GMP.

Model	FTW-50	FTW-100	FTW-150	FTW-200	FTW-300	FTW-500	FTW-1000
Total Volume (L)	50	100	150	200	300	500	1000
Maximum Loading Capacity (L)	25	50	75	100	150	350	700
Maximum Loading Weight (kg)	25	50	75	100	150	210	420
Motor Power (kW)	0.75	0.75	1.1	1.1	1.5	2.2	4
