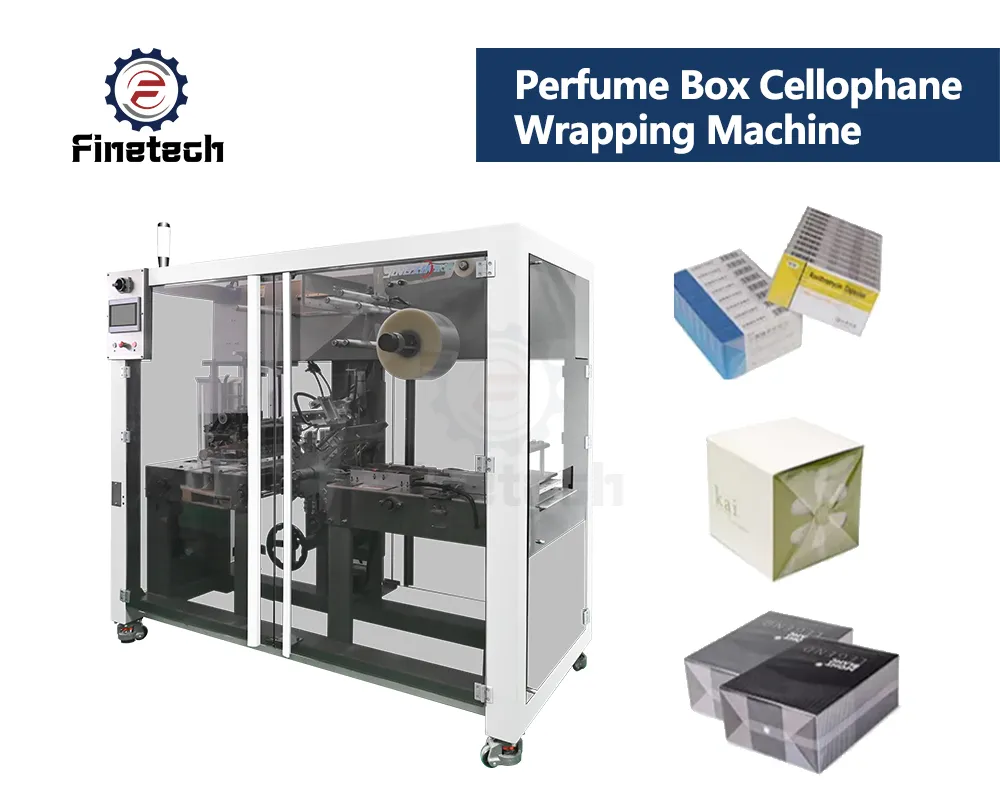

Perfume Box Cellophane Wrapping Machine
The Perfume Box Cellophane Wrapping Machine is built for a clean, premium outer packaging. It helps wrap perfume and cosmetic boxes with a tight, transparent film finish to improve shelf appeal.
Capable of handling 20 to 50 boxes per minute, this machine is ideal for mid-scale production operations. It accommodates perfume boxes, cosmetic cartons, gift boxes, and flat cartons, offering flexible size handling. The wrapping process employs a 3D four-sided sealing method, which creates a secure, moisture-resistant finish for consistent product protection and presentation.
主な特徴
技術データ
機械の詳細
よくある質問
アプリケーション製品タイプ
レビュー まだレビューはありません
- Flexible Carton Size Range: The Standard Model supports carton sizes from 50-150 mm (L), 20-80 mm (W), and 10-60 mm (H). Meanwhile, the High-Speed Model extends this range up to 200 mm (L), 100 mm (W), and 80 mm (H).
- Compatible with Different Cartons: Works with white cardboard, coated paper, and corrugated paper.
- Simple and Easy Operation: The control system is designed for quick setup and adjustment. Operators can switch between product formats without complex reconfiguration.
- 複数のシーリング方法: Both models support adhesive tape sealing and hot melt glue sealing. This allows selection based on packaging standards.
- Stable and Consistent Output: These machines are designed to maintain steady performance during long production runs.
| 技術パラメーター | 標準モデル |
| Wrapping Speed: | 20-50 boxes/min |

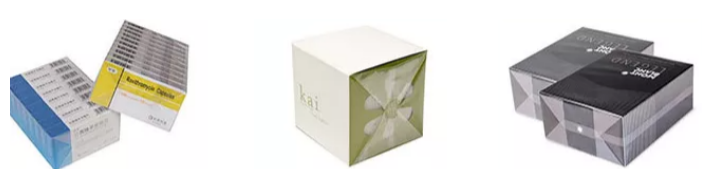

| Applicable Box Type: | Perfume boxes, cosmetic boxes, gift boxes, flat cartons |
| Box Size Range (L×W×H): | 50-200mm × 30-120mm × 10-80mm |
| Packaging Film Material: | BOPP cellophane film, PVC film (0.02-0.035mm) |
| シーリングタイプ： | 3D four-side sealing, anti-counterfeiting tear line optional |
| Heat Sealing Temperature: | 0-200℃ (adjustable, precise PID control) |
| オプション機能： | Tear tape device, counting system, static elimination |
| 電源： | 220V, 50/60Hz, single-phase |
| 総電力: | 2.5-3.0 kW |
Industry solutions include using pre-conditioning systems (degassing and flattening sachets before infeed), positive transfer tooling (combining grippers and guides instead of relying only on vacuum), and static control (using ionizing bars to prevent sticking).
This is a common issue with sachet packing machines upstream.
温度： The sealing temperature might be too low (weak seal) or too high (burning through).
Dirty Jaws: Powder or residue on the sealing jaws prevents a proper seal. Clean them with a soft cloth.
プレッシャー： Ensure the sealing pressure is balanced on both sides.
Maintain humidity between 40-60%, ensure proper machine grounding, and install anti-static ionizing blowers near the hopper or sealing area.
