GMP Automatic Tablet Strip Packing Machine for Solid Dosage Packaging
Finetech supplies tablet strip packaging machines for tablets, capsules, pills, and selected solid products. We match web width, feeder design, seal pattern, product size, line speed, and coding requirements to the planned pack. Models support compact strips and wider production formats. Buyers receive application guidance, commissioning support, operator training, and future format assistance.
What Is a Tablet Strip Packaging Machine?
A tablet strip packaging machine places individual tablets or capsules between two flexible packaging webs. Heated sealing rollers bond the layers around each product and create separate sealed pockets. The web is then coded, perforated, and cut into finished strips. This approach provides compact unit-dose packaging without thermoforming a rigid blister cavity.
主なメリット
Compact Unit-Dose Protection
Each product sits inside a sealed flexible pocket. Suitable foil structures help protect the dose from handling and environmental exposure.
Continuous Packaging Flow
Rotary sealing supports steady feeding and web movement. Coordinated stations reduce repeated manual wrapping and cutting work.

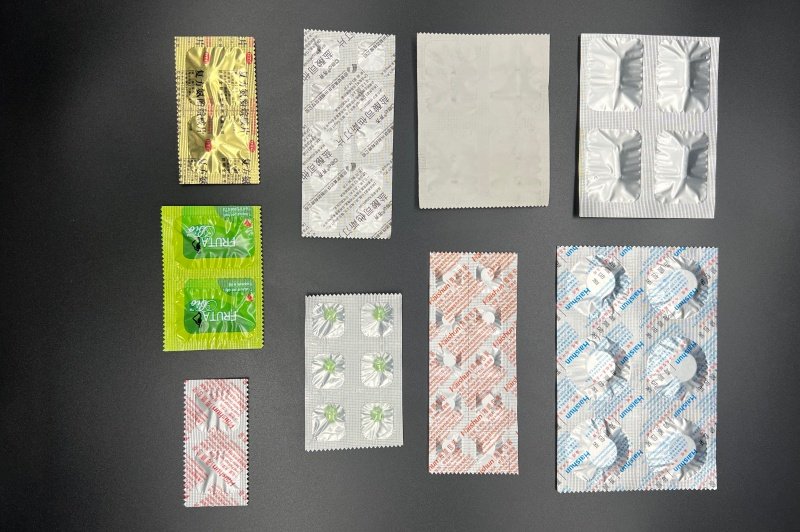

Flexible Strip Layouts
Web width, pocket spacing, and cut length can be configured around the product and required doses per strip.
ファインテックを選ぶ理由
Strip Packaging Configured for the Actual Dose
Good strip packaging begins with the product and material, not the roller alone. Finetech reviews tablet or capsule dimensions, fragility, barrier needs, web structure, seal temperature, strip layout, and target output. We then coordinate feeding, sealing rollers, coding, and cutting for the approved format.
フィネテックの主な強み：
- Product and foil assessment before machine selection
- Custom sealing rollers and strip-layout development
- Feeding solutions for tablets, capsules, and pills
- Commissioning and operator setup guidance
- Ongoing support for tooling and wear components
Different Types of Tablet Strip Packaging Machines

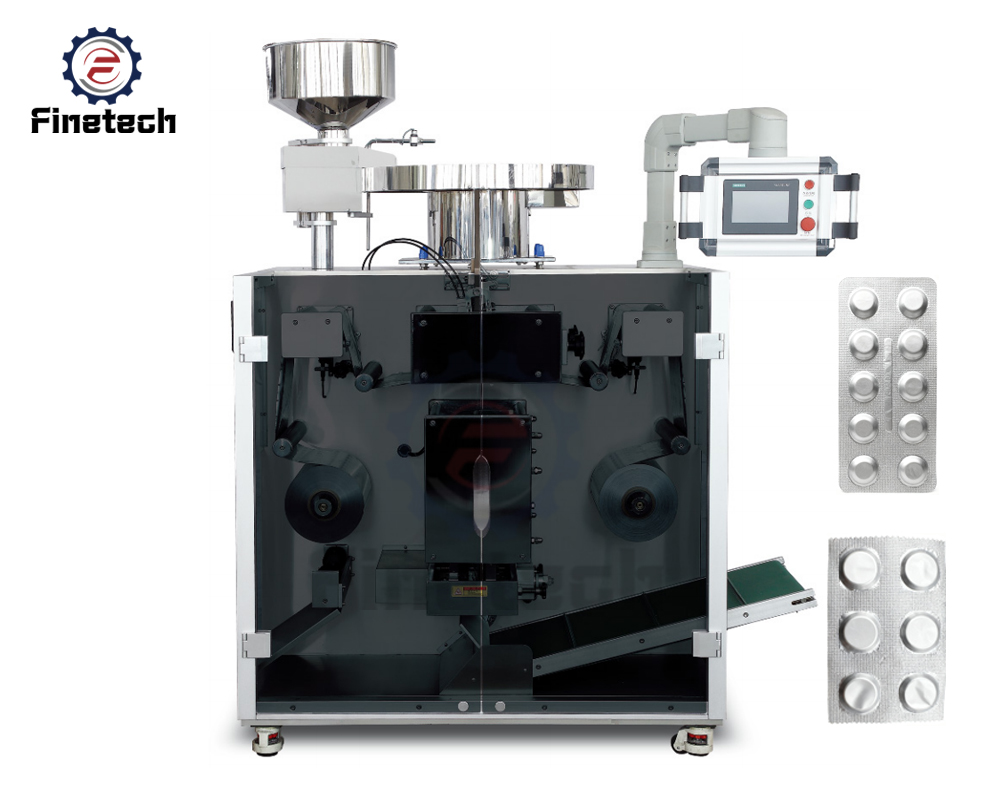

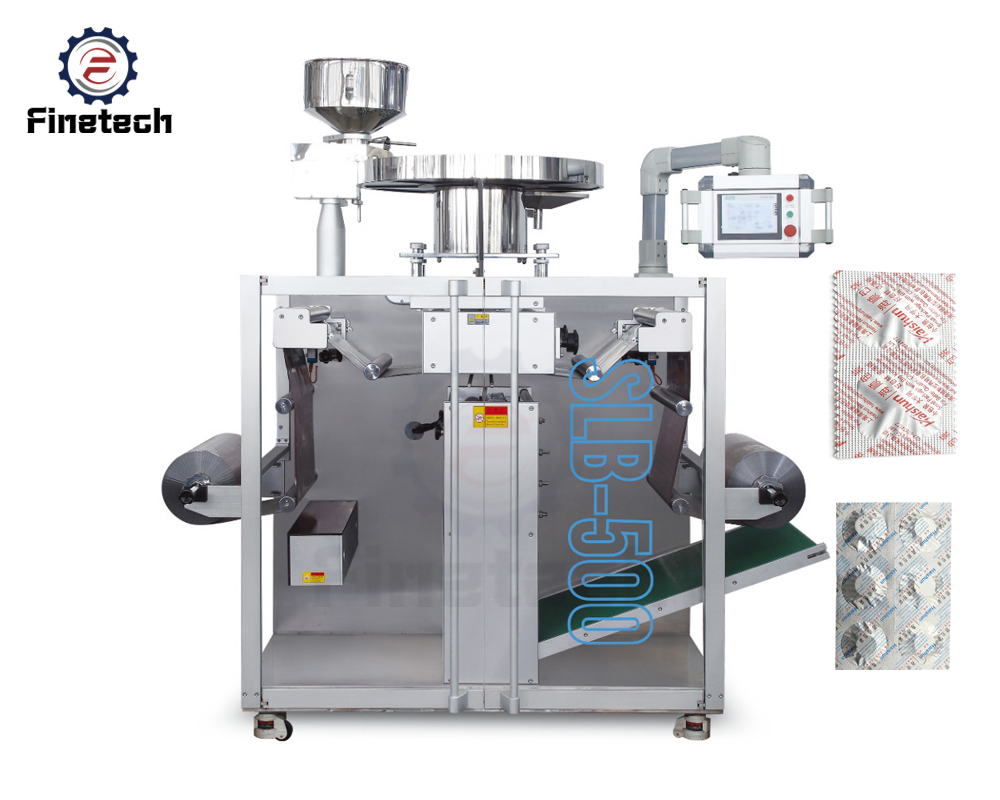

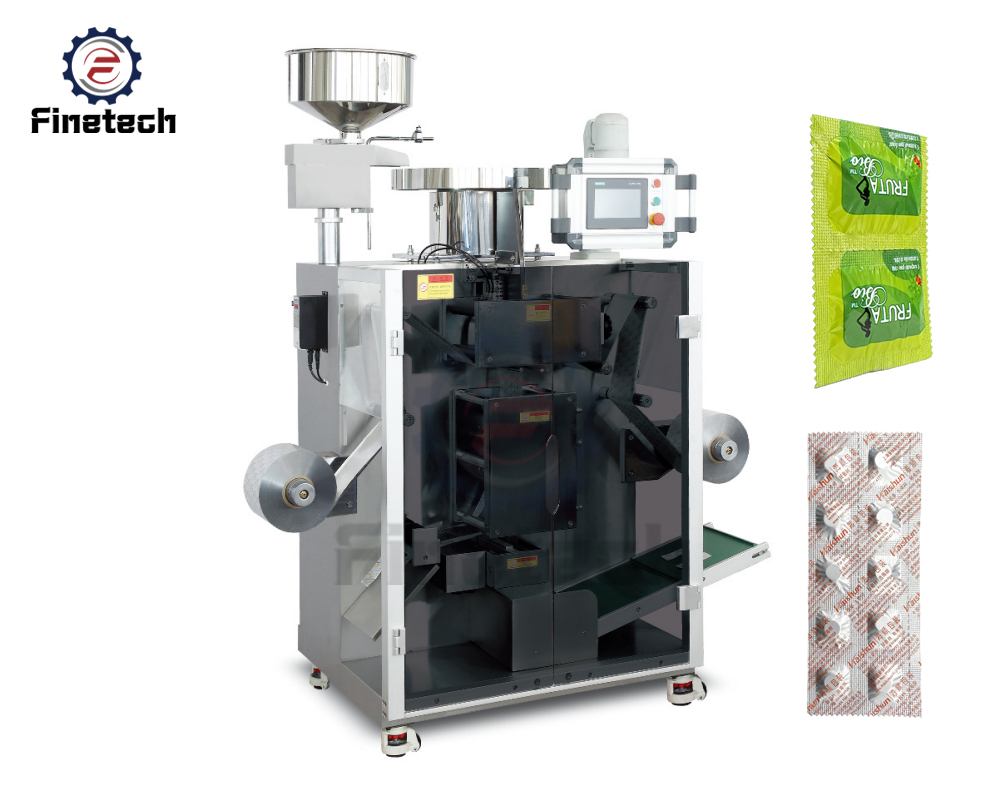

Finetech offers strip packers in web widths from 160 mm to 500 mm, with configurations for different output levels and product sizes. Options can support pharmaceutical PVC structures or aluminium-plastic combined films, standard tablets, hard capsules, soft capsules, and larger chewable products. Model selection depends on strip width, pocket layout, feeder behavior, heat demand, and downstream handling.
興味がある？
We offer equipment for all types of tablet packaging; please submit your inquiry using the button below.
アプリケーション産業
主な特徴

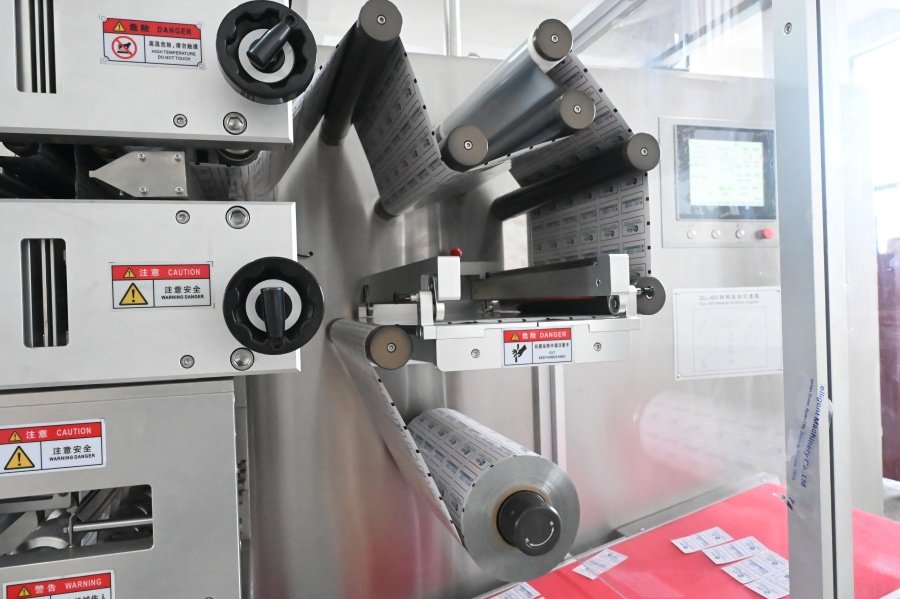

Dual-Web Unwinding
Two packaging webs feed into the machine under controlled tension. Stable unwinding helps prevent wrinkles, drift, and uneven sealing.

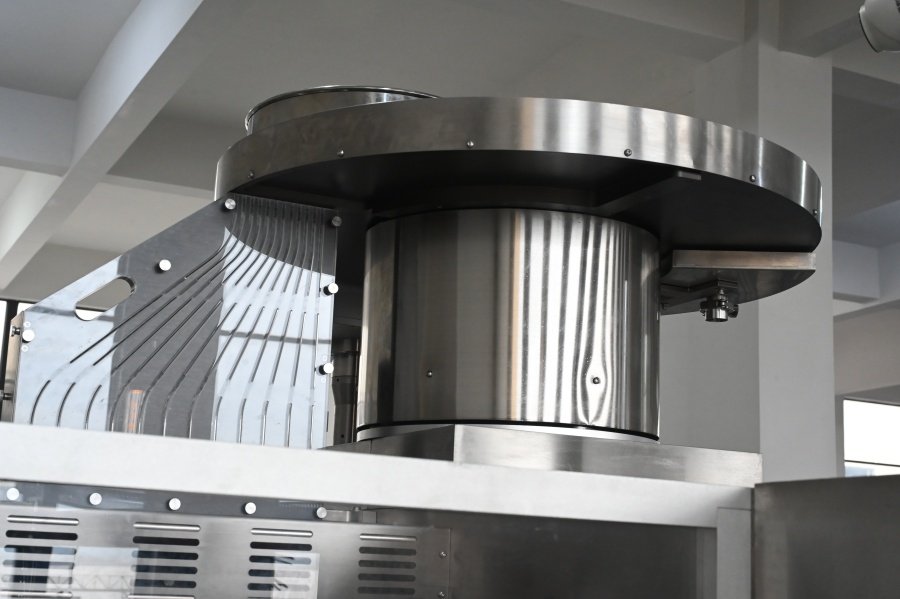

Product-Specific Feeding
Feeders meter tablets or capsules into the roller pockets at the correct interval. The handling method can be adjusted for size and fragility.
Matched Sealing Rollers
Engraved rollers create the pocket pattern and sealed border around each dose. Custom geometry reflects product dimensions and strip layout.
Adjustable Heat and Pressure
Operators set sealing temperature and pressure for the selected web structure. Stable settings support pack integrity without damaging the product.
Controlled Drum Speed
Stepless speed adjustment helps balance output with reliable feeding and sealing. The approved setting should remain within the material's process window.
Flexible Web Widths
Machine models cover narrow and wide packaging materials. The selected width determines the available pocket arrangement and number of lanes.
Integrated Batch Coding
Coding units can add batch numbers, production dates, expiry dates, or other required information in the planned print area.

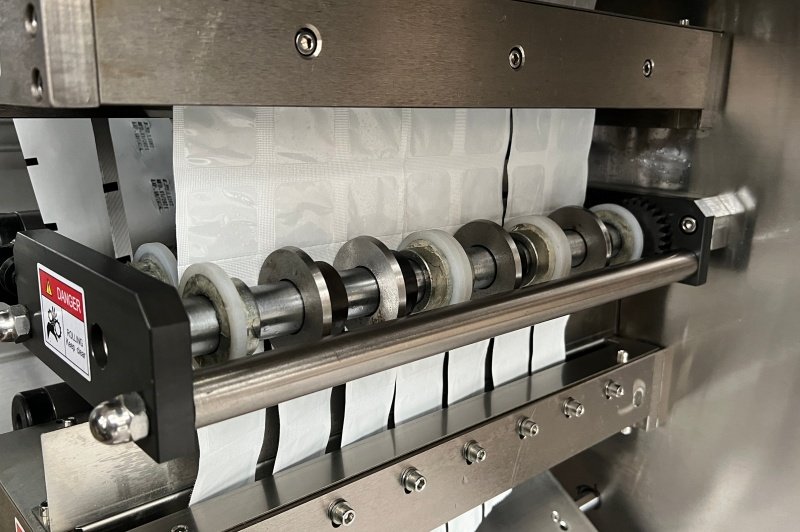

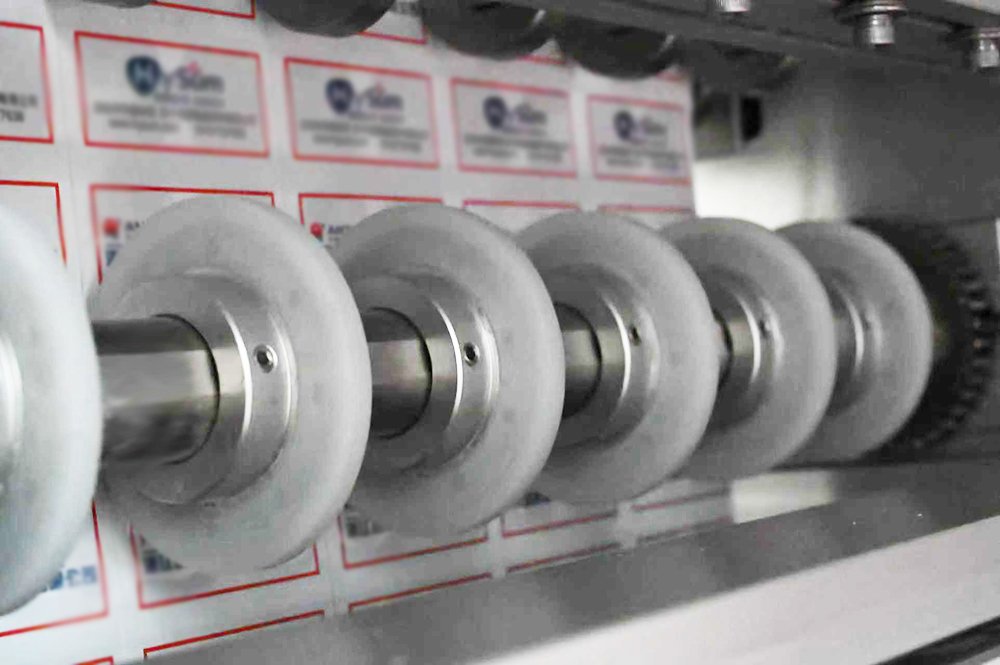

Perforating and Cutting
Coordinated tools create tear lines and divide the sealed web into strips. Accurate cutting supports neat edges and consistent pack length.
Accessible Guarded Construction
Guarded sealing components support safe operation. Accessible web paths and rollers simplify cleaning, inspection, material loading, and planned changeover.
認証
当社のサービス
当社は以下のサービスを提供しています： 操作研修、現場での設置および試運転、ならびに1年間の保守サービス。. 詳細については、以下のリンクをご参照ください。.
お客様の製薬機械に対する、現場での据付および試運転のサポート。.
チームが機械の正しい操作方法を理解できるよう支援するためのオペレーター研修。.
機械の操作およびトラブルシューティングに関するオンライン技術サポート。.
医薬品製造ワークショップおよび生産ライン計画の支援。.
交換用部品： Tablet Punch Mould, Forming Die, Cutting Knife, Feed Roller.
当社は、製造から包装ラインに至るまで、包括的なターンキーソリューションを提供しています。.
We can customize the strip packing machine based on the shape, size, and packaging format of your tablets.
We can integrate other types of packaging machines for your products.
技術データ
Sealing Drum Speed
7-15
回転数
Available Web Widths
160-500
んん
Heating Power Range
3-7
kW
Operating Air Pressure
0.5-0.6
MPa
仕様
| モデル | FLB-160 | FLB-220 | FLB-300 | FLB-400 | FLB-500 | |
| ドラムの速度: | 7～15 r/min rpm（無段階） | |||||
| 梱包寸法: | 160mm | 220mm | 300mm | 400mm | 500mm | |
| 梱包材仕様: | 医療用PVC | 0.05-0.1x160mm | 0.05-0.1x220mm | 0.05～0.1×300mm | 0.05-0.1x400mm | 0.05～0.1×500mm |
| AL-プラスチック複合フィルム | 0.08-0.10x160mm | 0.08-0.10x220mm | 0.08-0.10x300mm | 0.08-0.10x400mm | 0.08-0.10x500mm | |
| リールの穴径 | 70～75mm | |||||
| 電気熱発電: | 1.5kW*2 | 1.8kW*2 | 2.5kW*2 | 3kW*2 | 3.5kW*2 | |
| メインモーター出力: | 0.37kW | 0.75kW | 0.75kW | 0.75kW | サーボドライブ5セット | |
| 空気圧: | 0.5～0.6MPa | |||||
| 空気供給: | ≤0.1m³/分 | |||||
| 全体寸法（長さx幅x高さ） | 1600x850x2000mm | 1600x850x2000mm | 1600x850x2000mm | 1800x1120x2000mm | 1860x1170x2300mm | |
| 重さ： | 800kg | 900kg | 950kg | 1200kg | 1400kg | |
関連技術
よくある質問
Strip packaging seals the product between two flexible webs. Blister packaging normally places it in a separately formed cavity.
Yes, with suitable feeders and sealing rollers. Each product still needs testing for pocket size and handling behavior.
Material options depend on the machine and product. Confirm thickness, heat-seal layer, barrier performance, and reel dimensions before ordering.
The sealing roller pattern reflects product dimensions, lane count, pocket spacing, perforations, and the required doses per strip.
Often yes. Feed height, pocket depth, roller clearance, and sealing conditions should be tested with actual capsules.
Material compatibility, temperature, pressure, speed, surface cleanliness, and roller condition all influence seal performance.
Yes. A compatible coding unit can print approved variable information in a defined area of the moving web.
Uneven tension, poor reel alignment, unsuitable heat, worn guides, or incorrect web tracking can create wrinkles.
Choose speed after confirming feeder reliability, sealing quality, material behavior, product protection, and downstream capacity.
Yes, within the machine’s operating range. Roller tooling, perforation timing, and cutting settings may need adjustment.
Provide product samples, dimensions, desired strip drawing, material details, hourly output, coding needs, and available utilities.
Support can cover installation, commissioning, operator training, troubleshooting, spare parts, and new-format tooling coordination.
