Liquid Capsule Filling Machine

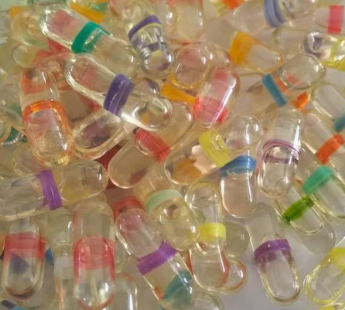

The Liquid Capsule Filling Machine is designed to fill oils, liquid extracts, and viscous solutions into hard capsules with high precision and stability. It handles materials with a viscosity of up to 6000 mPa·s, making it suitable for a wide range of liquid-based formulations.
This machine works with both hard gelatin and HPMC vegetarian capsules, covering sizes from 000# to 5#. Filling volume can be adjusted between 0.15 mL and 2.0 mL using interchangeable pump components for precise control based on product requirements.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Parts Name
FAQ
Application
Reviews No reviews yet
- Scalable Output Options: Standard output reaches 60,000 capsules per hour, while high-speed models can deliver up to 120,000 capsules per hour.
- Multi-Station Configuration: This filling machine comes with 12 stations (standard) and 24 stations (high-speed). More stations help increase throughput while maintaining stable filling performance.
- Consistent Long-Run Operation: Designed for continuous production without frequent interruptions. Moreover, the machine helps maintain workflow stability in manufacturing environments.
- Smooth Capsule Handling Process: Capsules are aligned and positioned accurately before filling, which increases efficiency and reduces the chances of misfills or jams.
- Suitable for Sensitive Formulations: Helps protect liquid ingredients from exposure during filling. Combined with proper sealing, it improves product shelf life.
| Applicable Capsules: | Hard gelatin & HPMC vegetarian capsules, Sizes 000#-5# |
| Filling Materials: | Oils, liquid extracts, solutions, viscous liquids (≤6000 mPa·s) |

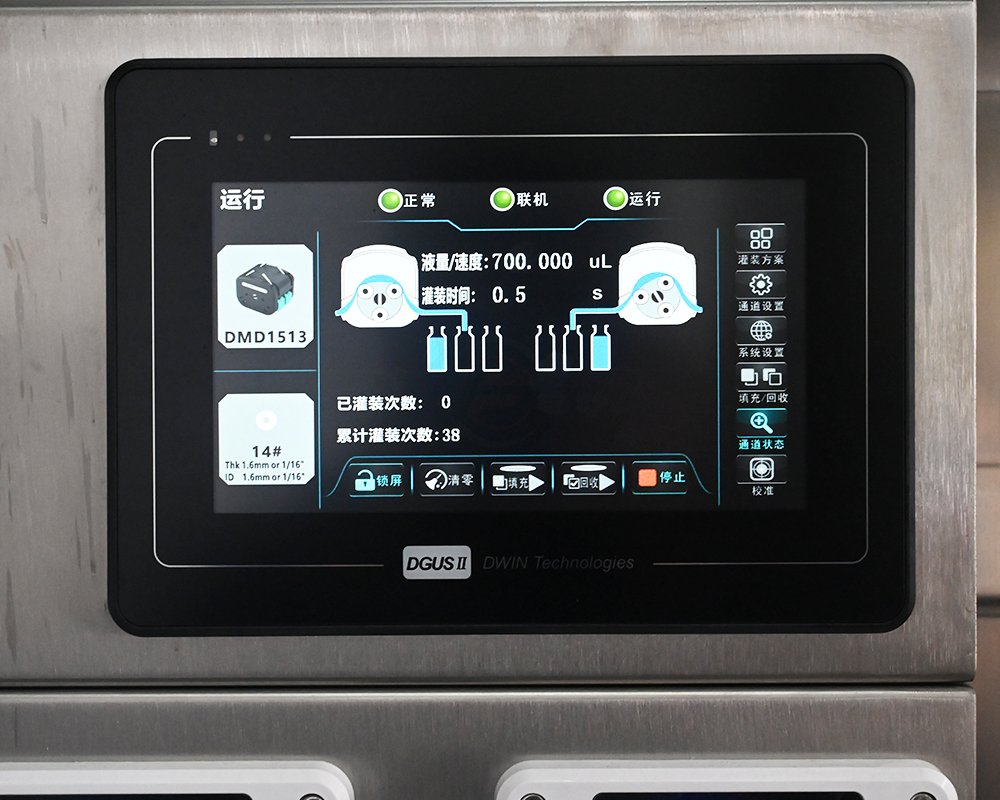

| Filling Volume: | 0.15–2.0ml (adjustable via pump parts) |
| Filling Accuracy: | ±0.8%–±1.5% |
| Max Output: | 60,000 (Standard) / 120,000 (High-Speed) capsules/hour |
| Capsule Lock Rate: | ≥99.5% |
| Filling Stations: | 12 (Standard) / 24 (High-Speed) |
| Power Supply: | 220V/380V, 50/60Hz, 3-phase (export customizable) |
| Total Power: | 3.5kW (Standard) / 5.5kW (High-Speed) |
| Compressed Air: | 0.5–0.7MPa, 80–180L/min |
- Calculate liquid volume; reserve 10–20% for sealing.
- Common sizes:
- 00#: 0.95 mL (max fill ~0.85 mL).
- 0#: 0.68 mL (max fill ~0.61 mL).
- 1#: 0.47 mL (max fill ~0.42 mL).
Use 316L stainless steel contact parts; easy to clean/sanitize.
Stable working air pressure: 0.6-0.7MPa.
orrosive liquid, easy volatile strong irritant liquid.
Yes, it is the most common application for liquid capsule filler.
