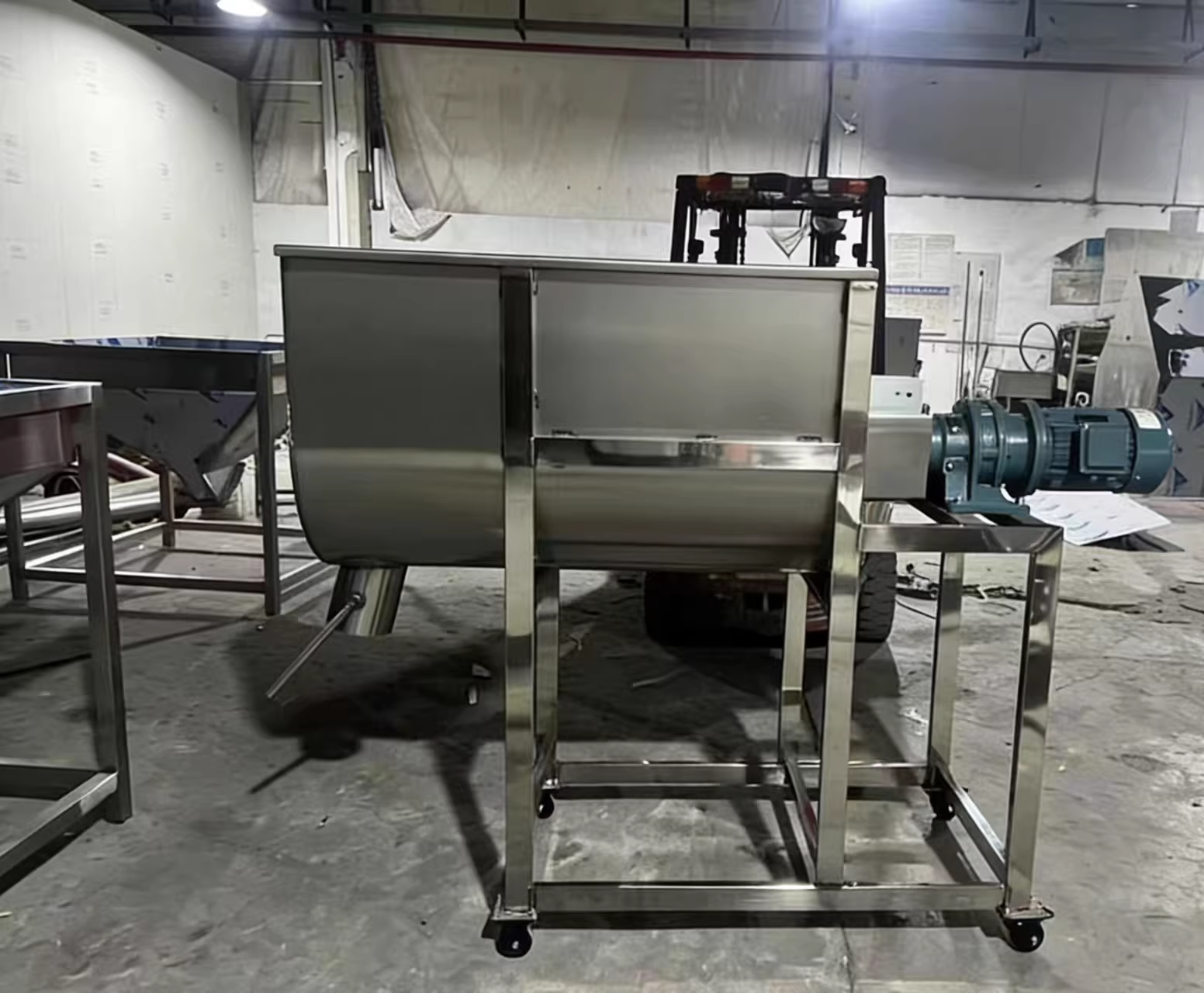

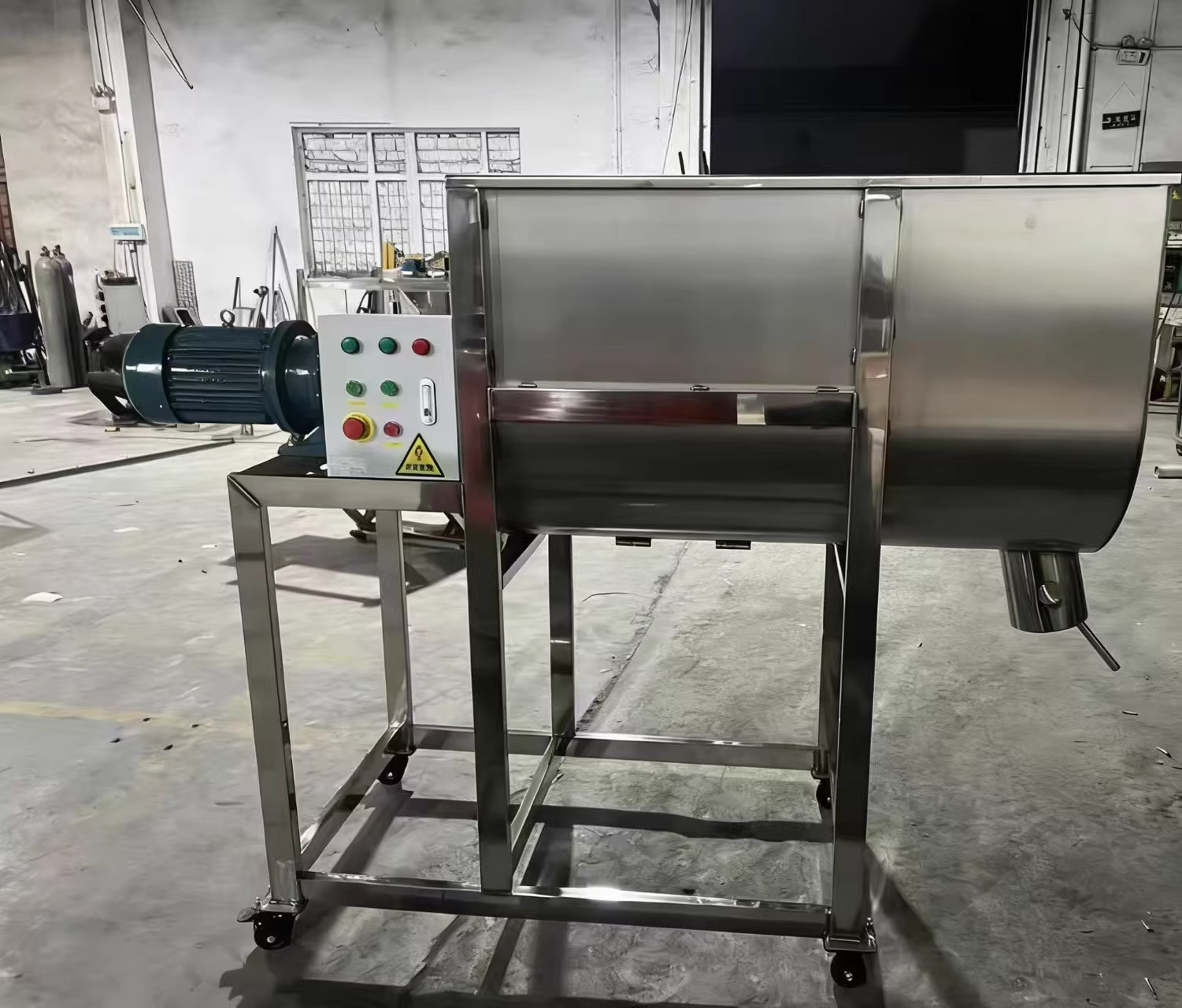

Paddle Blender

Regular Price: 10,000.00 USD

A Paddle Blender is used for uniform mixing of powders and granules in high-volume production. It is widely used in the pharmaceutical, chemical, and food processing industries to blend batches consistently.

From a construction point of view, all contact parts are made of SUS316L stainless steel, which is suitable for hygiene-sensitive industries. Meanwhile, the outer frame uses SUS304 for durability. With such a reinforced structure, the machine operates on a 380V, 3-phase system and maintains noise levels within 78 dB.

Need a Custom Quote?

Or More information About this product? Contact our sales stuff today!

Key Features

Technical Data

Machine Details

FAQ

Application Product Types

Reviews No reviews yet

Faster Processing Time: Most materials can be mixed within 8-30 minutes. Such short cycles reduce waiting time between batches, which improves overall workflow.
Adjustable Speed to Different Materials: Speed can be set between 15 and 60 RPM, enabling better control over how materials are processed. This is useful when switching between light powders and heavier blends.

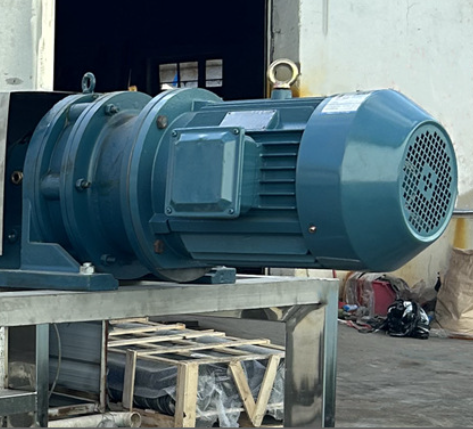

Strong Motor: Motor options range from 2.2 kW to 75 kW to give the machine enough strength to handle dense materials without slowing down.
Consistent Output Every Batch: This paddle blender delivers ≥97% mixing uniformity. It helps maintain product quality across every cycle.

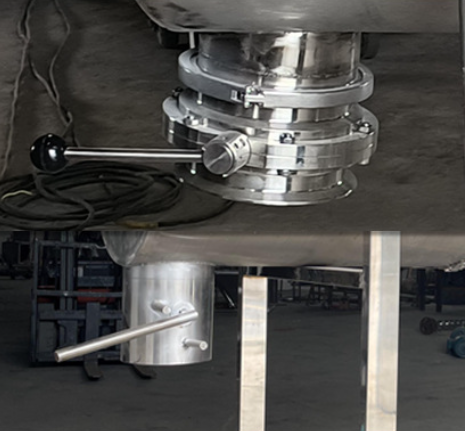

Flexible Discharge Options: Supports manual and automatic discharge systems. Pneumatic or hydraulic setups can be added depending on how the production line is configured.

Item	Specification
Material:	Contact parts: SUS316L; Frame & casing: SUS304
Mixing Capacity:	100–10000 L
Mixing Uniformity:	≥97%
Paddle Rotational Speed:	15–60 r/min (stepless adjustable)
Motor Power:	2.2–75 kW (depends on model)
Working Noise:	≤78 dB(A)
Power Supply:	380V/50Hz, 3-phase 4-wire
Mixing Time:	8–30 minutes (depends on material type)
Discharging Mode:	Manual/Automatic (pneumatic/hydraulic optional)
