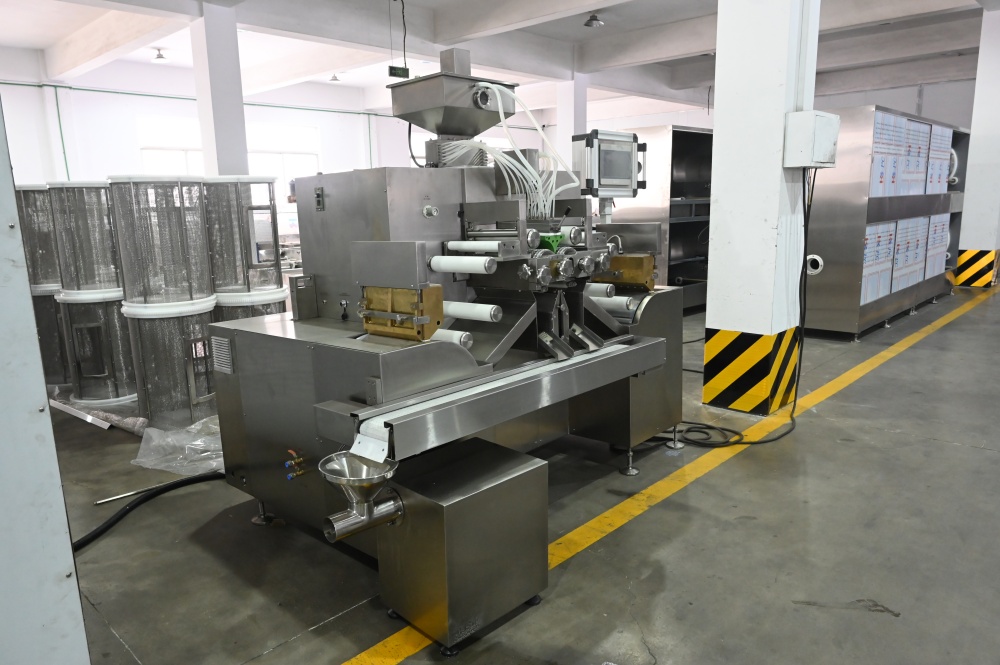

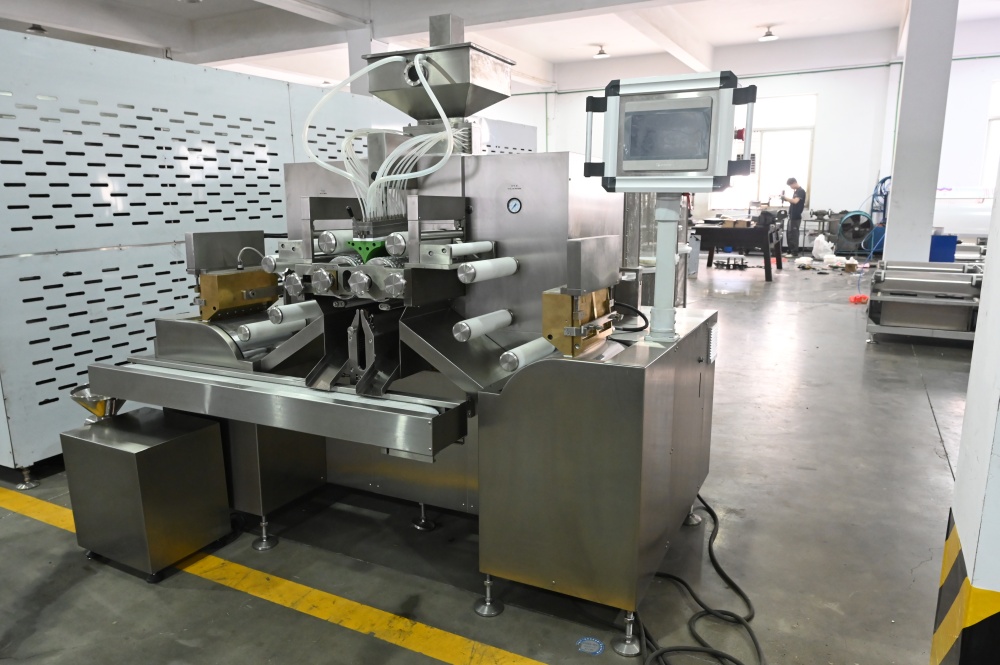

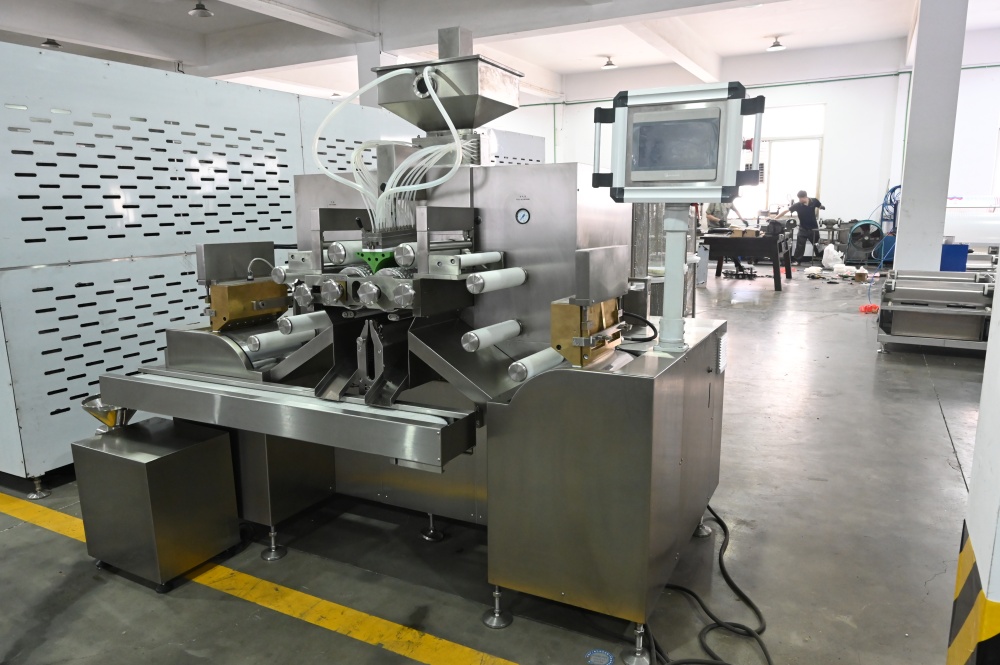

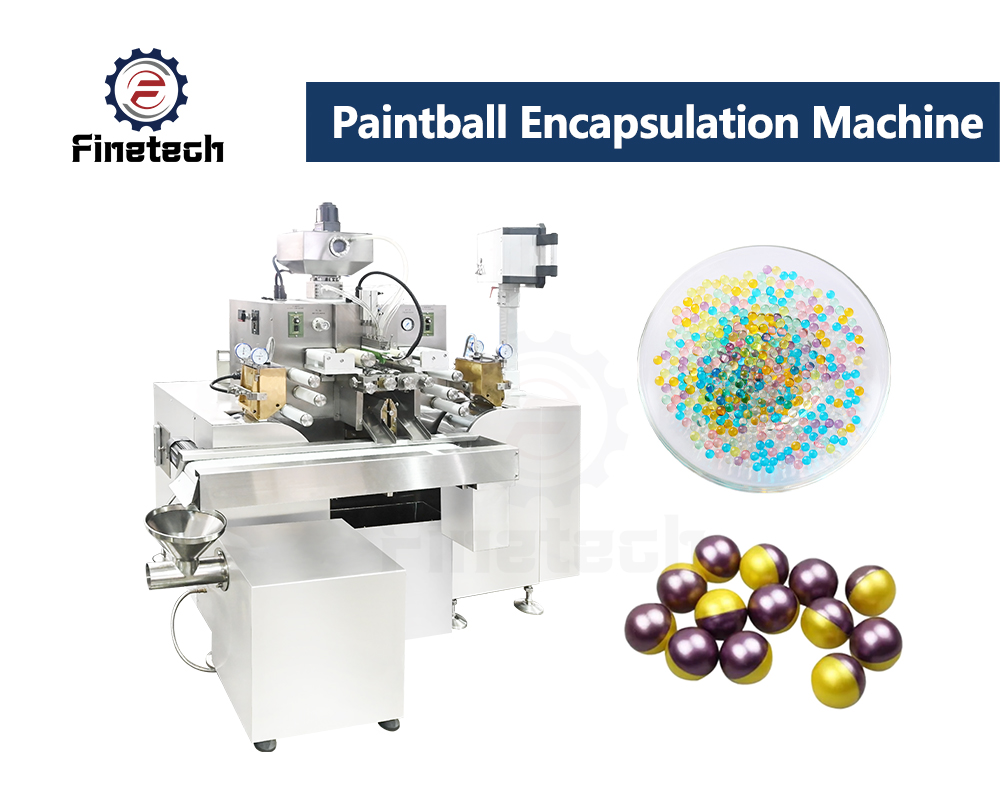

Paintball Encapsulation Machine
30,000.00 USD
A Paintball Encapsulation Machine produces paintballs with uniform size, shape, and fill. With this setup, you get a synchronized encapsulation process that handles forming and filling together to keep capsule size and content uniform.
The machine operates at a production capacity of 10,000 to 50,000 pieces per hour, supporting scale-up across different output requirements. Moreover, the machine uses a water bath design with a 3-layer structure for the gelatin melting system to maintain a stable temperature.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application Product Types
Reviews No reviews yet
- Flexible Die Roll Options: Available in sizes from 80×100 mm to 150×250 mm. The size range covers different capsule dimensions and production requirements.
- Stable Stirring System: Gelatin is mixed at 51 RPM, ensuring smooth flow and preventing uneven texture during production.
- Adjustable Die Roll Speed: Speed can be set between 0 and 15 RPM. This gives better control over the encapsulation process. You can choose the speed based on precision or increased output.
- Low Noise Operation (≤75 dB): Designed to run with controlled noise levels, so companies can easily operate continuously.
- High Production Output: Can produce up to 50,000 capsules per hour and work over long operating hours.
| Item | Specification |
| Material: | Contact parts: SUS316L; Frame & casing: SUS304 |
| Production Capacity: | 10,000–50,000 pcs/h (depends on model) |
| Encapsulation Precision: | Dosage deviation ≤ ±1.5% |
| Die Roll Size: | Φ80×100 mm – Φ150×250 mm (depends on model) |
| Die Roll Speed: | 0–5 rpm (stepless adjustable) |
| Motor Power: | 5–20 kW (depends on model) |
| Working Noise: | ≤75 dB(A) |
| Power Supply: | 380V/50Hz, 3-phase 4-wire (220V/440V optional) |
| Control Mode: | PLC + touch screen, automatic control with fault diagnosis function |
| Gelatin Melting System: | Water bath type, 3-layer structure (liner, heating jacket, insulation layer), stirring speed 51 rpm |
Medicine Pump
Control Panel
Finished Softgel Capsules Outlet
Gelatin Ribbon Formation
What is the working principle?
What is the working principle?
- Shell forming: Gelatin solution is molded into two hemispherical shells.
- Filling: Colored paint fill is accurately injected into one half-shell.
- Sealing & bonding: Two halves are joined, sealed, and cooled to form a solid paintball.
- Drying & conveying: Finished paintballs are transported for curing and packaging.
What is the standard paintball size?
What is the standard paintball size?
Most machines produce 0.68 inches (caliber 0.68), the global standard for recreational and tournament paintball.
What is the production capacity?
What is the production capacity?
Depending on the model:
- Small / lab scale: 2,000–8,000 pcs/h.
- Medium production: 10,000–20,000 pcs/h.
- High-speed industrial line: 20,000–36,000 pcs/h.
Can it make biodegradable or glow-in-the-dark paintballs?
Can it make biodegradable or glow-in-the-dark paintballs?
Yes. With adjusted molds and process parameters, the machine can produce:
- Biodegradable paintballs.
- Glow-in-the-dark paintballs.
- UV-reactive paintballs.
- Training or low-impact paintballs.
What is the required power and installation?
What is the required power and installation?
- Voltage: 220V / 380V, 50/60Hz (customizable).
- Power: 3–15 kW depending on capacity.
- Requires cooling water or chiller system.
- Needs stable compressed air supply.
Is it suitable for small factories or startups?
Is it suitable for small factories or startups?
Yes.
Can the machine be customized?
Can the machine be customized?
Yes. Custom options include:
- Higher production speed.
- Special mold sizes.
- Explosion-proof design.
- Full automation with drying line.
- Integrated packaging system.
What certifications are available?
What certifications are available?
Common certifications:
- CE Certification.
- ISO 9001.
- Food-grade material. compliance
Chocolate Paintball
Cigarette Capsule
