Pellet Capsule Filling Machine

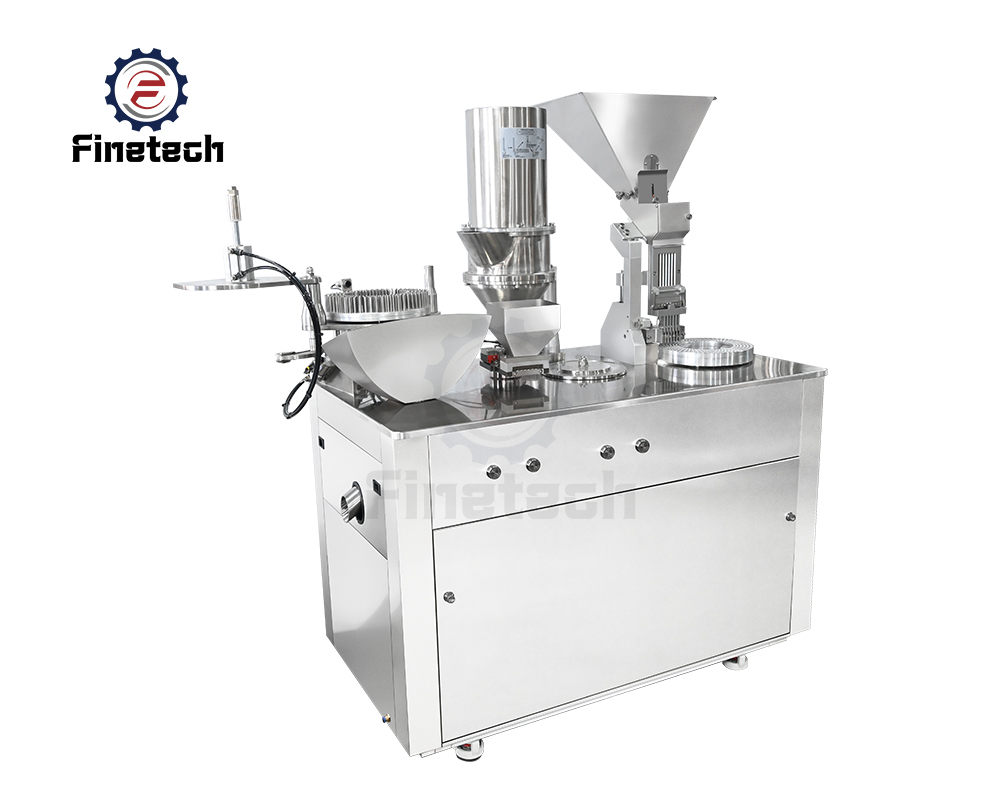

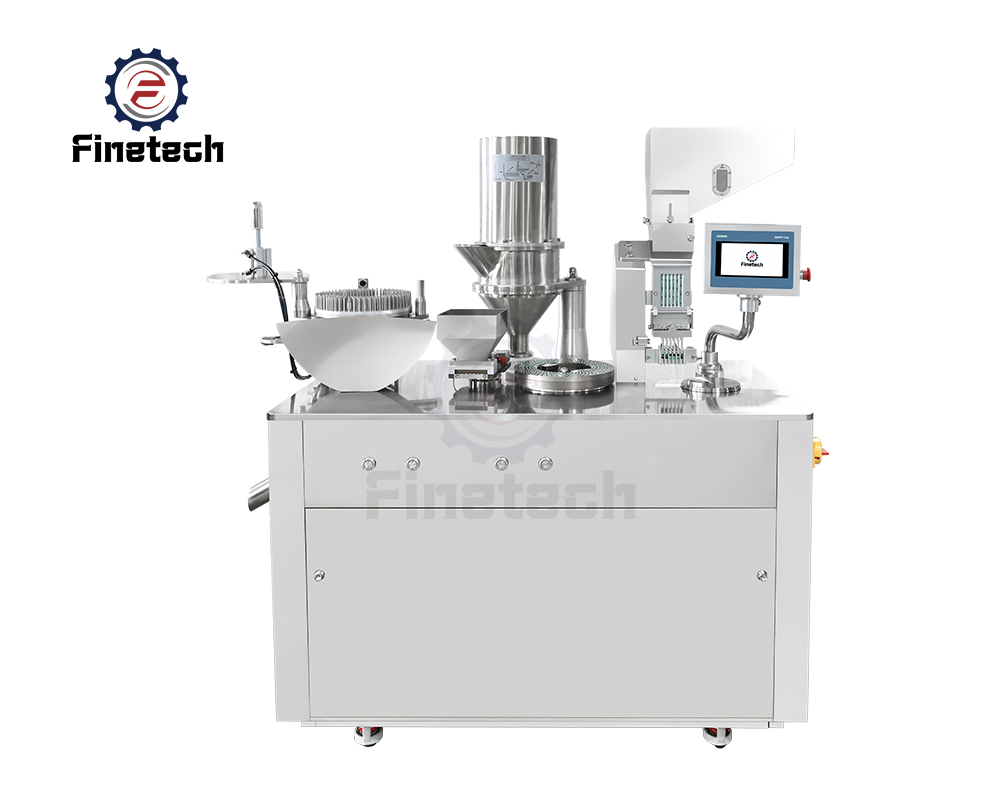

Support pellet-based capsule production with Finetech’s pellet capsule filling machine. This setup supplies pellets to the pellet feeder, with an upper material hopper and a touchscreen beside the work area. The open layout keeps the feeding area within view and reach. A wheeled base helps operators position the unit for setup and cleaning access.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application
Reviews No reviews yet
- Pellet feeder supply: Supplies pellets to the pellet feeder as part of the capsule-production process, supporting the material-feeding stage.

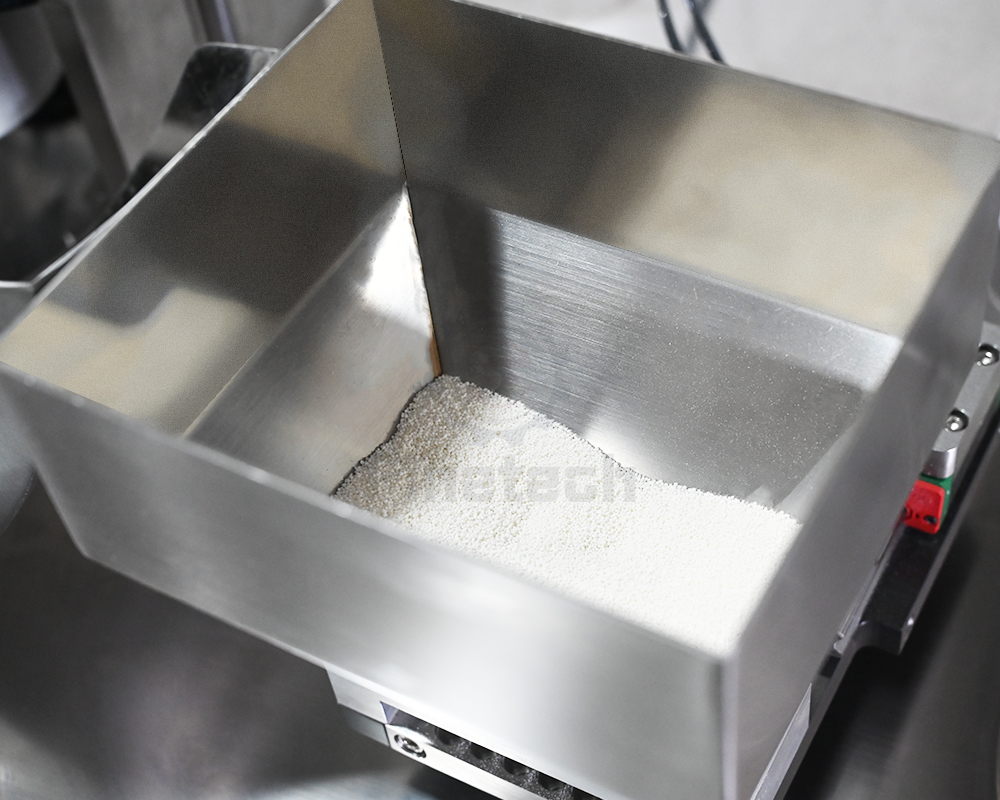

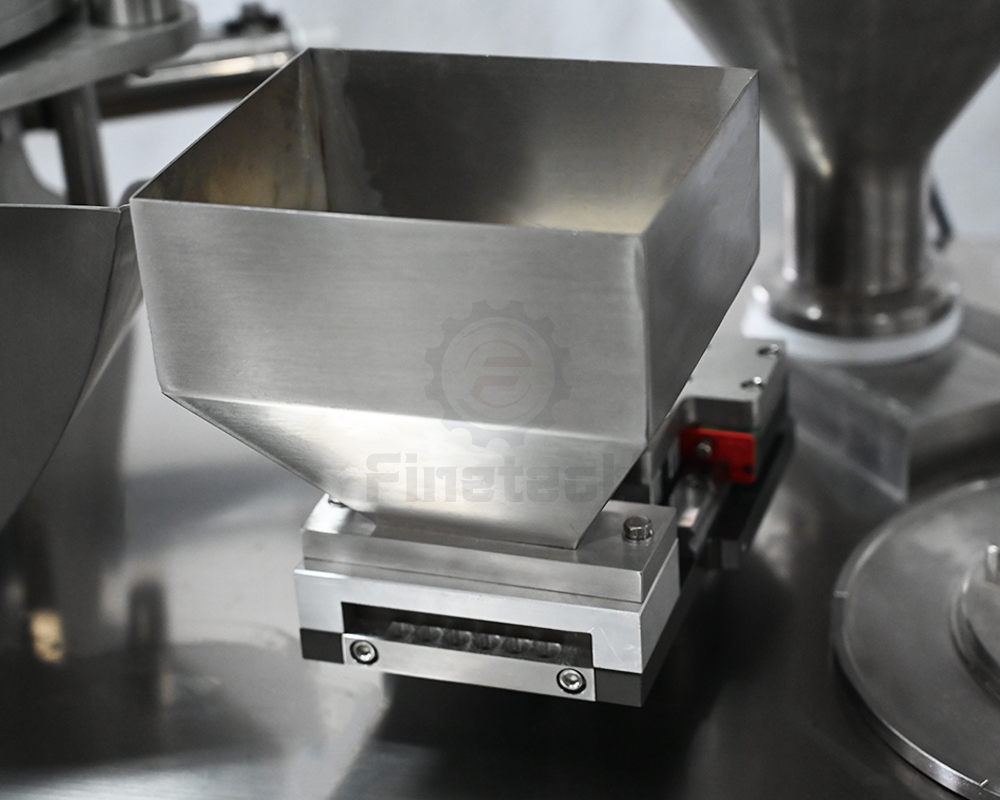

- Hopper-based material loading: An upper hopper provides a loading point for material used in the pellet-feeding process.

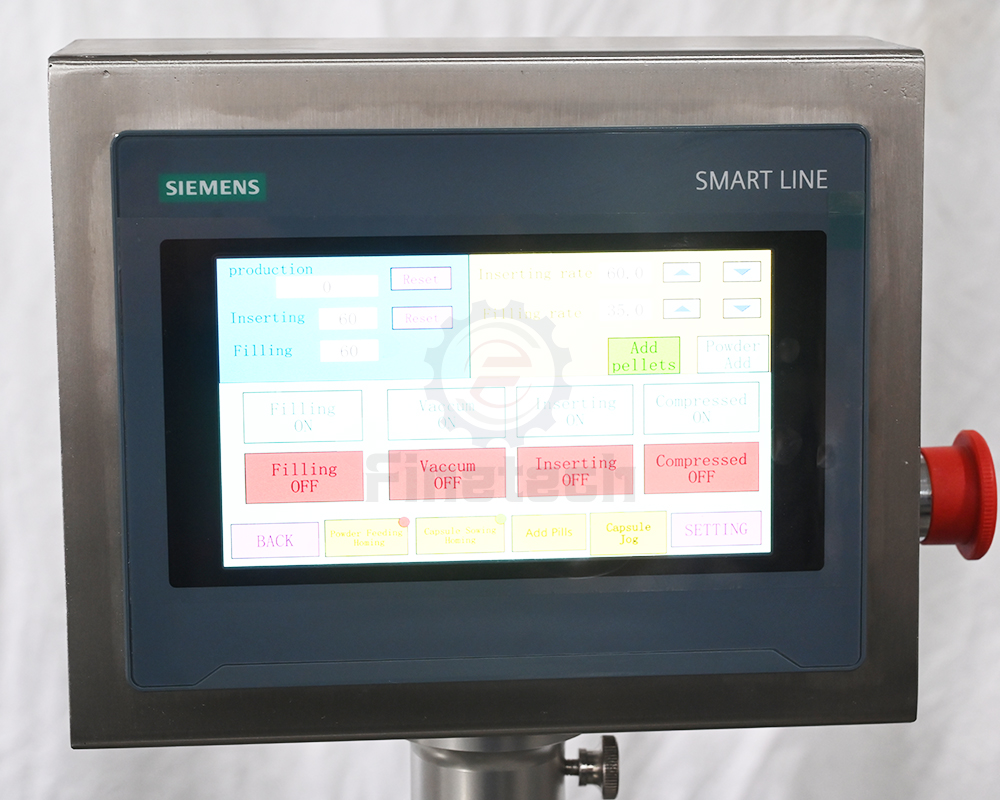

- Touchscreen controls: The mounted touchscreen places machine controls beside the working area for operator access.
- Accessible feeding area: The open work surface gives operators a clear view of the feeding area during setup and operation.
- Integrated machine layout: The hopper, working stations, and control screen are arranged on one cabinet, keeping the main operating areas together.
- Movable base: Casters allow the unit to be repositioned for setup and access around the machine.
| Item | Specification |
| Model: | JTJ-C |
| Applicable Capsule: | Hard capsule: 000#, 00#, 0#, 1#, 2#, 3#, 4#, 5# |
| Filling Material: | Pellets, granules, free-flowing powder |
| Output Capacity: | 25,000 pcs/h (depends on material & operator skill) |
| Filling Accuracy: | ±3~5% (for uniform pellets/granules) |
| Control System: | PLC + touch screen |
| Power Supply: | 1PH/3PH 220V / 380V, 50Hz / 60Hz |
| Installed Power: | 2.2 kW |
| Compressed Air: | 0.3–0.6 MPa, 0.3 m³/min |
| Vacuum Requirement: | 40 m³/h |
| Product Contact Parts: | SUS316L stainless steel |
| Machine Frame & Housing: | SUS304 stainless steel |
| Overall Dimension (L×W×H): | 1140 × 700 × 1630 mm |
| Net Weight: | 450 kg |
| Noise Level: | ≤75 dB(A) |
| Certification: | CE, ISO9001, GMP compliant |
| Feature: | Manual capsule feeding, automatic separation, filling, closing; quick changeover for different capsule sizes |
| Warranty: | 12 months |
Yes.
Normally 00#, 0#, 1#, 2#, 3#, 4#, 5# hard capsules (gelatin or HPMC).
Typical weight variation ≤ ±2%~±3% under stable pellet flow, uniform particle size and consistent bulk density.
Recommended pellet diameter: 0.3–2.0 mm.
- Small lab / pilot: 15,000–60,000 pcs/h
- Mid-size NJP: 80,000–200,000 pcs/h
- High-speed: >250,000 pcs/h
Standard pellet model: 20–30 min for full size change with cleaning.
380V / 220V power; clean dry compressed air 0.5–0.7 MPa; exhaust for dust collection.
Yes.
