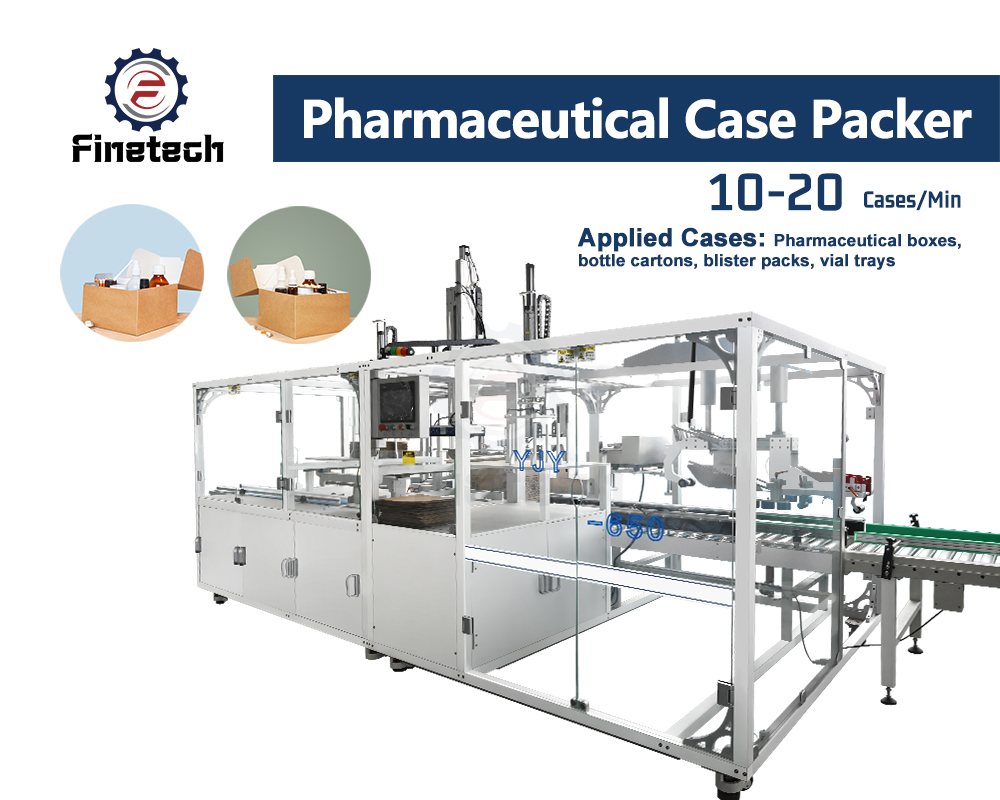

Pharmaceutical Case Packer
55,000.00 USD
A Pharmaceutical Case Packer automatically collates and packs pharmaceutical products into corrugated cases for secondary packaging. It is suitable for high-speed production lines, supporting controlled case formation and product loading.
Running at 10-20 cases per minute, it ensures steady output while keeping every case uniform. Each case is opened, filled, and sealed automatically, so there are no loose products, uneven packing, or inconsistency between batches.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application
Reviews No reviews yet
- Flexible Product Compatibility: Handles cartons, bottles, sachets, blister packs, and vial trays in one system. Different product types can still maintain the same clean and structured outer packaging.
- Adjustable Quantity Per Case (1-60 pcs): You can customize the packing based on product size and requirements. This helps maintain uniform packaging even when product formats vary.
- Reliable Tape Sealing: Cases are sealed cleanly with adhesive tape, without gaps or loose flaps. It prevents accidental opening and gives the impression of a properly secured shipment.
- Batch Coding and Labeling: This pharmaceutical case packer offers a feature to code and link cases with labeling systems during packing.
- Safety and Protection System: Includes door interlocks, emergency stop, overload protection, and case shortage alarms. Worker protection is always the priority.
| Machine Name: | Automatic Pharmaceutical Case Packer |
| Applicable Products: | Pharmaceutical cartons, glass/plastic drug bottles, blister packs, sachets, ampoules, vials (customizable for special specifications) |
| Packing Type: | Carton case packing, carton into carton, bottle into carton, blister into carton; automatic feeding, arranging, packing, sealing, labeling |
| Production Capacity: | 10–60 cases/min (standard model); 60–120 cases/min |
| Case Size Range: | L 200–600 mm × W 150–400 mm × H 100–350 mm |
| Product Size Range: | Carton: L 50–200 mm × W 30–100 mm × H 20–80 mm; Bottle: Diameter 10–80 mm, Height 50–200 mm |
| Control System: | PLC + Touch Screen Intelligent Control; servo motor drive, automatic parameter adjustment, fault alarm, data memory and traceability |
| Sealing Method: | Adhesive sealing (hot melt glue), tape sealing (optional); leak-proof, firm and neat sealing |
| Main Material: | Contact parts: SUS304/SUS316 stainless steel (pharmaceutical grade); frame: SUS304 stainless steel; fully compliant with GMP standards |
| Operating Temperature: | 18–25℃ (optimal); humidity: 40–60%; dust-free and clean workshop recommended |
| Power Supply: | 380V/220V 50/60Hz 3Phase (customizable according to local voltage standards) |
| Total Power: | 5–15 KW (varies by model and speed) |
| Overall Dimension (L×W×H): | 3500×1800×2200 mm (standard model); customized dimension available based on production line layout |
| Machine Weight: | 1500–3500 kg (depends on model and configuration) |
Packing Station
Erection Station
Conveyor
Control Panel
Cardboard Storage
Case Strapper
What products can it handle?
What products can it handle?
- Solid dosage: Tablets, capsules, blister packs, sachets.
- Liquid & injectables: Oral liquids, ampoules, vials, pre-filled syringes, lyophilized drugs.
- Others: Medical devices, diagnostic reagents, TCM preparations.
What is the difference between a case packer and a cartoner?
What is the difference between a case packer and a cartoner?
| Feature | Cartoner (Secondary Packaging) | Case Packer (Tertiary Packaging) |
|---|---|---|
| Role | Packs primary packages (blisters, bottles) into folding cartons | Packs cartons (secondary packages) into shipping cases |
| Typical speed | 100–400+ cartons/min | 5–30 cases/min |
| Output | Shelf‑ready cartons | Transport‑ready shippers |
Can it integrate with upstream/downstream equipment?
Can it integrate with upstream/downstream equipment?
Yes，avaliable connet cartoner and shrink wrapper.
How to ensure GMP compliance?
How to ensure GMP compliance?
- Design: 304 stainless steel, smooth surfaces, no dead corners for easy cleaning.
- Control: PLC+HMI with audit trails, password protection, 21 CFR Part 11 compliance.
- Serialization: Integrate with track-and-trace systems for unit/batch serialization.
- Cleaning: Daily sanitization, validated cleaning procedures, separate tools for different zones.
- Documentation: Batch records, maintenance logs, calibration certificates readily available.
