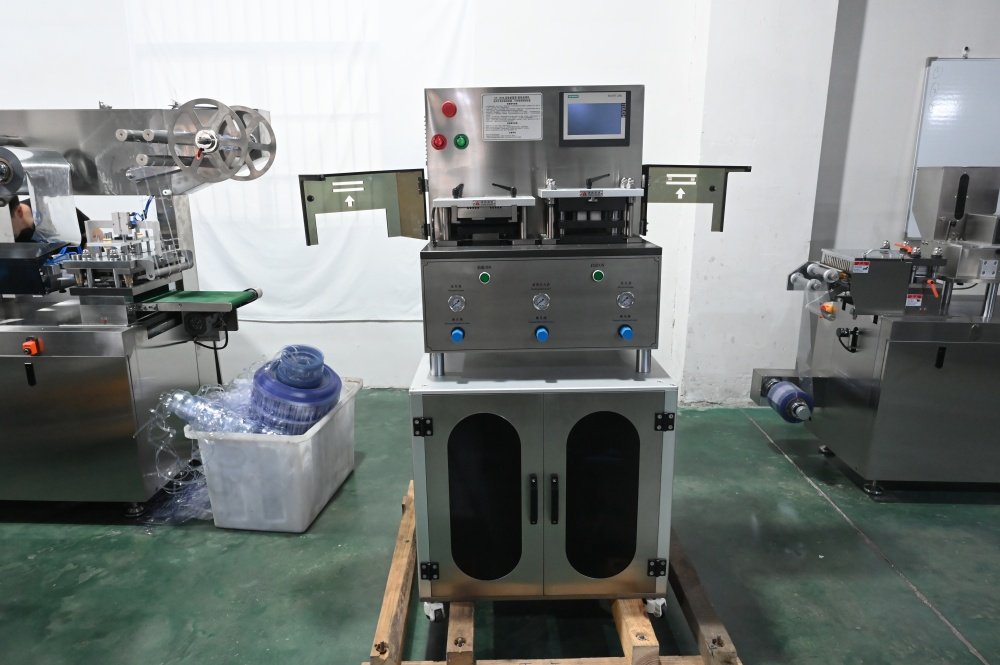

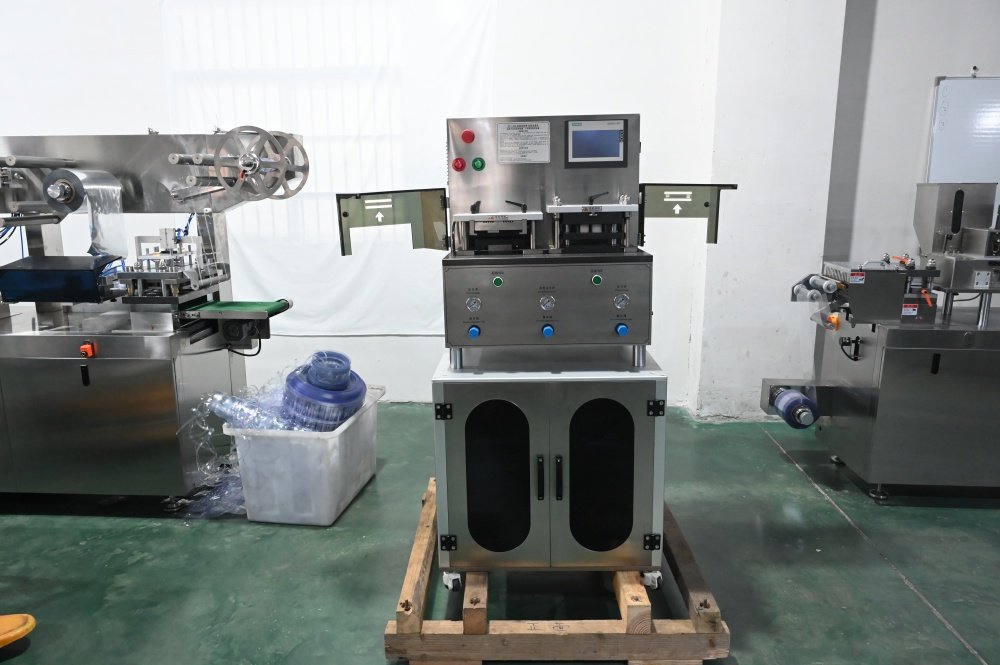

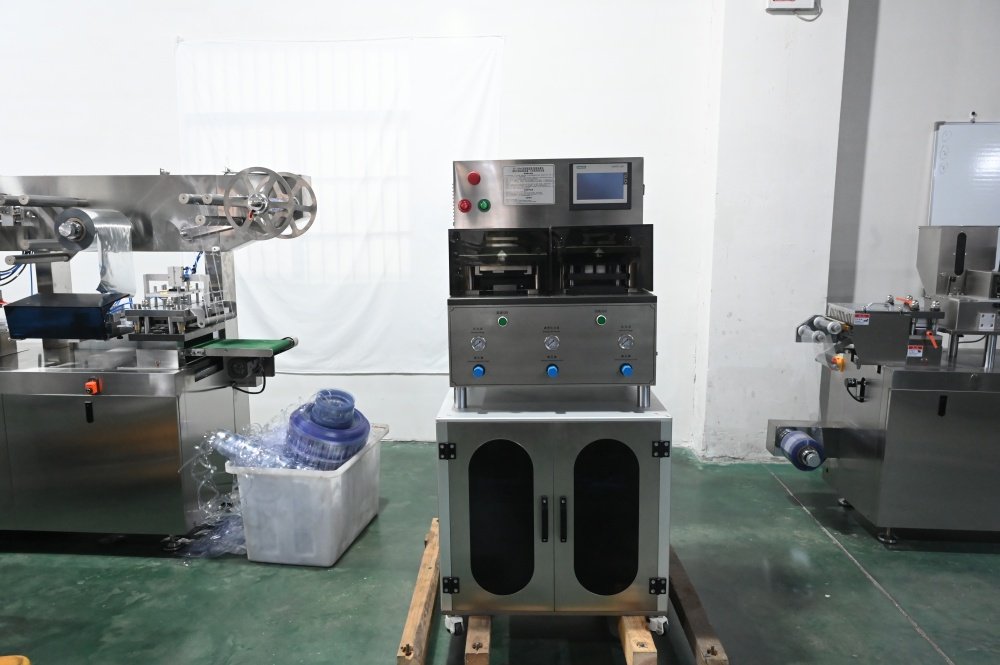

Semi-Automatic Blister Packing Machine
This Semi-Automatic Blister Packing Machine handles small to mid-scale blister packaging operations. It is especially useful where controlled production, lower investment cost, and operator flexibility are important. The machine is ideal for packaging tablets, capsules, ampoules, syringes, candies, hardware items, and small consumer products.
This setup combines manual product loading with automated forming and sealing operations. It allows you to maintain better control during packaging while reducing overall machine complexity. Moreover, the machine supports PVC, PET, and aluminum foil blister materials.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application
Reviews No reviews yet
Videos
- Semi-Automatic Operating Structure: The machine combines manual feeding with automatic blister forming and sealing functions. This setup keeps operations simpler while still improving production efficiency.
- Adjustable Blister Dimensions: Blister size, forming depth, and cavity arrangement can be customized. Standard forming depth can reach up to 35 mm.

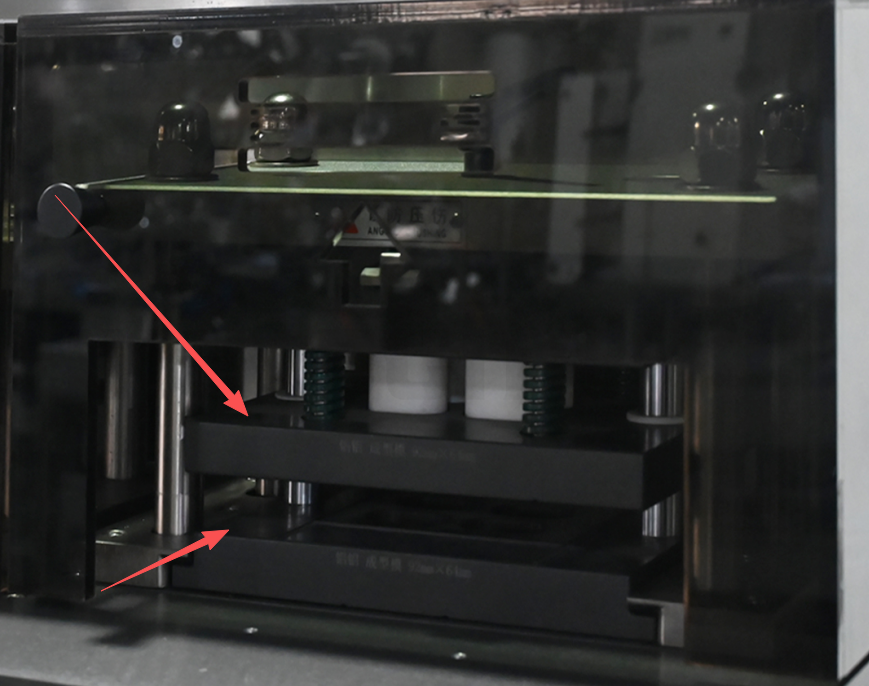

- Heat-Controlled Sealing System: The sealing station operates with adjustable temperature settings to maintain secure sealing across different blister materials. It improves package stability during storage.
- Stainless Steel Contact Sections: Product contact areas are manufactured using stainless steel materials suitable for pharmaceutical, food, and consumer goods packaging environments.
- Warranty and After-Sales Service: After purchase, you get a one-year warranty covering manufacturing faults and standard technical issues. Spare parts support and after-sales technical assistance are also provided.
| Item | Specification |
| Application Range: | Aluminum-Plastic, Aluminum-Aluminum Blister Packaging |
| Production Capacity: | 200-700 pcs per hour |
| Heat Sealing Accuracy: | 99.90% |
| Applicable Packaged Products: | 00#, 0#, 1#, 2#, 3# capsules/tablets, round tablets, special-shaped tablets, and other products |
| Maximum Forming Area: | 110mm × 120mm |
| Maximum Forming Depth (Aluminum-Plastic Forming): | 14mm |
| Maximum Forming Depth (Cold Aluminum Forming): | 10mm |
| Power Supply: | 220V, Total Power 2.6kW |
| Air Supply Requirement: | Air Consumption: 0.2m³/min, Working Pressure: 0.4-0.6MPa |
| Machine Overall Dimension (Length × Width × Height): | 635mm × 575mm × 710mm |
| Machine Net Weight: | 115kg |
It fits capsules, tablets, pills, candies, hardware parts, small cosmetics and daily necessities.
Compatible with PVC, PET, aluminum foil composite packaging materials.
Yes, simple manual feeding + automatic forming sealing, one person can operate easily.
Yes.
20 blister plates/H
Customizable 220V/380V.
Yes.
Customer Reviews
No reviews yet. Be the first to review this product!
Write a Review
Semi Automatic Blister Packing Machine Operation Video
