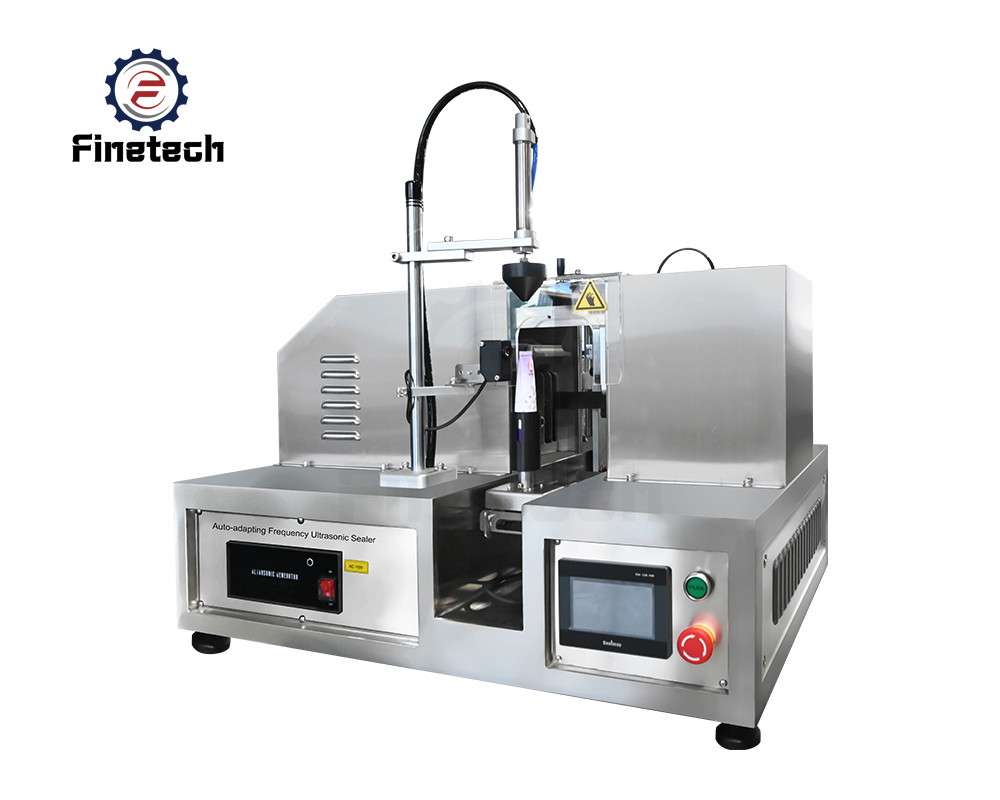

FT-007 Ultrasonic Tube Sealing Machine
The FT-007 Ultrasonic Tube Sealing Machine is used for sealing plastic and laminated tubes after filling, using ultrasonic vibration instead of heat. It is suitable for creams, gels, ointments, toothpaste, and similar products where clean sealing and stable output are required.
The machine supports tube diameters from 13 mm to 50 mm and tube lengths up to 210-250 mm. Production capacity ranges from 8 to 12 tubes per minute, depending on operator handling and product type.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application Tube Types
Reviews No reviews yet
- No Heat Required for Sealing: The machine uses ultrasonic technology instead of heat, which makes it suitable for products that are sensitive to temperature.
- Clean and Professional Finish: Sealing, cutting, and coding are completed in one process, which gives a neat and consistent finish to every tube.
- Automatic Mark Detection: The sensor locates the tube print mark and aligns it before sealing to keep the branding position correct.
- Durable and Low Maintenance: Built with a stainless steel structure, the machine is suitable for long-term use in production environments like cosmetics and pharmaceuticals.
- Compact Tabletop Structure: Does not require a large installation space due to its compact size. Can easily be placed in existing production setups.
| Item | Specification |
| Model: | US-Tube Sealer Series |
| Applicable Tube: | Plastic tube (PE/PP), Laminated tube (Al-plastic), Soft composite tube(Not for pure aluminum tube) |
| Tube Diameter: | φ10–50 mm (customizable up to φ60 mm) |
| Tube Length: | 50–250 mm |
| Sealing Width: | Max 50 mm |
| Ultrasonic Frequency: | 20 kHz |
| Ultrasonic Power: | 1200 W / 1500 W (optional) |
| Sealing Type: | Ultrasonic welding (no glue, no heat wire) |
| Sealing Pattern: | Straight, serrated, embossed (custom mold) |
| Sealing Speed: | 20–40 times/min (manual operation) |
| Sealing Strength: | Stable, leak-proof, airtight, high tensile strength |
| Date Coding: | Support batch / LOT / expiry date (optional) |

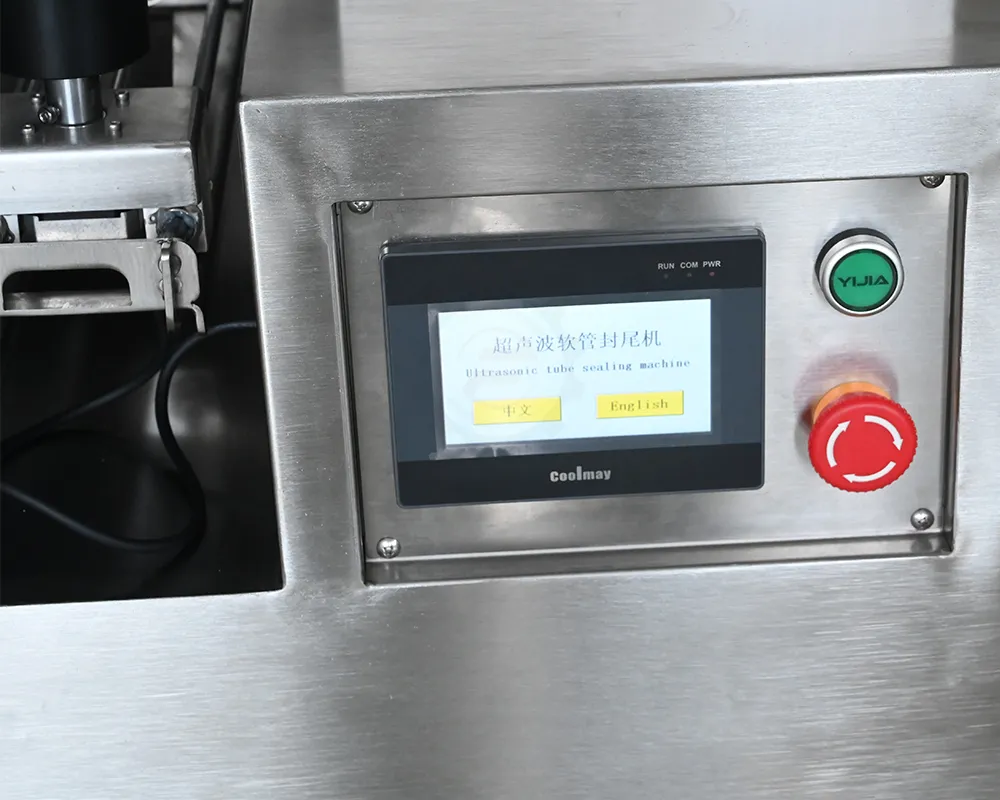

| Control System: | PLC + LCD touch screen |
| Adjustment Mode: | Time, power, pressure adjustable digitally |

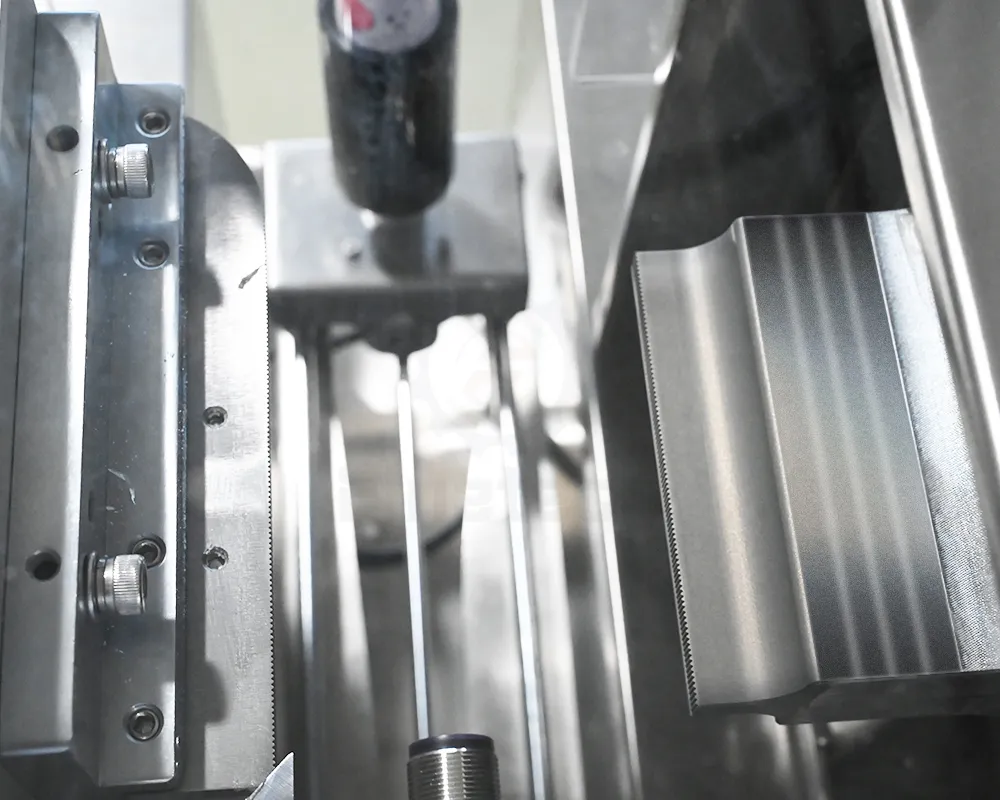

| Machine Material: | Body: SUS304 stainless steel |
| Working Pressure: | 0.4–0.6 MPa |
| Air Consumption: | 0.1–0.2 m³/min |
| Power Supply: | AC 220V, 1-phase, 50/60 Hz |
| Total Power: | 1.5 kW |
| Dimensions (L×W×H): | Approx. 550×450×1050 mm |
| Net Weight: | Approx. 85 kg |
| Features: | Fast sealing, no preheating, low energy consumption, beautiful seal, safe operation |
| Application: | Cosmetics, pharmaceuticals, ointment, adhesive, glue, food cream, hand cream, toothpaste etc. |

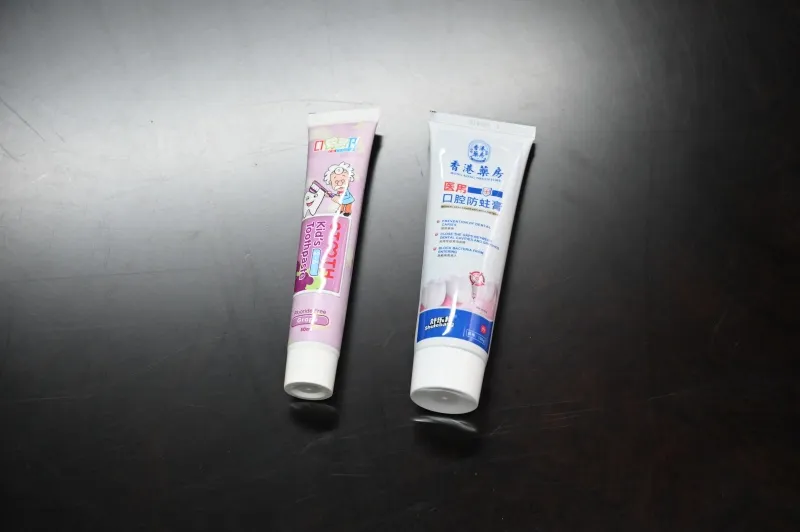

Plastic tubes (PE, PP), laminated (aluminum-plastic composite), soft cosmetic/pharmaceutical tubes.
Cosmetic cream, toothpaste, ointment, gel, adhesive, glue, food paste, hand cream, hair dye, etc.
Standard: 20 kHz, 1200W / 1500W.
Yes. Airtight, leak-proof, high tensile strength, no cracking.
Straight, serrated, embossed, flat. Custom mold available.
20–40 tubes/min (depends on operator).
Yes: 0.4–0.6 MPa, clean dry air.
Yes, up to φ60mm (custom).
