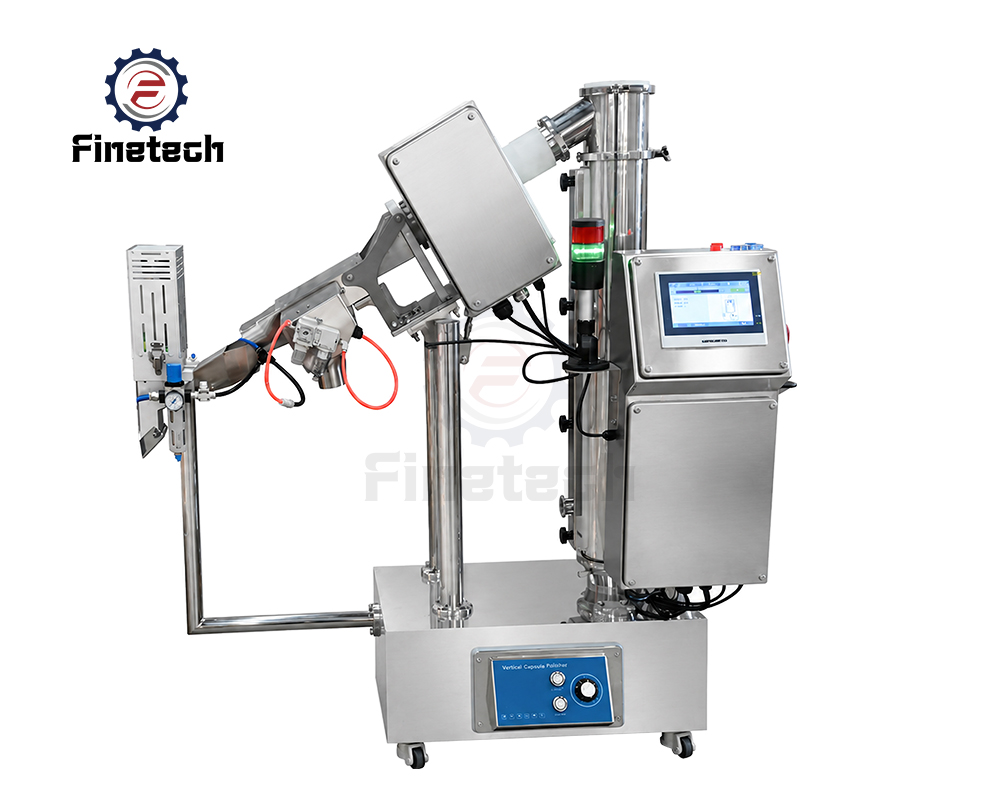

Vertical Capsule Polishing Machine With Metal Detection and Sorting
Prepare filled capsules for packaging with Finetech’s vertical capsule polishing machine. It combines surface polishing, metal detection, and capsule sorting in one unit. Polishing removes loose powder from capsule shells, while the inspection and sorting functions support checks before packaging. The upright layout brings these finishing steps together, with a touchscreen and separate polishing controls within the operator’s reach.
Need a Cutsom Quote
Or More information About this product? Contact our sales stuff today!
Key Features
Specification Table
FAQ
Machine Parts Name
Applied Capsule Types
Reviews No reviews yet
- Capsule surface polishing: Removes loose powder and surface residue from filled capsules, helping improve their appearance before packaging.
- Integrated metal detection: Screens passing capsules for metal contamination as part of the finishing and inspection process.

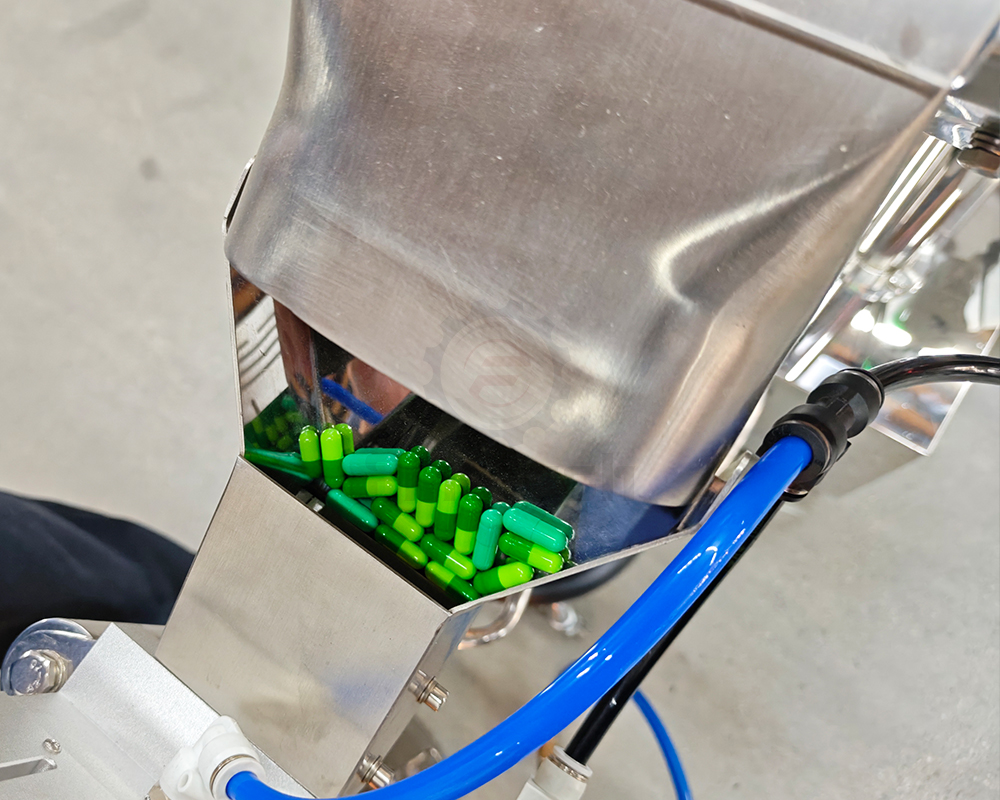

- Capsule sorting: Separates capsules selected for rejection from the main product flow, supporting collection after inspection.
- Vertical polishing layout: The upright polishing column arranges the capsule-finishing process vertically within the machine frame.

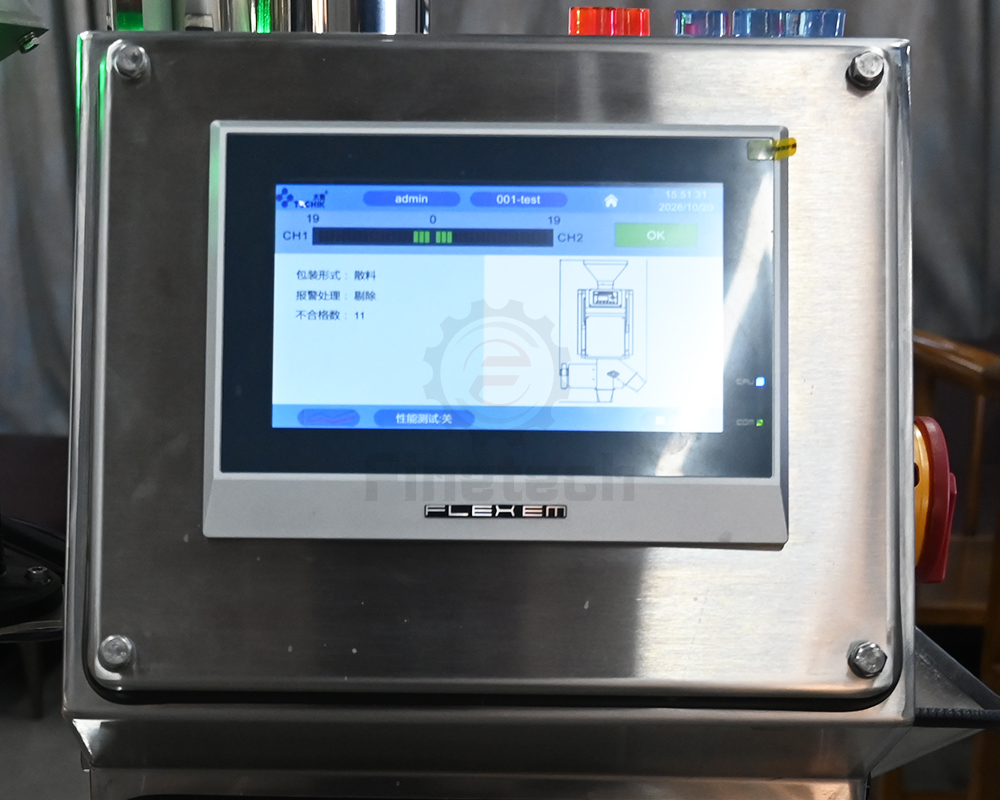

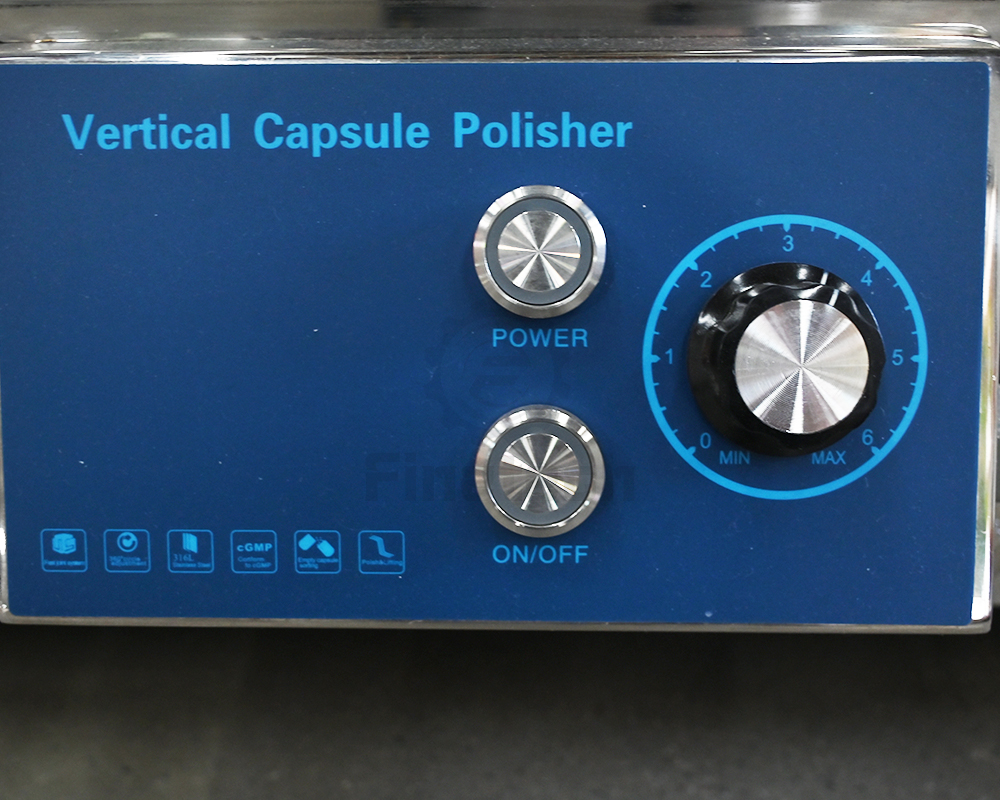

- Accessible operating controls: A mounted touchscreen and separate polishing control panel give operators access to machine operation and speed adjustment.
- Wheeled base: Built-in casters help position the unit during setup and provide access around the machine for cleaning.
| Item | Parameter |
| Model: | LFP-150A / C&C100C |
| Applicable Capsule Size: | 00#, 0#, 1#, 2#, 3#, 4# |
| Max Capacity: | 600,000 pcs/h |
| Function: | Polishing, dedusting, sorting broken / separated / empty capsules |
| Feeding Height: | 730 mm (customizable) |
| Discharge Height: | 1100 mm (customizable) |
| Power Supply: | 1PH 110V / 220V, 50Hz / 60Hz |
| Installed Power: | 0.2 kW |

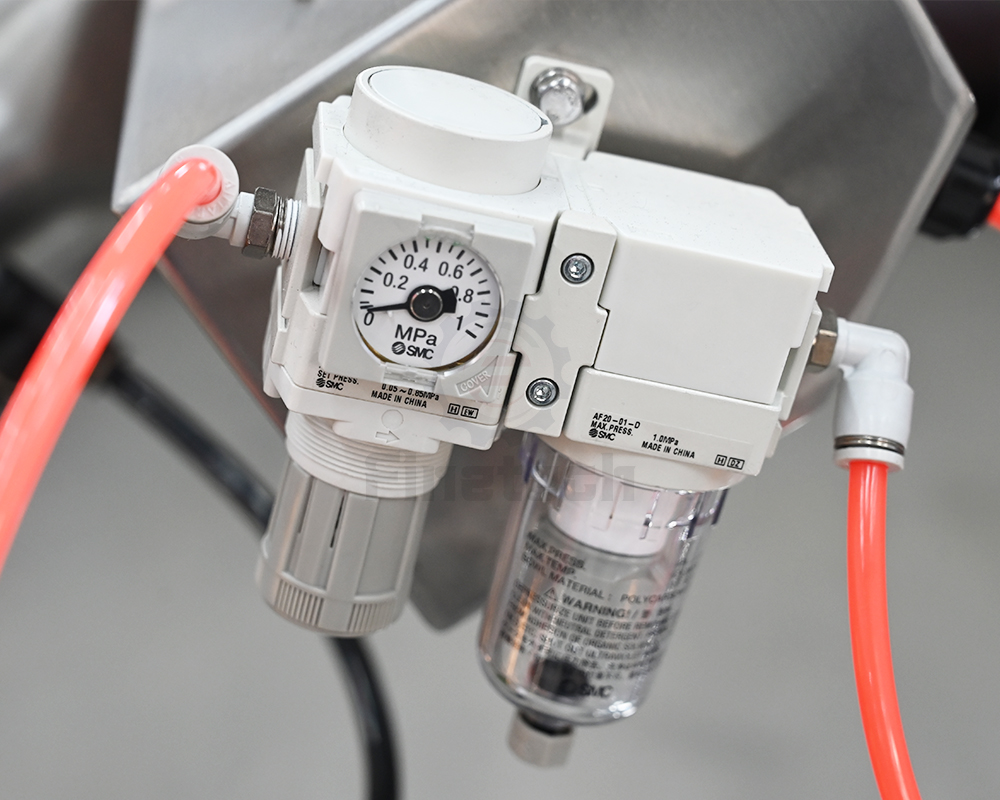

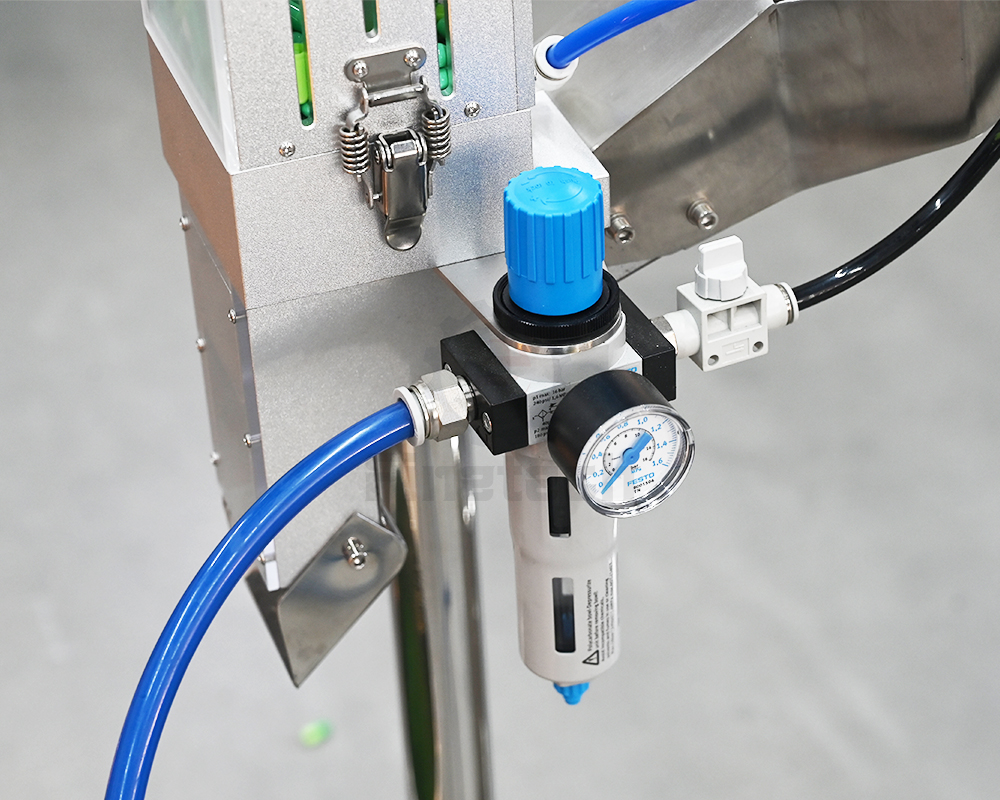

| Compressed Air: | 0.3 m³/min, 0.3 MPa |
| Vacuum Requirement: | 3.0 m³/min, -0.014 MPa |
| Contact Material: | SUS316L stainless steel |
| Frame Material: | SUS304 stainless steel |
| Overall Dimension (L×W×H): | 740 × 510 × 1500 mm |
| Net Weight: | 80 kg |
| Certification: | CE, ISO9001, GMP compliant |
| Noise Level: | ≤70 dB |
| Cleaning: | Quick disassembly, detachable polishing brush, no dead corner |
| Option: | Metal detector and screening machine available as options |
No.
Standard range: 00#, 0#, 1#, 2#, 3#, 4#. Special sizes can be customized upon request.
1,000 pcs/h.
Product contact parts: SUS316L stainless steel. Machine frame: SUS304 stainless steel. It meets GMP requirements and supports CE & ISO9001 certification.
Yes.
Yes.
Yes. Also connect with acg, IMA, and other brand capsule filling machines.
3–6 months.
