Cosmetic Tube Filling and Sealing Machine

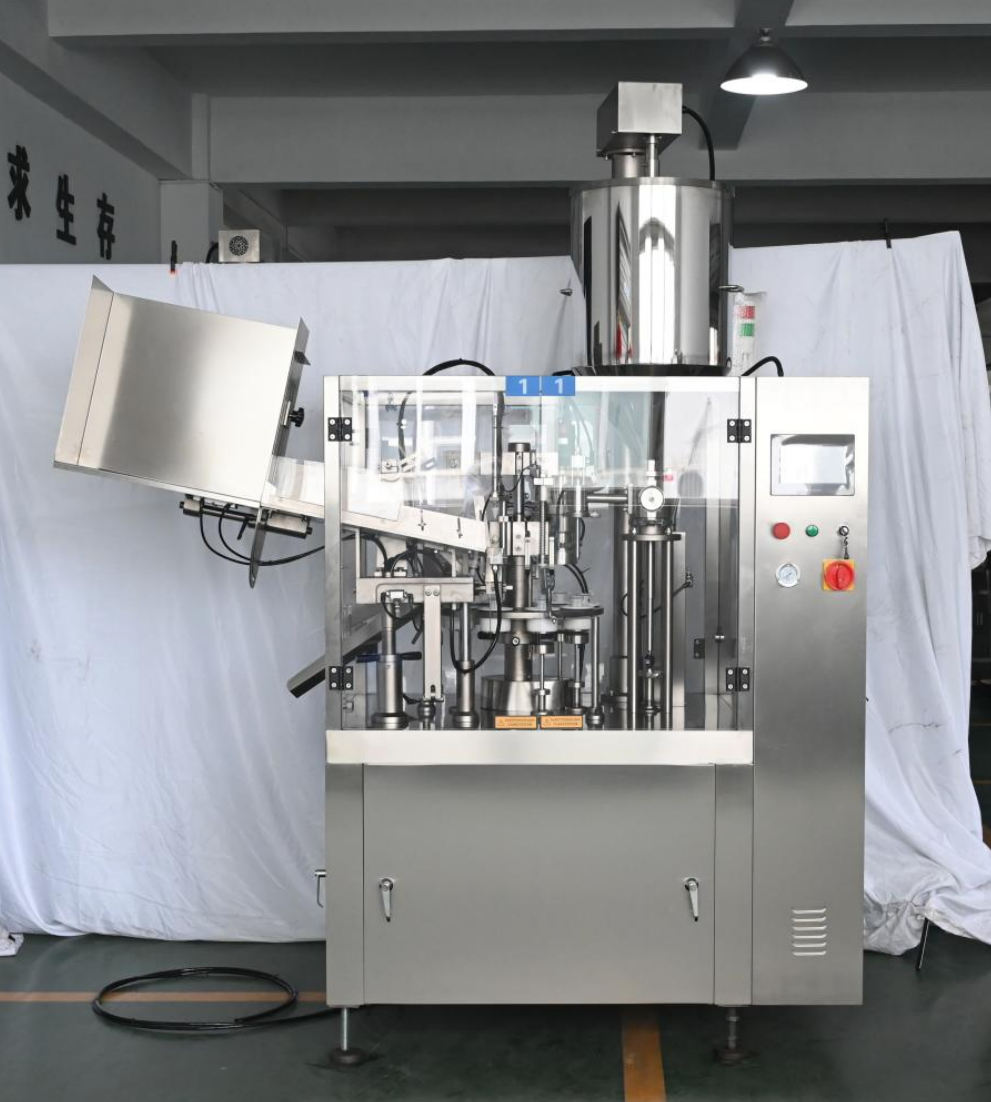

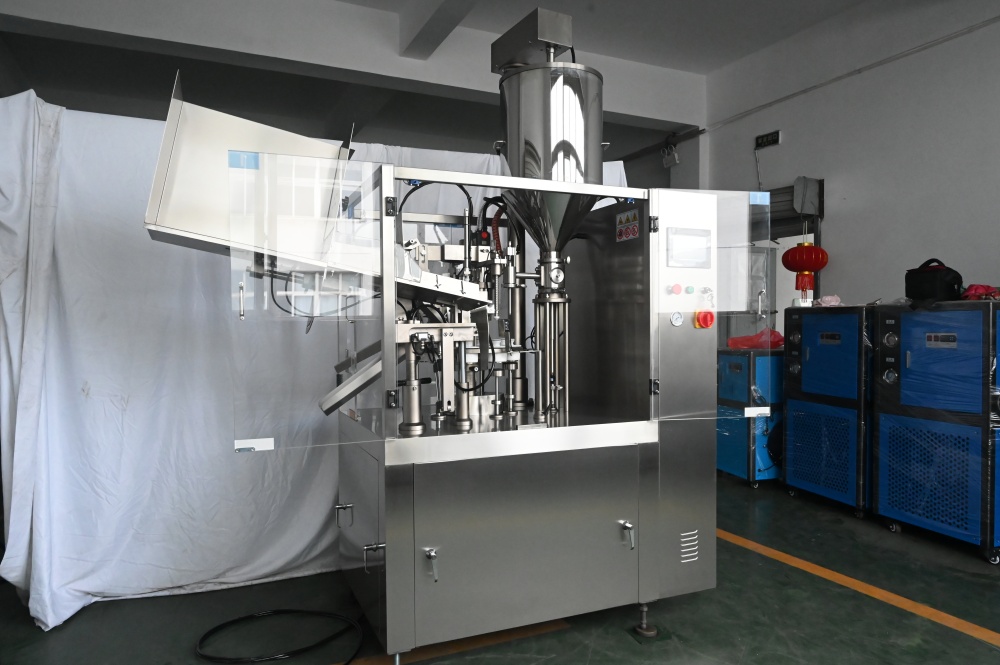

Finetech’s Cosmetic Tube Filling and Sealing Machine is built for controlled tube filling and sealing across cosmetic production lines. Our system is configured to process plastic, laminate, and aluminum-plastic tubes.
The machine structure features a PLC control system with a 7-inch touchscreen and features both hot air and ultrasonic sealing methods. Moreover, it includes a 30-40 L hopper, operates at 0.55-0.65 MPa air pressure, and runs on a 380 V / 220 V power supply.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Parts Name
FAQ
Application Product Types
Reviews No reviews yet
- Precision Filling Control: Equipped with a servo-driven system that delivers accurate and repeatable filling across every tube. Maintains consistent dosing with minimal variation during operation.
- Flexible Filling Range: This machine offers an adjustable filling volume from 5 to 250 ml to match different product requirements.
- Dual Sealing Technology: Combines hot air and ultrasonic sealing methods with multiple fold styles, including double, triple, and saddle fold. Produces clean and uniform seals across different tube materials.
- Scalable Production Output: Operates at 30-60 tubes per minute under standard configuration. There are higher-speed models, too, that have a speed of up to 120 tubes per minute.
After-Sales Support: You not only get the machine but also get proper technical guidance, easily available spare parts, and service support for long-term operation.
| Item | Standard Model (30–60 tubes/min) | High-Speed Model (80–160 tubes/min) | Ultra-High-Speed Model (160+ tubes/min) |
| Applicable Tube Materials: | Plastic tube, laminate tube, aluminum-plastic tube | Plastic tube, laminate tube, aluminum-plastic tube, aluminum tube (optional) | Plastic tube, laminate tube, aluminum-plastic tube |
| Tube Diameter: | 10–50 mm (customizable) | 10–55 mm (customizable) | 10–50 mm (customizable) |
| Tube Length: | 50–210 mm (customizable) | 50–240 mm (customizable) | 50–250 mm (customizable) |
| Filling Volume: | 5–250 ml (adjustable) | 2–300 ml (adjustable) | 1–350 ml (adjustable) |
| Filling Accuracy: | ≤±1% | ≤±0.5% | ≤±0.5% |
| Production Capacity: | 30–60 tubes/min | 80–120 tubes/min | 160–200 tubes/min |
| Sealing Method: | Hot air sealing, ultrasonic sealing | Hot air sealing, ultrasonic sealing, hot jaw sealing | Hot air sealing, ultrasonic sealing |
| Sealing Style: | Double fold, triple fold, saddle fold | Double fold, triple fold, saddle fold | Double fold, triple fold |
| Control System: | PLC + touch screen (7-inch) | PLC + touch screen (10-inch) | PLC + touch screen (12-inch) |
| Hopper Capacity: | 30–40 L | 40–50 L | 50–60 L |
| Main Motor Power: | 1.5–2.2 kW | 2.2–3.0 kW | 3.0–4.0 kW |
| Sealing Power: | 3.0 kW | 3.0–6.0 kW | 6.0–8.0 kW |
| Working Air Pressure: | 0.55–0.65 MPa | 0.55–0.65 MPa | 0.55–0.65 MPa |
| Air Consumption: | 0.1–0.15 m³/min | 0.15–0.2 m³/min | 0.2–0.25 m³/min |
| Power Supply: | 380 V/220 V, 50/60 Hz | 380 V/220 V, 50/60 Hz | 380 V/220 V, 50/60 Hz |
| Machine Dimensions (L×W×H): | 1900×800×1800 mm | 2600×1000×2000 mm | 3200×1300×2400 mm |
| Machine Weight: | 500–700 kg | 1000–1200 kg | 1500–1800 kg |
| Material Contact Parts: | 316L stainless steel | 316L stainless steel | 316L stainless steel |
| Compliance: | GMP, CE | GMP, CE | GMP, CE |
It supports plastic tubes, PE tubes, laminated tubes, aluminum-plastic composite tubes, widely used for cosmetic, skincare, toothpaste, ointment, and hand cream tubes.
Suitable for cream, lotion, gel, cleanser, serum, ointment, hair wax, toothpaste, and other viscous pastes.
Common models: 5–250ml (customizable for 1ml–500ml).
- Semi-automatic: 300–800 tubes/hour.
- Fully automatic: 1,500–6,000 tubes/hour.
Simply change the tube holder / mould set.
Change time: 10–20 minutes, easy operation.
