Tube Filling and Cartoning Machine
Our Tube Filling and Cartoning Machine is designed for automatic tube filling, sealing, and secondary cartoning operations. The system is commonly used for creams, gels, ointments, toothpaste, cosmetic products, adhesives, and pharmaceutical semi-solid materials. These are packed in plastic, laminated, or aluminum tubes.
The machine integrates tube loading, filling, sealing, batch coding, trimming, carton forming, leaflet insertion, and final cartoning functions. Depending on the product viscosity and tube size, our tube filling and cartoning machine can fill and pack 120 tubes per minute.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Tube Cartoning Line Machines
FAQ
Application
Reviews No reviews yet
- Servo-Controlled Filling Accuracy: Servo-driven filling systems help maintain stable dosing performance for creams, gels, ointments, and semi-solid products. More controlled filling movement also reduces overflow.
- Hot Air and Folding Sealing Options: Hot air sealing systems support plastic and laminated tubes, while folding and crimping systems are available for aluminum tube applications.
- Automatic Carton Forming: Carton opening, leaflet insertion, product loading, and carton sealing functions operate automatically after tube packaging. This reduces manual secondary packaging work.
- PLC Touchscreen Control System: Operators can adjust filling volume, production speed, sealing temperature, and packaging settings.
- Installation and Technical Support: We provide installation guidance, operator training, and technical assistance after machine delivery. Spare parts support and troubleshooting services are also available for manufacturers.
| Item | Specification |
| Machine Model: | Integrated Automatic Tube Filling & Cartoning Machine |
| Applicable Tube Type: | Laminated tube, plastic tube, aluminum tube |
| Tube Diameter: | Φ10 mm – Φ50 mm |
| Tube Length: | 50 mm – 240 mm |
| Filling Volume: | 5 ml – 500 ml |
| Filling Accuracy: | ±0.5% ~ ±1% |
| Production Speed: | 30 – 300 tubes/min (adjustable) |
| Filling System: | Servo piston filling |
| Sealing Method: | Heat sealing (plastic/laminated tube); Fold & crimp sealing (aluminum tube) |
| Carton Size Range (L×W×H): | Customizable, standard: (60–220) × (30–110) × (20–100) mm |
| Carton Speed: | Matched with tube output, synchronous operation |
| Coding Function: | Support inkjet date/batch number coding |
| Contact Material: | 316L stainless steel |
| Frame Material: | 304 stainless steel |
| Control System: | PLC + HMI touch screen |
| Air Pressure: | 0.4 – 0.6 MPa |
| Power Supply: | 380V/220V, 50/60Hz, 3-phase |
| Total Power: | 4.5 KW – 12 KW (depends on model) |
| Overall Dimension (L×W×H): | Standard: 4200 × 1500 × 1800 mm |
| Machine Weight: | 1800 kg – 3200 kg |
| Compliance Standard: | GMP, CE |
| Applicable Products: | Ointment, cream, gel, toothpaste, food paste, adhesive, daily chemical paste |

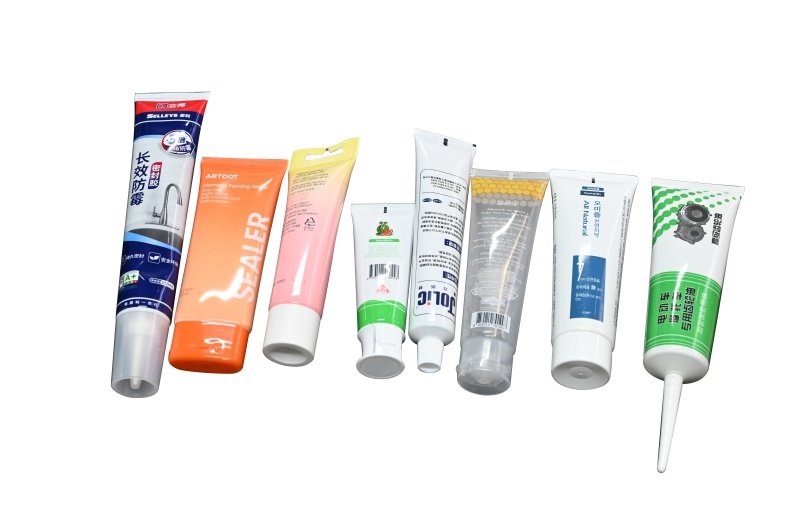

- Plastic: HDPE, PET, PP.
- Laminated/Composite: Plastic-aluminum foil (cosmetics/pharma).
- Aluminum: Fold-and-crimp seal (toothpaste, ointments).
- Cosmetics: Creams, lotions, gels, serums.

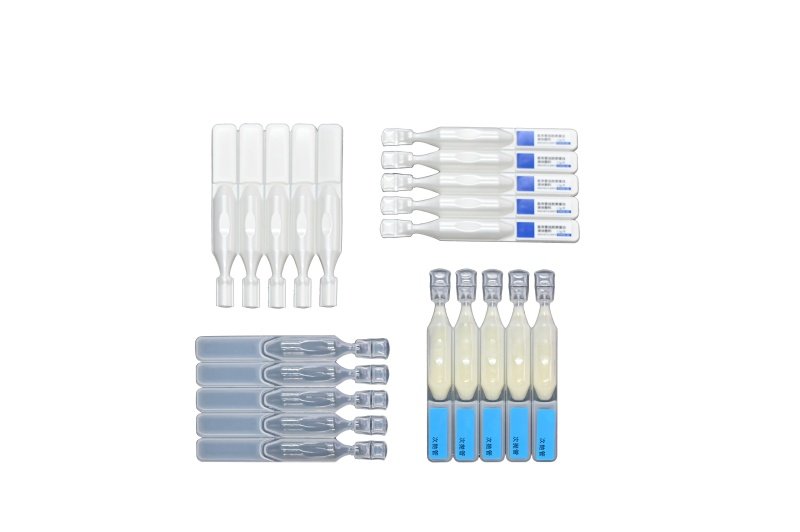

- Pharmaceuticals: Ointments, creams, gels, oral pastes.
- Food: Sauces, spreads, purees.
- Chemicals: Adhesives, greases, paints.
Standard: ≤ ±0.5% (volumetric or servo-piston)
- Filling: 30–80 tubes/min (semi-auto); 80–300 tubes/min (full-auto).
- Cartoning: 60–300 cartons/min (horizontal cartoner).

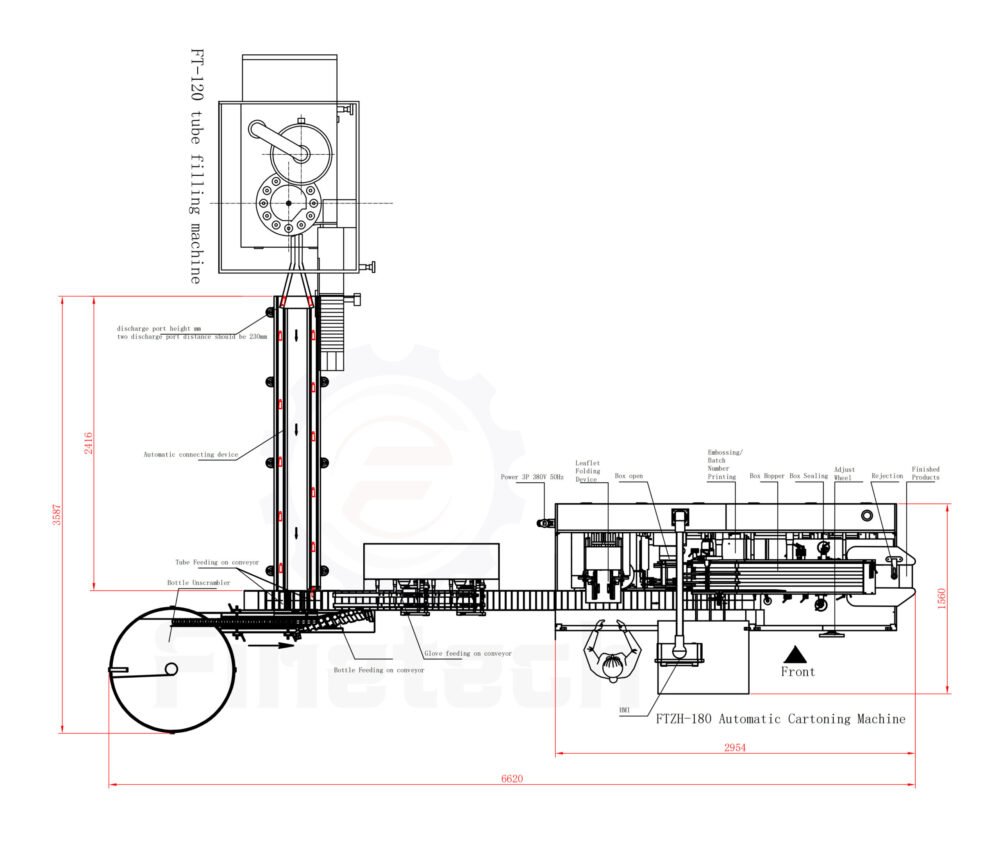

Yes. All-in-one line: Tube loading → orientation → filling → sealing → coding → cartoning → closing.
- Power: 220V/380V, 50/60Hz, 1.5–4.5kW.
- Air: 0.5–0.7 MPa, 0.3–0.6 m³/min (dry, clean).
GMP, ISO 9001, CE; 316L stainless steel contact parts.
- MOQ: 1 unit
- Lead time: 30–60 days (standard); 60–90 days (custom)
