DPP-80 Blister Packing Machine
Package tablets and capsules in individual blister packs with Finetech’s DPP-80 blister packing machine. This compact automatic system combines controlled material feeding with adjustable operating speed for pharmaceutical and supplement packaging. Custom blister tooling lets you match the cavity layout to your product, while optional inspection and print-registration systems provide additional control over pack completeness and printed artwork alignment. It is a practical option when production space and pack flexibility matter.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application
Reviews 7 Reviews
Videos
Working Principle
User Manual
Adjustable packaging output: A rated capacity of approximately 2,000 blister sheets per hour, based on one sheet per cycle, supports routine batch packaging. Variable-frequency speed control lets operators adjust the production pace.
Product-specific blister formats: The maximum forming area is 70 × 100 mm, with a standard maximum forming depth of 12 mm. Customized depth and tooling can be discussed for your product dimensions.
Coordinated material feeding: Photoelectric control synchronizes packaging material feeding across machine stations. The system also incorporates automatic waste-edge punching.
Chain-driven transmission: A drive chain powers the main transmission shaft to coordinate machine movement. This arrangement supports steady operation throughout the packaging cycle.
Optional missing-product inspection: Tablet-missing detection and rejection can be specified to identify incomplete packs. Material-missing compensation is also available.
Optional printed-film registration: Photoelectric registration correction with stepper-motor traction helps align printed text and graphics with the blister format. Specify this option when packaging appearance requires controlled print positioning.
| Model | DPP-80 Blister Packing Machine |
| Production Capacity | 2000 plates/hour(based on 1 sheet per cycle) |
| Cutting Frequency | 10-33 times/minute |
| Max. forming area | 70×100mm |
| Max. forming depth | 12mm(depth can be customized as per customer requirements) |
| Size of standard plate | 80x57mm |
| Power supply | 380V/220V 50Hz, 1.8 kW |
| Main motor | 0.75Kw |
| Air demand | ≥0.2m³/min |
| Air pressure | 0.6-0.8 MPa |
| Dialysis paper | 50-100 gsm ×80 mm |
| Cooling of mold | Tap water or cycling water |
| Noise Level | ≤75 dBA |
| Overall size | 1400×460×950 mm (L×W×H) |
| Weight | 450Kg |

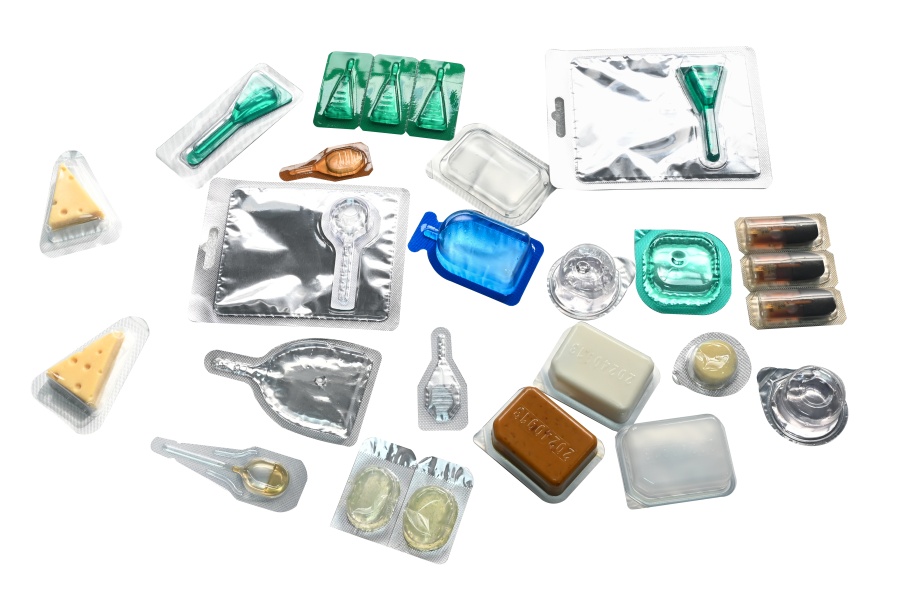

Pharmaceuticals: Packaging of tablets, capsules, softgels, and lozenges.
Food Industry: Packaging of candies, chewing gum, and small snacks.
Consumer Goods: Packaging of small hardware items, electronic components, etc.
Forming Film: Typically PVC, PVC/PVDC, Aclar, PP, ALU (for deep draw), and other thermoformable materials.
Sealing Lidding: Typically PAPER/ALU/PE (cold-form foil), ALU/ALU (for high barrier), PVC/ALU, and other heat-sealable laminates.
The DPP-80 can achieve speeds of up to 80 cycles per minute, depending on the product, blister size, and tooling.
It features independent digital PID temperature controllers for the upper (sealing) and lower (forming) heaters, allowing for precise and stable temperature control crucial for a good seal.
This is tooling-dependent, but a standard DPP-80 typically handles a web width up to 130mm and a maximum blister pocket drawing depth of around 15-18mm. Always check your machine's specific specifications.
Customer Reviews
We switched to this blister packing machine because it handles both Al-Al and Al-PVC packaging seamlessly. The flexibility lets us choose the barrier level we need for different products. Sealing is consistent, changeovers are fast, and we’ve cut material waste by 20%. Perfect for our varied product lines.
This blister packing machine works really great! Fast speed and stable running, packing effect is neat and beautiful.
Compact design saves space. English interface, operators learn in 1 day. Works with powder & granules. GMP compliant, easy validation.
The packs come out tidy and solid, makes shipping feel a lot more confident.
Super easy to operate
