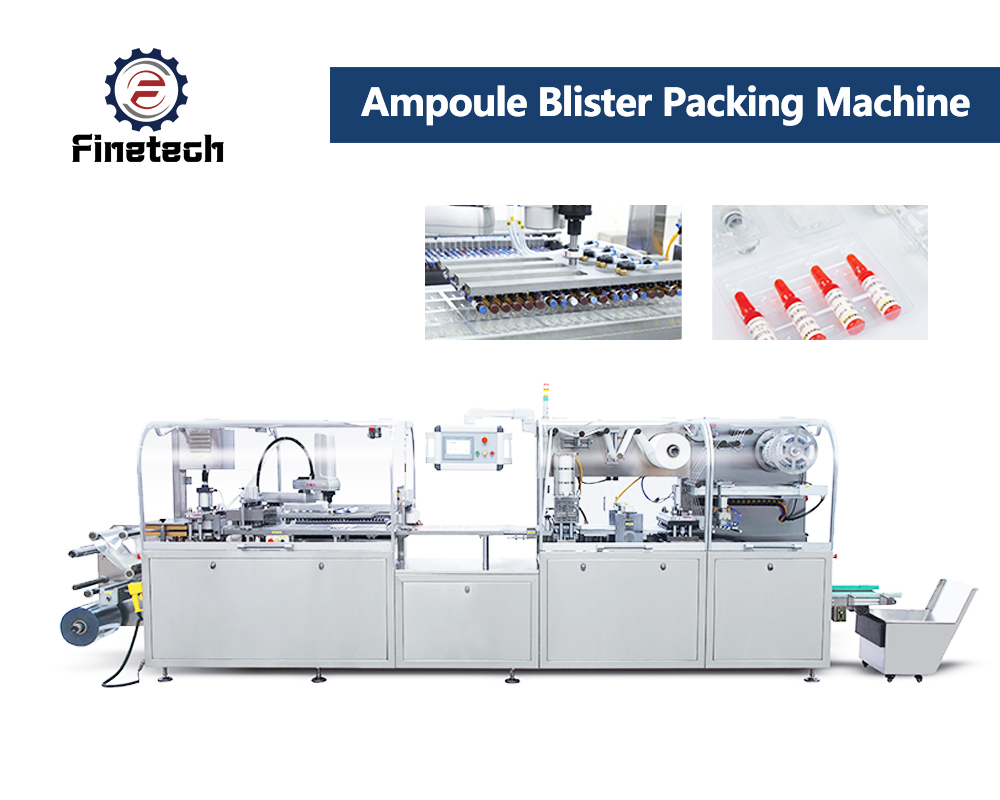

Ampoule Blister Packing Machine
Our Ampoule Blister Packing Machine is built to form, load, seal, and cut ampoules, vials, and similar fragile products into secure blister packs. Designed for pharmaceutical packaging lines, the machine handles delicate glass ampoules with controlled feeding and positioning.
It supports Alu-PVC blister packaging and integrates forming, feeding, detection, sealing, and cutting on one machine platform. As for the structure, it is built for industrial use, with dimensions of 4800 x 1250 x 1650 mm and a weight of approximately 1500 kg.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application
Reviews No reviews yet

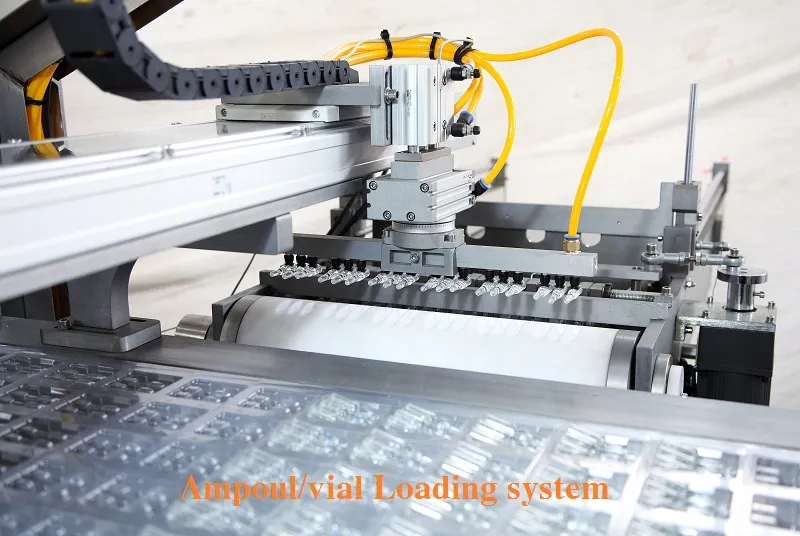

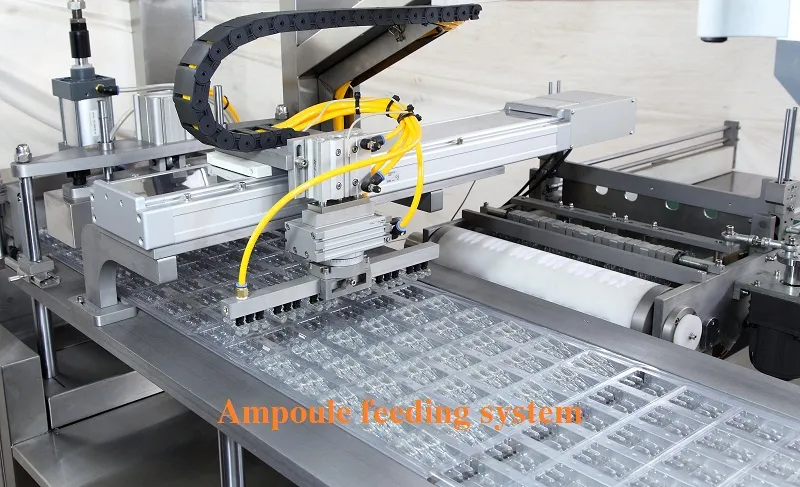

- Dedicated Ampoule Feeding System: Equipped with a specialized feeder and detection system to position ampoules accurately before sealing. This improves the handling of delicate glass products.

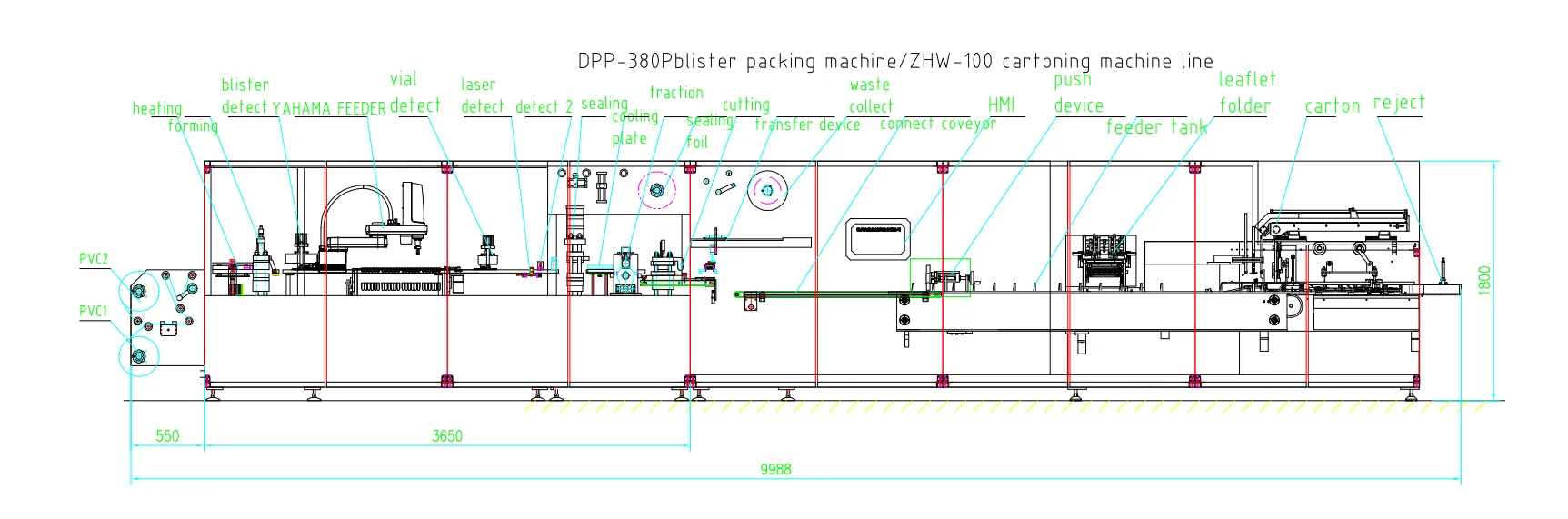

Ampoule Blister Packing Line Diagram. - Easy to Use Operation: PLC interface brings all machine controls to one screen. Operators can adjust stroke length, temperature, and speed without complex mechanical changes.

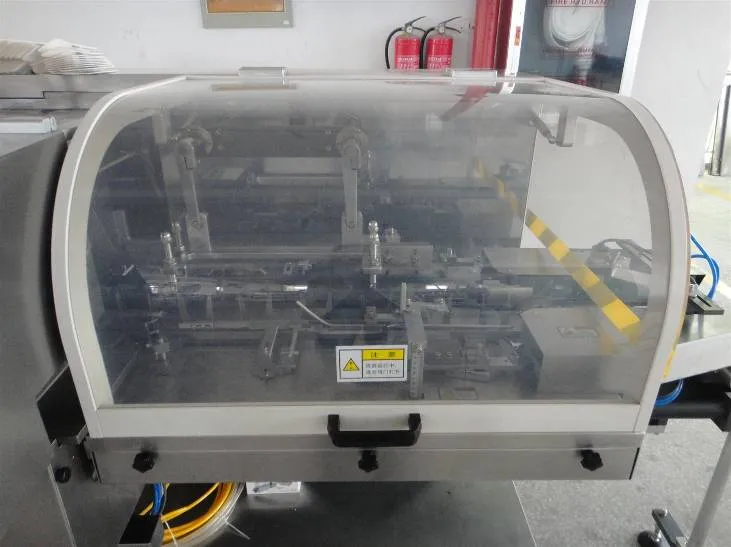

- Built-in Safety Protection: Safety covers and interlock systems protect operators during operation. The machine stops automatically if unsafe conditions are detected.
- Industrial-Grade Components: Uses reliable components such as Siemens PLC, servo motors, and SMC pneumatic systems. This supports stable long-term performance under continuous production conditions.
- Reduced Breakage Handling System: Compared to basic blister machines, this machine uses controlled feeding and detection to handle ampoules more carefully.
| Maximum Cutting Frequency: | 25 times/minute |
| Maximum Working capacity: | DPP-250P: 100 blisters/min; DPP-380P: 150 blisters/min |
| Stroke: | Standard ≤130mm (according to customer’s request) |
| Maximum forming area: | DPP-250P: 245×130×35mm; DPP-380P: 345×130×35mm |
| Power supply: | 3-phase 4-wire, 380V 50Hz (220V 60Hz); 380V or 220V(choose by client) |
| Total power: | DPP-250P: 6kw; DPP-380P: 7kw |
| Dimension of the machine: | 4200×1400×1700mm (L × W × H) |
| Weight: | DPP-250P: 2000kg; DPP-380P: 2500kg |

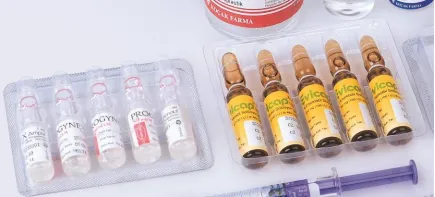

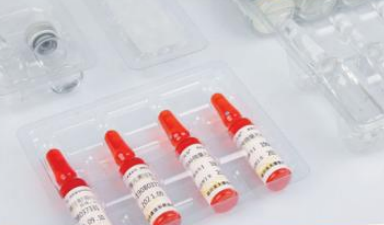

1–20ml glass ampoules, plastic ampoules, injection vials, oral liquid bottles, small medical devices, and similar cylindrical/long-strip products.
PVC/PVDC/PE rigid sheets + aluminum foil (alu‑PVC); alu‑alu cold forming foil; composite pharmaceutical films.
- DPP‑250P: up to 100 blisters/min
- DPP‑380P: up to 150 blisters/min
- DPP‑250P: 245×130×35 mm
- DPP‑380P: 345×130×35 mm
Yes.
3‑phase 4‑wire 380V 50Hz; can also be customized to 220V 60Hz.
Replacing the forming and sealing molds/dies.
Changing the feeding parts (vibratory bowl, tracks).
Adjusting the film indexing length and heating temperatures.
With proper training and organization, changeovers can typically be completed in 30-60 minutes.
3–5 years
Forming Mold: Creates the pockets in the blister film.
Sealing Mold: Seals the lidding foil to the formed blister.
Punching Mold: Cuts the finished blister into the final strip format (e.g., 2x4, 3x3).
Product Feeding Parts: Custom vibratory bowl and conveying tracks.
