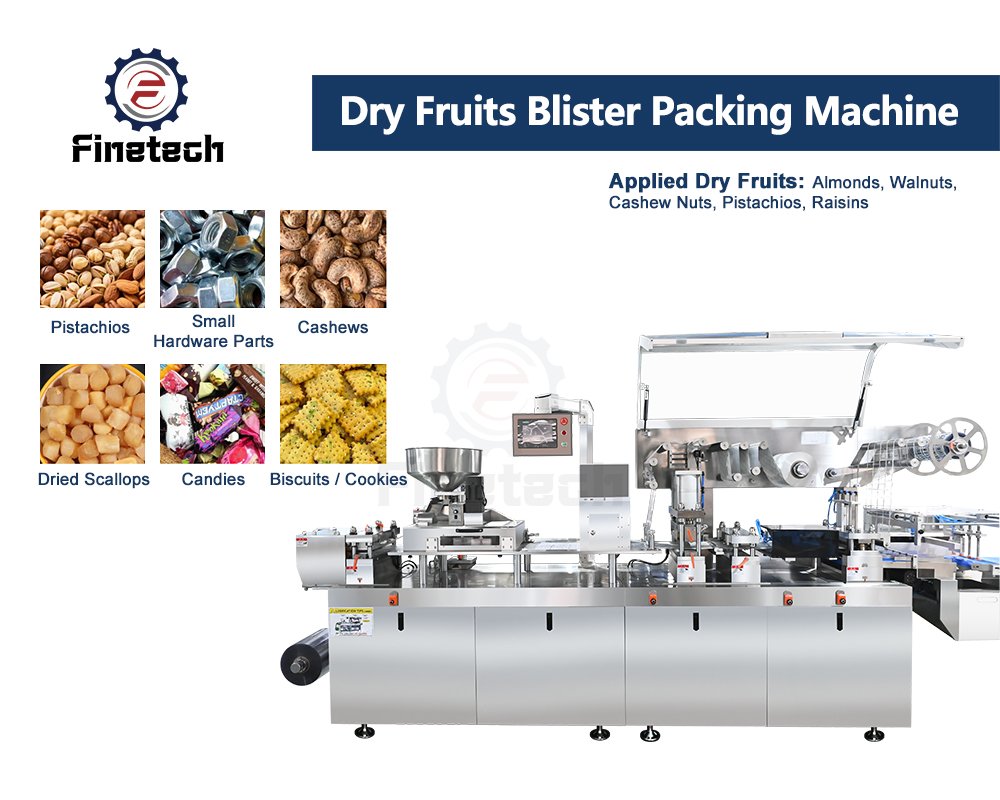

Dry Fruits Blister Packing Machine
Finetech’s Dry Fruits Blister Packing Machine is designed for organized blister packaging of almonds, cashews, pistachios, raisins, dates, and mixed dry fruit products. The machine supports PVC, PET, and aluminum-based blister materials.
It can also be configured for different tray layouts and cavity dimensions depending on packaging requirements. With a PLC-controlled operation and a touchscreen, the machine supports a standard production speed of 15-35 cycles per minute based on blister format and product size.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application
Reviews No reviews yet
Videos
- Multiple Blister Format Support: This dry fruits blister packing machine supports adjustable blister dimensions and cavity layouts for different retail packaging styles. Forming width can reach up to 260 mm, depending on configuration.
- Heat-Controlled Sealing System: The sealing unit operates with adjustable temperature settings to maintain proper sealing across PVC and aluminum materials.
- Compact Industrial Structure: Built with a space-efficient frame suitable for food packaging environments with limited floor space. The machine structure maintains stable operation without requiring a large area.
- Low Maintenance Setup: Important operating sections such as sealing plates, forming stations, and feeding components are arranged for easier servicing and cleaning during maintenance.
- One-Year Warranty Coverage: We provide a one-year warranty covering manufacturing defects and standard technical issues under normal operating conditions. Technical assistance and spare parts support are also available after installation.
| Item | Technical Specification |
| Machine Name: | Automatic Dry Fruits Blister Packing Machine |
| Applicable Products: | Almond, cashew, pistachio, walnut, hazelnut, raisin, dried date, dried fig, mixed dry fruits and other granular/block dried snacks |
| Blister Material: | Food grade PVC, PET, PP, PETG transparent blister sheet |
| Cover Sealing Material: | Aluminum foil film, composite sealing film, paper-aluminum plastic film |
| Forming Depth: | 5–35mm (customizable) |
| Blister Cavity Size: | Customized cavity shape & size according to dry fruit dimension |
| Production Capacity: | 15–30 cycles/min |
| Filling Method: | Automatic quantitative feeding + manual auxiliary feeding optional |
| Sealing Type: | Hot pressure sealing, full edge tight sealing |
| Cutting Mode: | Whole row punching, die-cutting, automatic waste edge removal |
| Control System: | PLC + human-machine touch screen operation |
| Transmission System: | Frequency conversion speed regulation, step servo drive |
| Heating System: | Constant temperature heating, adjustable temperature |
| Material of Machine Frame: | Carbon steel with spray coating / SUS304 stainless steel optional |
| Food Contact Parts: | SUS304 stainless steel, food grade anti-corrosion material |
| Air Pressure Requirement: | 0.6–0.8 MPa |
| Power Supply: | 380V 50Hz 3Phase (custom voltage available) |
| Total Power: | 6.5–12 KW |
| Machine Overall Dimension: | 3200×750×1650 mm (customized) |
| Machine Weight: | 950–1300 KG |
| Core Functions: | Moisture-proof, dust-proof, anti-oxidation, anti-extrusion, single grid independent packaging |
| Optional Device: | Date printer, waste recycling device, dust removal system, safety protection cover |
| Compliance Standard: | CE certification, food hygiene production standard |
It is mainly used for all kinds of dry fruits like almonds, cashews, walnuts, raisins, pistachios, dried berries, also suitable for nuts, snacks, small granular food and similar food items.
Compatible with PVC, PET, aluminum plastic film, aluminum foil blister materials.
Yes.
20 to 60 blister packs per minute.
Sure. We support custom blister cavity size, packing layout and finished pack specifications to match your products.
Equipped with PLC touch screen control, simple parameter setting.
Yes. We offer overseas installation guidance, operation training, spare parts supply and long-term technical support.
