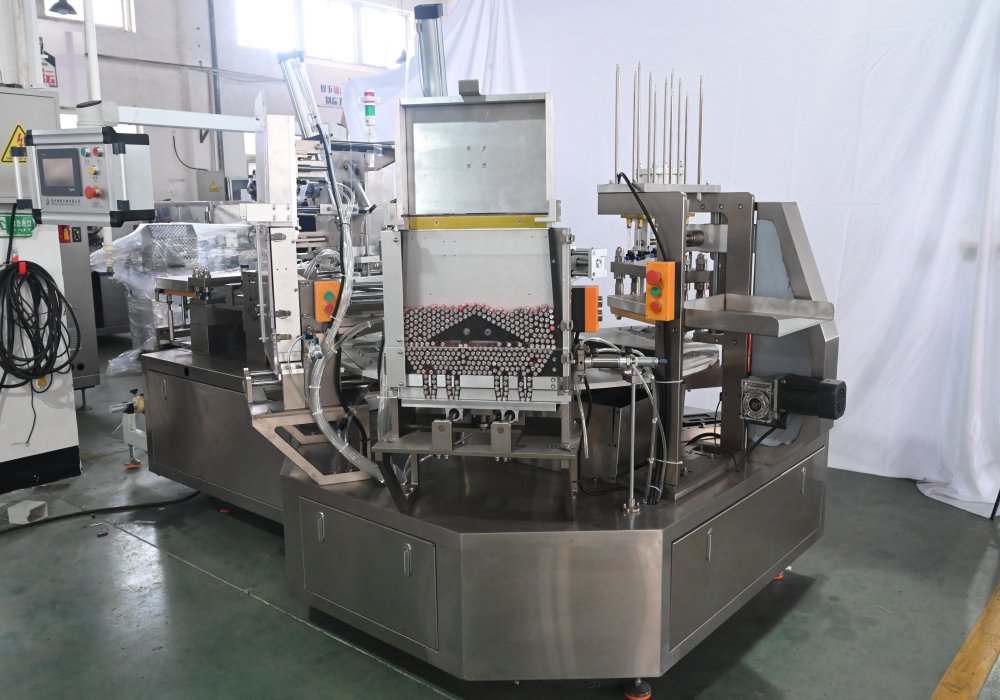

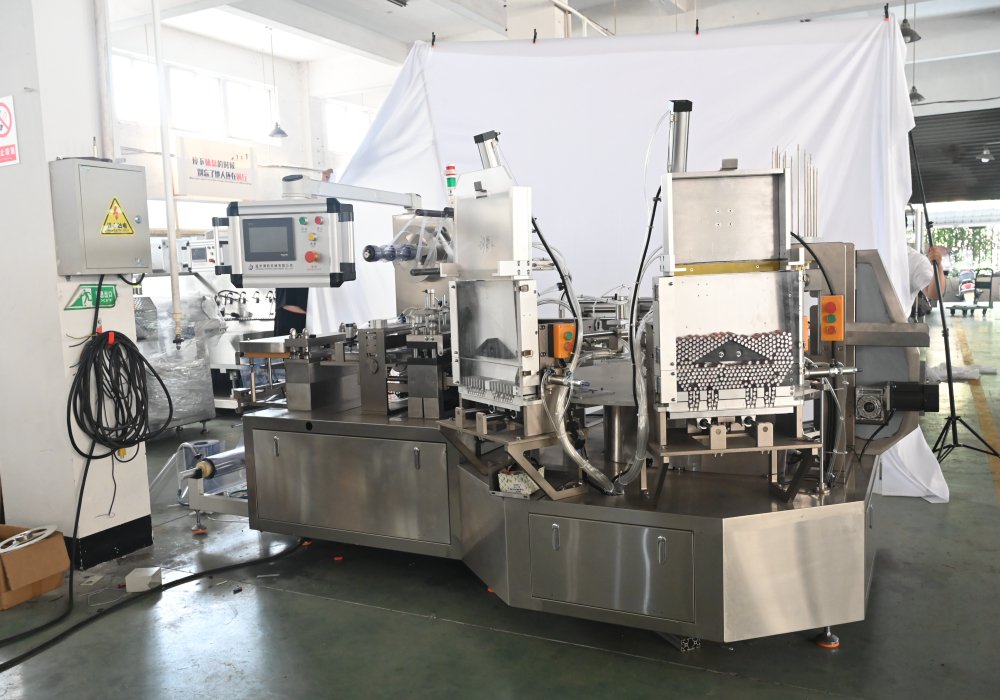

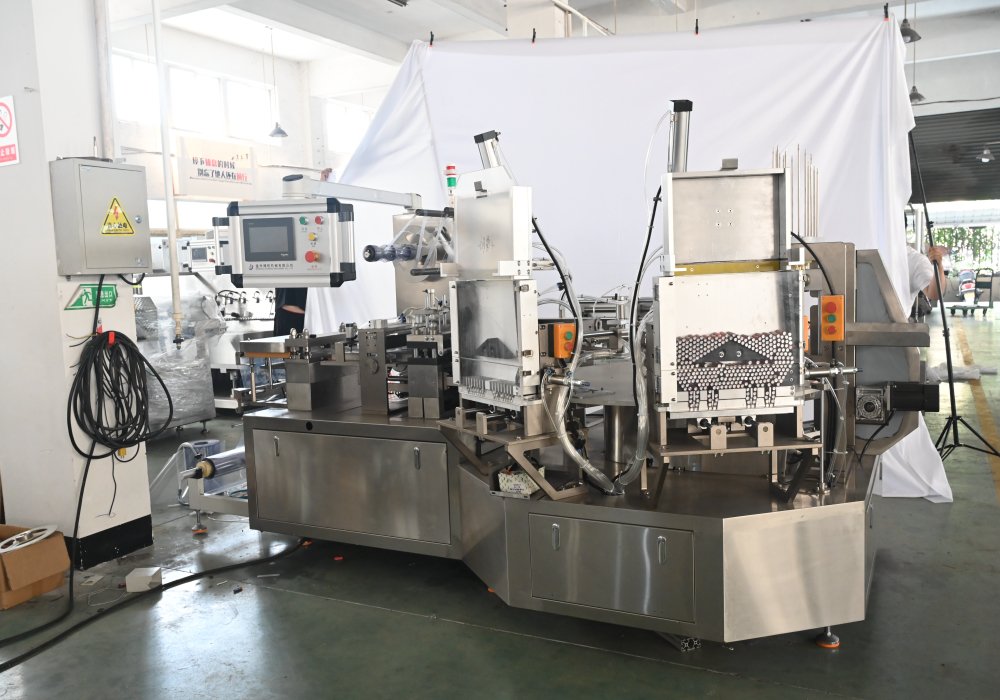

Rotary Blister Packing Machine
Our Rotary Blister Packing Machine is designed for high-speed blister packaging of tablets, capsules, softgels, ampoules, syringes, and other solid-dose products. Unlike flat-plate blister machines, rotary machines use continuously rotating forming and sealing stations.
The machine forms blister cavities from PVC, PVDC, PET, PP, or aluminum-based materials before placing products into each pocket and sealing them with lidding foil. Additionally, depending on the model, production capacities typically range from 10,000 to over 300,000 blister packs per hour.
Need a Cutsom Quote
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
FAQ
Machine Parts Name
Applied Blister Pack Types
Reviews No reviews yet
- Servo-Driven Indexing: Servo motors control material movement and positioning throughout the packaging cycle. This improves blister alignment and helps reduce material waste during production.
- Precision Heat-Sealing Technology: Temperature-controlled sealing stations apply consistent pressure and heat across the blister pack. It protects products from moisture, contamination, and environmental exposure.

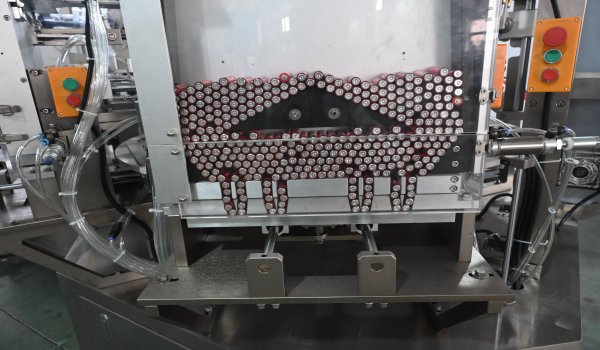

- Automatic Product Feeding Systems: You can equip our machine with dedicated feeding systems for tablets, capsules, softgels, and other products.
- Integrated Vision Inspection: Camera-based inspection systems can monitor product presence, cavity fill accuracy, print quality, and sealing integrity during operation. Early defect detection simply reduces rejected products later.
- Includes Batch Coding and Printing: Our machine can incorporate batch number, expiry date, and serialization printing systems. It helps meet regulatory and traceability requirements.
| Model | FT-260S | FT-300 | FT-350 |
| Max Speed: | 120 blisters/min | 150 blisters/min | 200 blisters/min |
| Max Forming Area: | 260×220 mm | 210×102 mm | 260×250 mm |
| Max Forming Depth: | PVC: 14 mm; Alu Alu: 12 mm | 10 mm | Alu Plastic:14 mm; Alu?Alu:12 mm |
| Max Web Width: | 260 mm | 146 mm | 270 mm |
| Power Supply: | 380V, 3-phase, 50Hz | 380–415V, 3-phase, 50Hz | 380V, 3-phase, 50Hz |
| Power Consumption: | 24 kW | 7.5 kW | 20 kW |
| Air Pressure: | 0.6–0.8 MPa | 0.6–0.8 MPa | 0.6–0.8 MPa |
| Air Consumption: | 500 L/min | 400 L/min | 600 L/min |
| Machine Weight: | 2,200 kg | 1,050 kg | 3,000 kg |
| Dimensions (L×W×H): | 3550×1100×1950 mm | 3100×1100×2000 mm | 4600×1200×2200 mm |
Main packaging materials: PVC, PVC/PVdC composite film, cold-form aluminum foil, tropical aluminum, hard aluminum foil.
Pharmaceutical & healthcare: Tablets, hard/soft capsules, effervescent tablets, pills, gummies, lozenges.
Non-pharma turntable rotary model: Hardware parts, button batteries, toothbrushes, small toys, cosmetic accessories.
Standard DPH rotary blister machine: 80–240 blister plates per minute. Custom high-speed versions can reach 300 plates/min.
100% customizable.

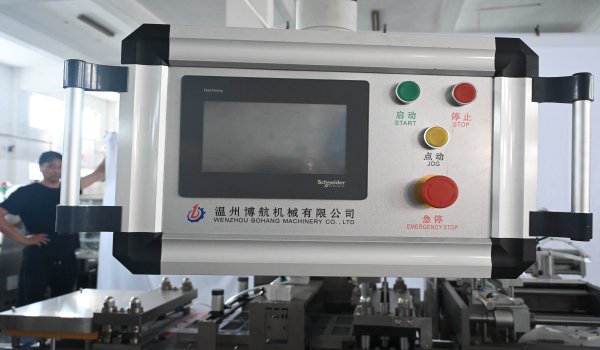

PLC + color touch screen with servo drive system.
Simple operation.
Standard model: 15–20 working days. Custom high-speed full-automatic model: 25–35 working days. Sea, air and door-to-door logistics are available.
