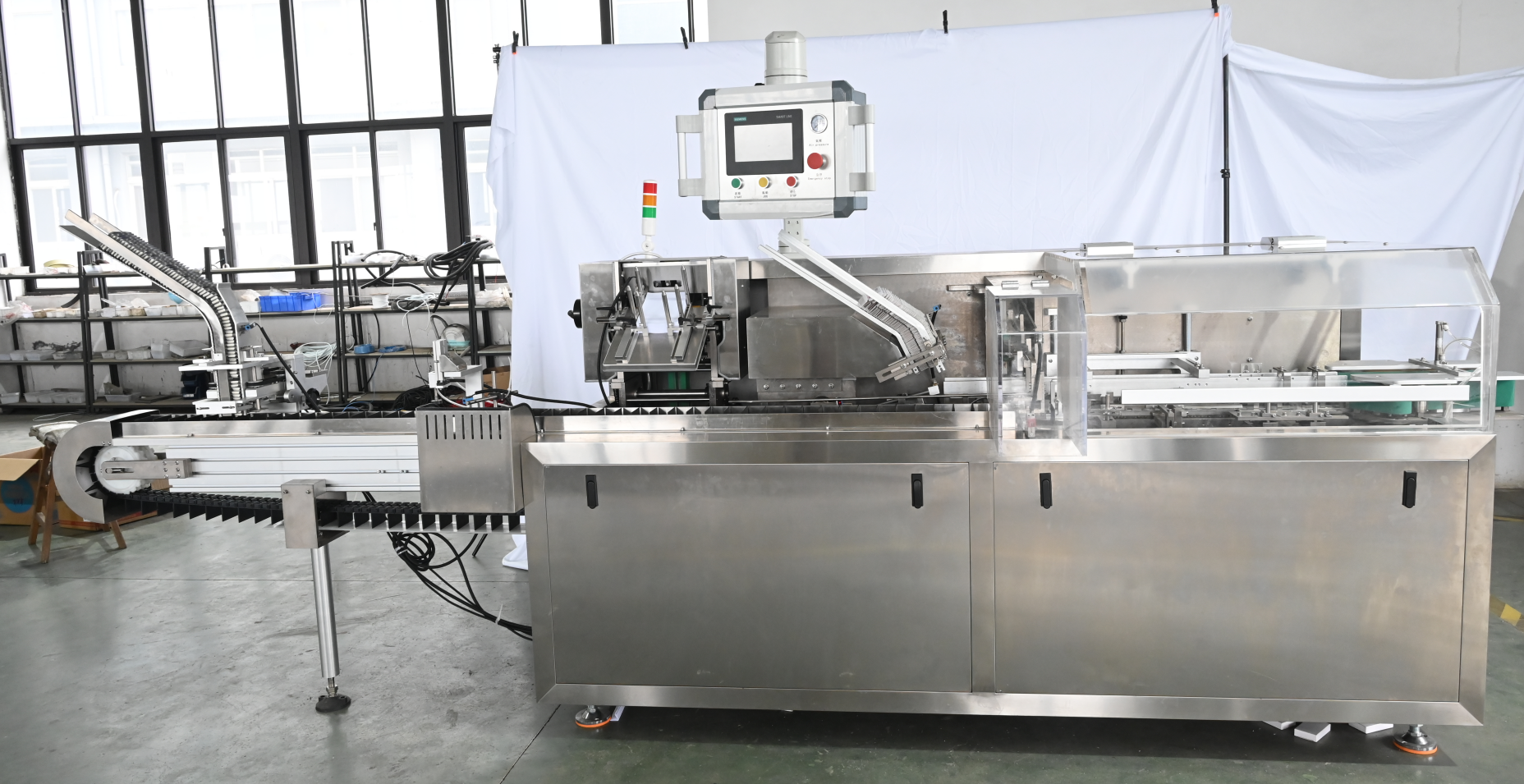

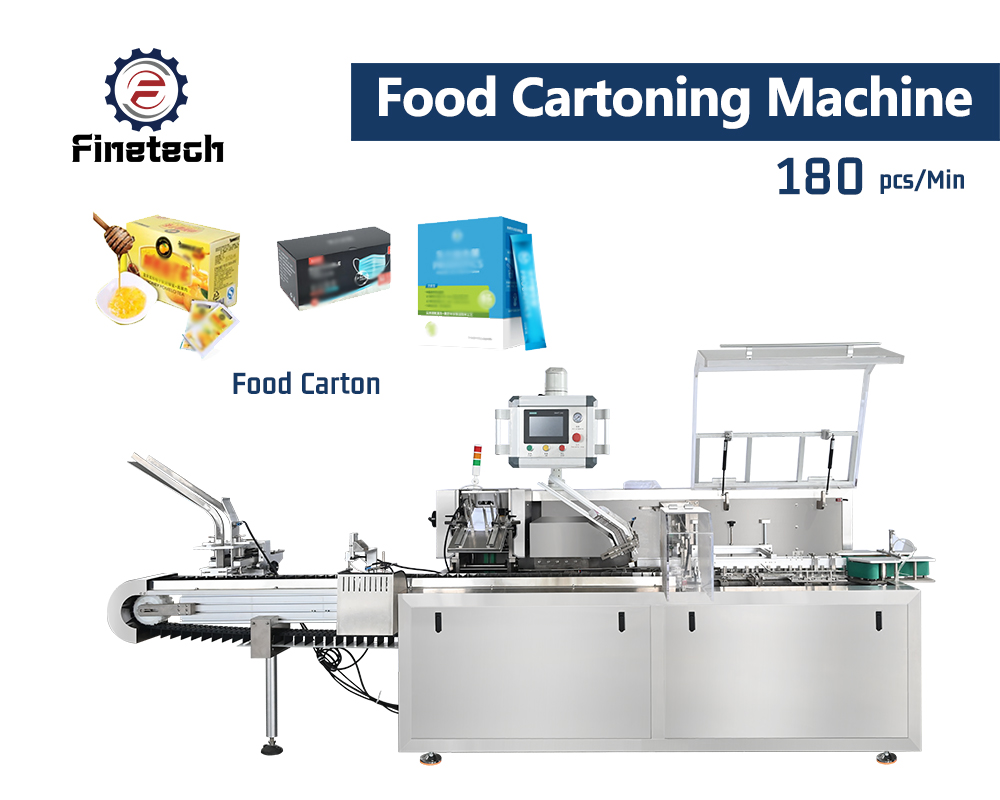

Food Cartoning Machine
Our Food Cartoning Machine automatically packs food products into cartons to guarantee secure secondary packaging. These machines are built to meet strict hygiene and safety requirements that are essential in food-grade environments.
It uses modern systems that combine mechanical, pneumatic, and electronic components to synchronize carton forming, loading, and sealing. Moreover, depending on the setup, food cartoning machines can operate at speeds ranging from 50 to 300 cartons per minute. We also have high-speed systems that reach even higher outputs.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application
Reviews No reviews yet
- Food-Grade Construction: These machines are typically built using stainless steel (SS304 or SS316), which meets food safety standards. The design allows easy cleaning and prevents contamination.
- Horizontal and Vertical Loading Options: The machine can be configured for side-loading or top-loading. Horizontal systems are ideal for wrapped or solid items, while vertical systems are used for gravity-fed products.
- Multiple Sealing Methods: Supports tuck-in flap closure and hot melt glue sealing depending on packaging requirements.
- Integration with Food Packaging Lines: This machine can connect with upstream equipment like flow wrappers or filling machines. It also integrates with downstream case packers and palletizers.
- PLC-Based Control System: A PLC control unit combined with a touch-screen HMI allows operators to manage speed and carton dimensions. Most systems support multi-language interfaces.
| Product Name / Item/Model | Food Cartoning Machine |
| Packing Speed: | 180 cartons/Min |
| Maximum Carton Size: | L220×W60×H50mm |
| Minimum Carton Size: | L70×W20×H15mm |
| Carton Paper Requirement: | 200–350g/m² food-grade white cardboard, kraft paper (food contact safe) |
| Motor Power: | 0.7kW |
| Power Supply Type: | 220V/110V, 50/60Hz, Single-phase |
| Machine Noise: | ≤65 dB(A) |
| Air Source: | Not required |
| Air Consumption: | 0.02–0.04 m³/min |
| Overall Dimensions: | 1100×750×1450 mm (L×W×H) |
| Overall Weight: | 110 kg |
Yes.
Yep, you can via the contact us page to share your special requirement.
