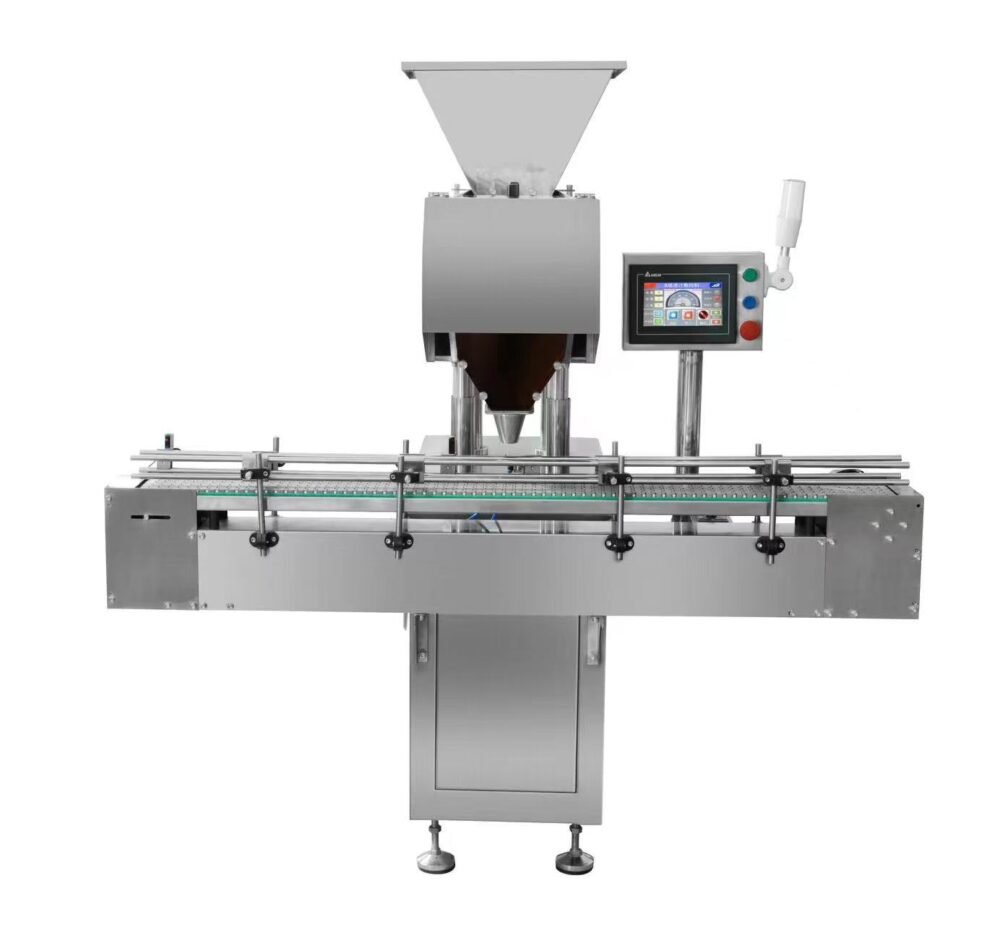

Gummy Counting Machine
This Gummy Counting Machine is developed for accurate counting and bottling of gummies, soft candies, vitamin gummies, and other sticky edible products. Unlike standard tablet counters, this machine is configured specifically for handling soft and adhesive materials that normally create counting issues.
The system uses vibratory feeding channels, photoelectric counting sensors, and anti-clumping mechanisms to maintain stable separation. It supports gummies ranging from 2 mm to 35 mm in size and can operate at speeds of up to 80 to 120 bottles per minute.
主な特徴
技術データ
機械部品名
よくある質問
応用
レビュー まだレビューはありません

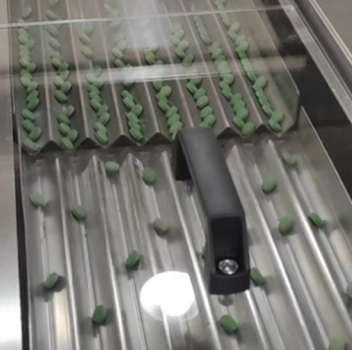

- Anti-Clumping Feeding Design: Sticky gummies overlap or stick together during production. To solve this, the machine uses anti-clumping structures and controlled vibratory feeding channels.

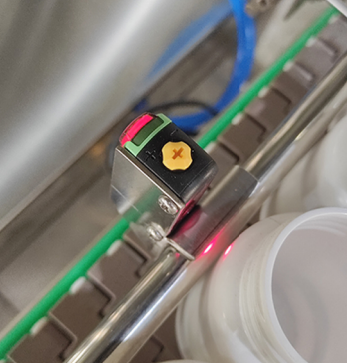

- 高い計数精度: Photoelectric sensors and intelligent counting systems detect each gummy individually. Most configurations maintain counting accuracy above 99.8%.
Gummy Counting Machine Diagram. - Supports Sticky and Coated Gummies: The machine is suitable for sugar-coated, oiled, sanded, pectin, and vitamin gummies. Special vibratory tracks and PTFE-coated sections help reduce sticking.
- 調整可能な生産能力: Production speed can be adjusted based on gummy size, bottle count, and product type.
- Easy Cleaning and Maintenance: The feeding channels, hopper sections, and discharge components are arranged for easier cleaning. This helps reduce downtime during cleaning schedules and product changeovers.
| アイテム | 技術仕様 |
| マシン名 | Automatic Gummy Candy Counting Machine |
| 対象製品: | Gummy bears, jelly candy, soft candy, chewy candy, irregular shaped gummies |
| Counting Principle: | Vibration feeding + photoelectric sensor high-precision counting |
| Feeding Mode: | Multi-layer electromagnetic vibration feeding, anti-blocking |
| カウントの正確さ： | ±0~1 pcs |
| Counting Range: | 1–999 pcs adjustable |
| 生産速度: | 20–40 bottles/min (depends on candy size & filling quantity) |
| Discharge Method: | Quantitative batch discharging, anti-drop buffer feeding |

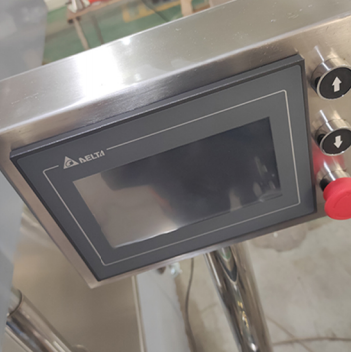

| 制御システム: | PLC + color touch screen, parameter memory function |
| Anti-dust Design: | Closed feeding hopper, dust cover, easy cleaning |
| メイン素材： | Full SUS304 food grade stainless steel |
| ホッパー容量 | 25–50 L |
| 適用容器： | Plastic bottle, glass bottle, jar, plastic can, pouch |
| 電源： | 220V/50Hz, single phase |
| 総電力: | 0.8–1.5 KW |
| 作動音： | ≤65 dB |
| 動作温度： | 0℃ ~ 45℃ |
| 全体の寸法（長さ×幅×高さ）： | 1100×750×1350 mm |
| 正味重量： | 185 kg |
| Core Advantages: | High efficiency, low damage rate, no candy crushing, easy operation |
| Optional Parts: | Bottle unscrambler, dust removal device, stainless steel stand, conveyor |
| コンプライアンス： | Food grade standard, easy disassembly and washing |
It works for regular gummies, coated gummies, oiled gummies, vitamin gummies, fruit gummies, irregular-shaped soft candies. It adapts to sticky, soft and differently sized gummy products.
Widely used in food processing, confectionery manufacturing, dietary supplement, pharmaceutical and health product packaging factories.
Standard models reach 99.9%+ counting accuracy.
- Desktop/semi-auto model: 10～30本/分.
- Single-lane full-auto model: 30–60 bottles/min.
- Multi-lane industrial model: Up to 120+ bottles/min.
Suitable for gummies from 5mm to 40mm in diameter.
はい。. It matches plastic bottles, glass bottles, pouches, boxes and other common packaging forms.
food-grade 304 stainless steel.
