Medication Sachet Packing Machine
Our Medication Sachet Packing Machine is built to package tablets, capsules, powders, granules, and other pharmaceutical products. By combining sachet forming, product dispensing, sealing, coding, and cutting, the machine helps manufacturers increase their output.
As for the production speeds, it can range from approximately 30 to over 300 sachets per minute. Moreover, the machine can be configured for powder medications, tablet sachets, capsule packs, herbal supplements, and oral rehydration salts. It has a servo-driven film that maintains consistent pouch dimensions.
Need a Cutsom Quote
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
FAQ
Machine Parts Name
Applied Pill Sachet Types
Reviews No reviews yet
- Single-Dose Medication Packaging: This machine is designed to create convenient unit-dose sachets. Individual packaging improves dosage control and makes products easier to distribute.
- Multi-Lane Production Options: Our machine can be configured with multiple filling lanes to increase throughput. Multi-lane systems allow several sachets to be produced simultaneously.
- Tablet and Capsule Counting: For solid-dose products, electronic counting systems accurately count tablets and capsules before filling. This reduces manual counting errors.
- Nitrogen Flushing Capability: This machine includes an optional nitrogen flushing system to remove oxygen before sealing. It helps extend product shelf life and protect sensitive formulations.
- Supports Multiple Packaging Films: The machine can work with PET/PE, PET/AL/PE, paper laminates, aluminum foil laminates, and other pharmaceutical-grade packaging materials.
| Technical Parameters: | Specification Value |
| Equipment Name: | Medication Sachet Packing Machine |
| Model: | FT-150 |
| Applicable Packaging Materials: | Composite film, Aluminum-plastic film, Paper-plastic composite film |
| Packing Specification: | 50mm-200mm (width), 80mm-300mm (length) |
| Production Capacity: | 30-150 sachets/min |
| Metering Accuracy: | ≤ ±0.5% |
| Applicable Materials: | Powder, Granule, Tablet, Capsule, Liquid, Paste pharmaceutical materials |
| Power Supply: | 220V/50Hz, 1.5KW |
| Air Consumption: | 0.6MPa, 20L/min |
| Equipment Dimensions: | 1800mm × 1100mm × 1700mm (L×W×H) |
| Equipment Weight: | 450KG |

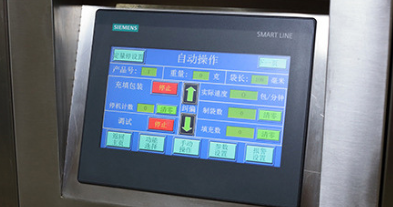

| Control System: | PLC + Touch Screen Human-Machine Interface |
| Sealing Method: | Heat sealing, Three-side / Four-side seal |
| Cutting Method: | Servo motor driven rotary cutting |

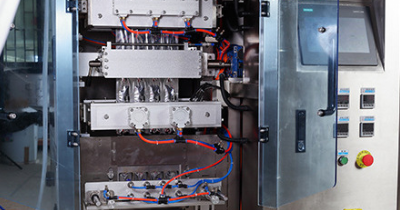

| Temperature Control Range: | 0-300℃, Independent temperature control for each sealing wheel |
| Tolerance of Bag Length: | ≤ ±0.2mm |
| Qualified Rate of Sealing: | ≥ 99.8% |
| Noise Level: | ≤ 75dB |
| Protection Grade: | IP54, meets GMP pharmaceutical production standards |
Powders – fine to granulated, including active pharmaceutical ingredients (APIs), protein powders, enzymes, and nutritional mixes.
Granules – free-flowing granulated formulations.
Liquids – syrups, gels, oils, and pharmaceutical solutions.
Semi-liquids/pastes – creams, ointments, and viscous formulations.
| Product Type | Recommended Dosing System |
|---|---|
| Powders & granules | Auger fillers or volumetric cup fillers |
| Free-flowing powders | Servo-driven auger fillers for high precision |
| Hygroscopic/fine powders | Controlled-environment dosing with anti-static solutions |
| Liquids | Peristaltic pumps (accuracy, minimal shear) or servo-driven pumps |
| Viscous products | Piston fillers |
Length: 50–170mm
Width: 30–100mm
Multi-lane configurations can accommodate various dimensions depending on the number of lanes and film width.
Single-lane machines: Up to 280 sachets/min.
Multi-lane machines: Can reach 400–700 sachets/min.
High-end pharmaceutical stick pack machines: Up to 840 sticks/min.
Yes.
