Tablet Pouch Packing Machine
Finetech’s Tablet Pouch Packing Machine combines counting, pouch forming, filling, sealing, and coding into one compact packaging solution. Built for pharmaceutical, nutraceutical, and healthcare manufacturers, the machine helps transform bulk tablets into retail-ready pouches with minimal manual intervention.
You can easily configure the machine for single-dose packs, sample packs, travel packs, and retail packaging formats. There are also optional features such as nitrogen flushing, date coding, perforation systems, and multi-lane production.
Need a Cutsom Quote
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
FAQ
Machine Parts Name

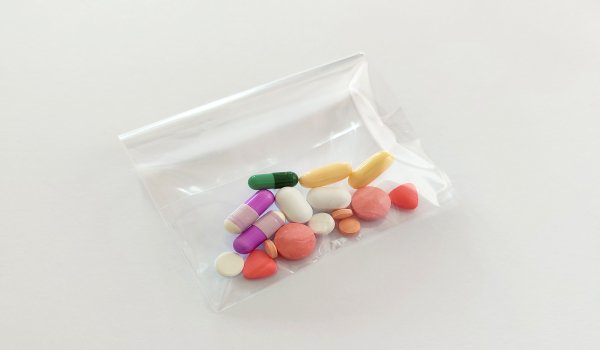

Applied Pill Pouch Types
Reviews No reviews yet
- Vibration Feeding System: Tablets move through a controlled vibration channel before counting begins. This helps separate products evenly and reduces the chance of double drops or counting errors.
- Registration Mark Tracking: Photoelectric sensors continuously monitor printed film registration marks. Each pouch is cut and sealed at the correct position, which reduces film waste.
- Multi-Layer Film Compatibility: Our machine can process PET/PE, PET/AL/PE, BOPP laminates, and other common packaging films. It allows manufacturers to select packaging materials based on shelf-life requirements.
- Easy-Tear Notch Integration: This machine has optional notch-cutting systems to create a clean opening point for consumers. This improves convenience without affecting seal integrity.
- Pneumatic Sealing Pressure Control: Operators can adjust the sealing pressure according to film thickness and material type. Consistent pressure creates stronger seals without damaging the packaging material.
| Model: | DB-300 |
| Counting Capacity: | 8 channels, Max 3000 pcs per min |
| Filling category: | Tablet, Capsule: 00#-5#, Soft capsule, Tablet or other regular shape material(Diameter less than 22mm). |
| Bag Type: | Multilayer Composite Premade Bag, Gusset Bag, Zipper Bag, Flat Bottom Pouch |
| Bag Machine Speed: | 0-15 bags/min |
| Bag Size Range: | 80mm≤W≤300mm, 100mm≤L≤300mm |
| Power supply: | AC220V 1P 50Hz； |
| Power: | 2.0 Kw |
| Air Consumption: | 0.3m³/min (Standard machine, no additional function) |
| Overall size: | 1770×2150×1950(mm)（L×W×H） |
Strip Packing Machine.
Sachet Packing Machine (3-side or 4-side seal).
Stick Pack Machine.
Envelope / Chain Pouch Machine.
Uncoated and film-coated tablets.
Sugar-coated tablets.
Hard gelatin capsules.
Softgels (with gentle feeding systems).
Effervescent tablets (requires special moisture-barrier films and sealing).
Aluminum foil / PE laminate (most common for pharma: excellent moisture, light, and oxygen barrier).
Paper / PE / Aluminum foil / PE (for added printability and stiffness).
PET / Aluminum foil / PE.
Cold-formable aluminum laminates (for very sensitive products).
PE or PP mono-films (for short shelf life, low barrier needs).

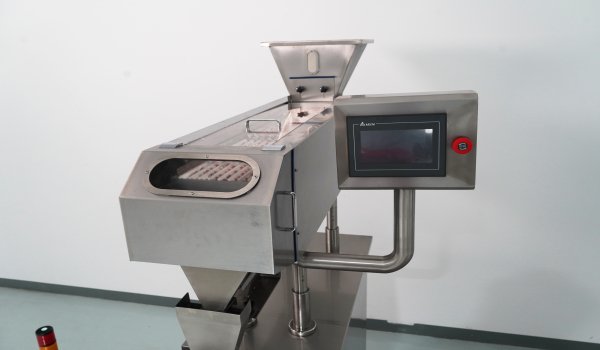

Tablets are fed from a hopper into a vibratory bowl or rotary disc feeder that aligns them into single-file tracks. Several counting methods are used:
Photoelectric sensors: Count tablets as they break a light beam.
Rotary / Slat counters: Mechanical pockets on a rotating disc physically separate a precise number of tablets per cycle.
Camera-based vision systems (advanced): Verify count and tablet integrity before sealing.
Most machines allow adjusting the number of tablets per pouch (e.g., 1, 2, 10, or more).

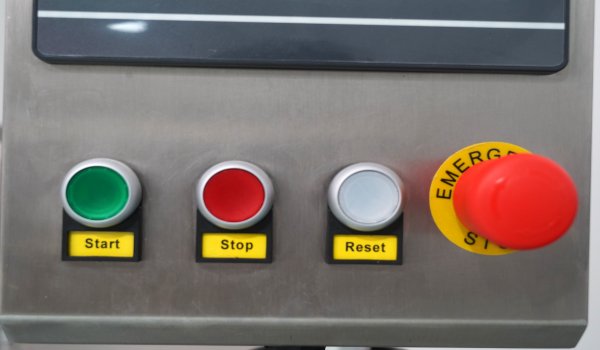

Emergency stop buttons at multiple locations.
Full guarding with interlocked safety switches on doors; opening a guard stops the machine immediately.
Overload protection for motors.
Overtemperature protection on sealing bars.
No-pouch/no-film sensor to stop the machine if material runs out.
Sealing bars / heating elements.
Cutting blades / knives.
Teflon tape or cloth for sealing bars.
Draw rollers.
Sensors and fuses.
Belts and drive chains.
