Tablet Wrapping Machine
Finetech’s Tablet Wrapping Machine is developed to wrap tablets and tablet packs efficiently while maintaining packaging integrity. It automates key operations such as product feeding, film handling, wrapping, sealing, and discharge to reduce manual labor.
Some functions of the machine include servo-driven controls, precise film tracking systems, and adjustable sealing parameters. These allow the machine to handle different tablet sizes and package dimensions. Its modular design also makes it easier to integrate with cartoners, labeling systems, inspection units, and other packaging equipment.
Need a Cutsom Quote
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
FAQ
Machine Parts Name

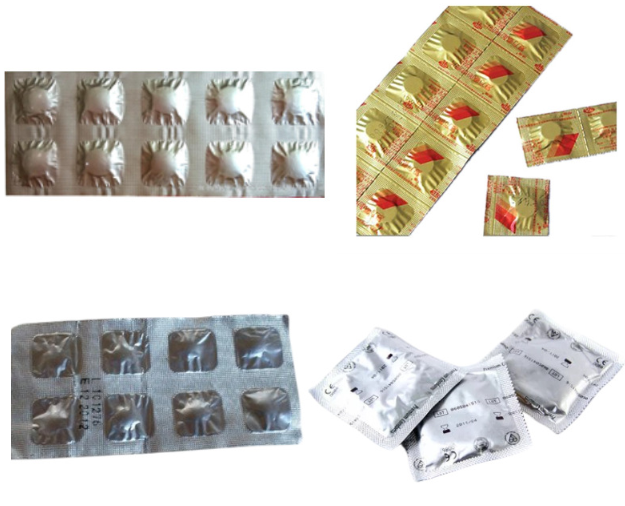

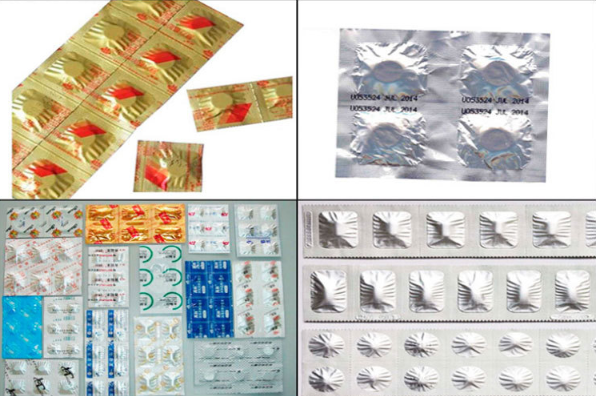

Applied Pill Sachet Types
Reviews No reviews yet
- High-Speed Wrapping Performance: Our machine is capable of wrapping between 50 and 300+ packs per minute depending on the wrapping format. Higher throughput helps manufacturers meet demanding production schedules.
- Servo-Driven Film Transport System: Film movement is controlled by servo motors rather than conventional mechanical drives. This improves positioning accuracy and reduces film waste.
- Multiple Wrapping Material Compatibility: This machine can process BOPP, PVC, PE, laminated films, and other commonly used materials. It gives manufacturers flexibility when selecting packaging specifications.
- Compact Mechanical Layout: The machine combines several packaging functions into a relatively small footprint. This makes installation easier in facilities with limited floor space.
- Easy Maintenance Access: Important mechanical and electrical components are positioned for convenient inspection and servicing.
| Parameter | Specification |
| Equipment Name: | Fully Automatic Tablet Wrapping Machine |
| Equipment Model: | NSL-160B |
| Control System: | PLC Programmable Controller + Touch Screen Human-Machine Interface (HMI) |
| Production Capacity: | 300-1200 tablets/granules per minute (depending on material specifications and wrapping process) |
| Wrapping Accuracy: | Wrapping Deviation ≤ ±0.2mm; Finished Product Qualification Rate ≥ 99.8% |

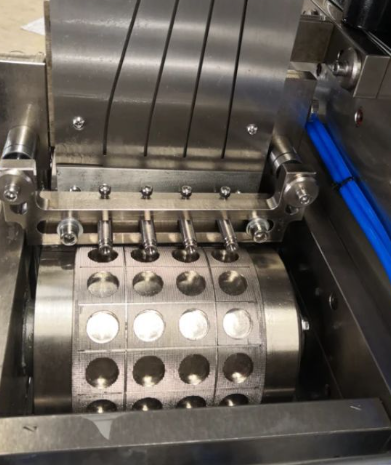

| Heat Sealing Temperature Range: | 0-300℃, independent temperature control for multiple groups of heat sealing rollers, temperature control accuracy ±1℃ |
| Heat Sealing Pressure Range: | 0.2-0.5MPa, stepless adjustment |
| Traction Speed: | 5-60m/min, driven by servo motor, synchronization accuracy ±0.1mm |
| Applicable Pharmaceutical Materials: | Plain tablets, sugar-coated tablets, special-shaped tablets, sustained-release tablets, controlled-release tablets, capsules, soft capsules and other pharmaceutical solid preparations |
| Applicable Packaging Materials: | Pharmaceutical transparent PVC film, aluminum foil composite film, CPP film, BOPP film, pharmaceutical coating premix |
| Wrapping Size Range: | Tablet diameter: 5mm-25mm; Size after wrapping: 6mm-30mm (diameter/side length) |
| Total Power: | 2.75KW |
| Power Supply: | 220V/50Hz, single-phase/three-phase optional |
| Compressed Air Requirement: | 0.45MPa, ≥0.2m3/min |
| Overall Dimensions: | 1300×750×1700mm (Length × Width × Height) |
| Net Weight of Equipment: | 900kg |
| Operating Noise Level: | ≤ 75dB |
| Protection Level: | IP54 |
| Compliance Standards: | In line with China GMP, US FDA, EU CE pharmaceutical production compliance standards |
| Standard Configuration: | Fault alarm system, parameter memory function, emergency stop device, overload protection |

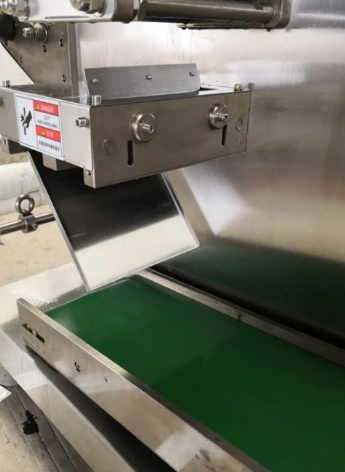

| Optional Accessories: | UV sterilization device, waste film recycling device, batch number/production date inkjet device, visual inspection system, automatic feeding machine, finished product output conveyor belt |
Tablet wrapping machines are highly versatile and can handle:

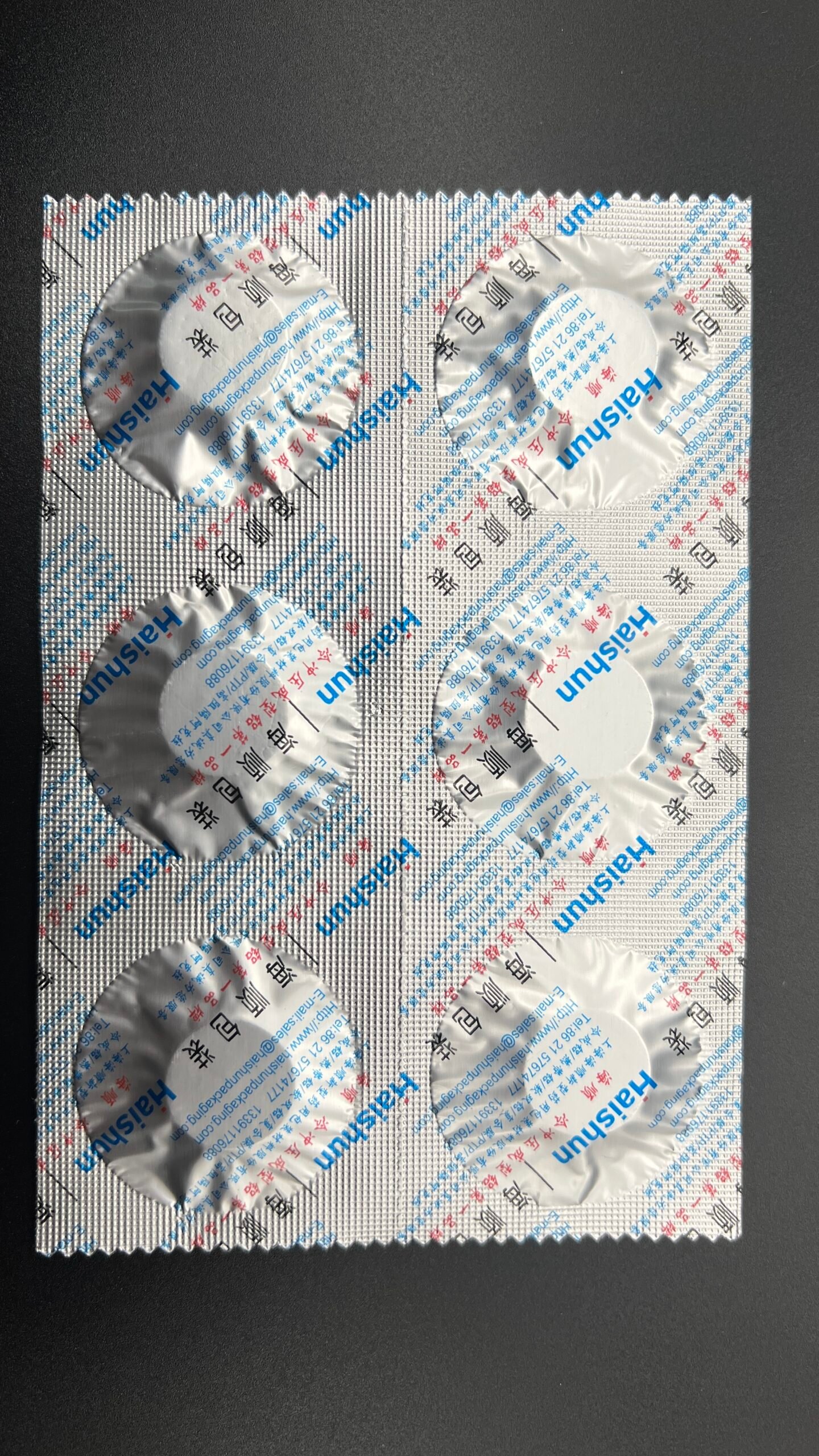

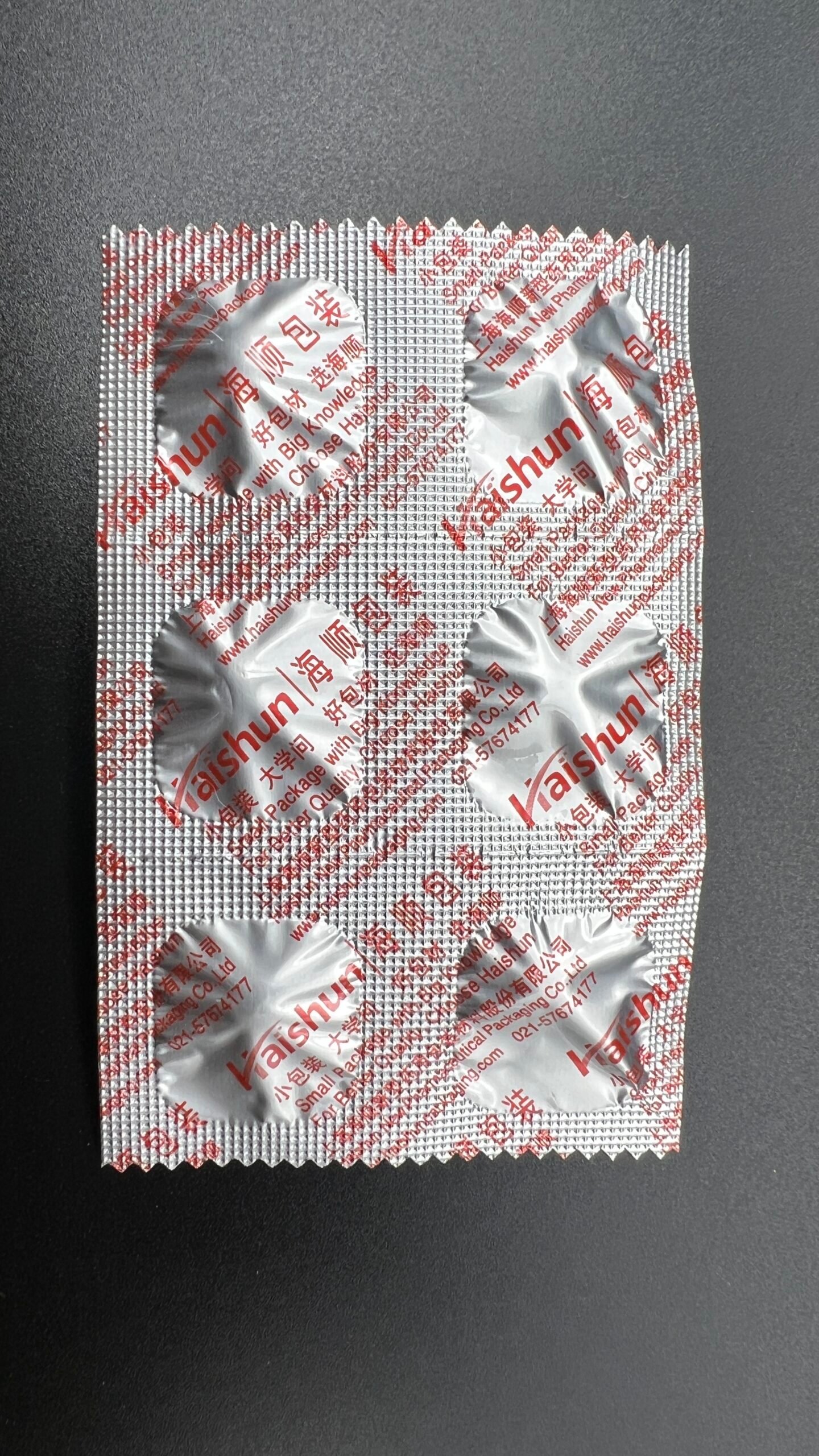

Pharmaceutical products – medicine boxes, blister packs, strip packs, individual tablets and capsules.
Nutritional supplements – vitamin bottles, supplement boxes.
Cosmetics – cream boxes, cosmetic cartons.
Food items – confectionery, chewing gum, chocolate tablets.
Stationery and gift items.
| Feature | Overwrapping | Strip Packing | Blister Packing |
|---|---|---|---|
| Purpose | Secondary (outer) packaging | Primary packaging | Primary packaging |
| Method | Wraps film around existing package | Seals tablets between two material layers | Places tablets in formed cavities, seals with foil |
| Materials | Cellophane, polypropylene, BOPP | Aluminum foil, PVC, PVDC | PVC, aluminum, PET |
| Protection | Dust, moisture, tamper-evident | Superior moisture/air/light protection | Good protection, product visible |
| Speed | High-speed (30-80+ packs/min) | Moderate speed, suited for smaller batches | High-speed, suited for large-scale production |
| User convenience | Easy to open | May require tearing | Tablets visible and easily accessible |
Common wrapping materials include:
Cellophane – traditional transparent film, biodegradable.
Polypropylene (BOPP) – glossy, durable, widely used for overwrapping.
Aluminum foil – excellent moisture and light barrier, used in strip packing.
PVC/PVDC – plastic films used in strip and blister packaging.
Paper – used for certain tablet wrapping applications.
Follow these safety guidelines:
Stable installation – Install the machine on a stable, level foundation
Vibration reduction – Use shock-absorbing pads to minimize vibration
Protective shields – Install protective shields to prevent foreign objects from entering
Power off for maintenance – Always disconnect power before performing any maintenance
Proper training – Ensure operators are properly trained on machine operation and safety procedures
