Powder Filling Line

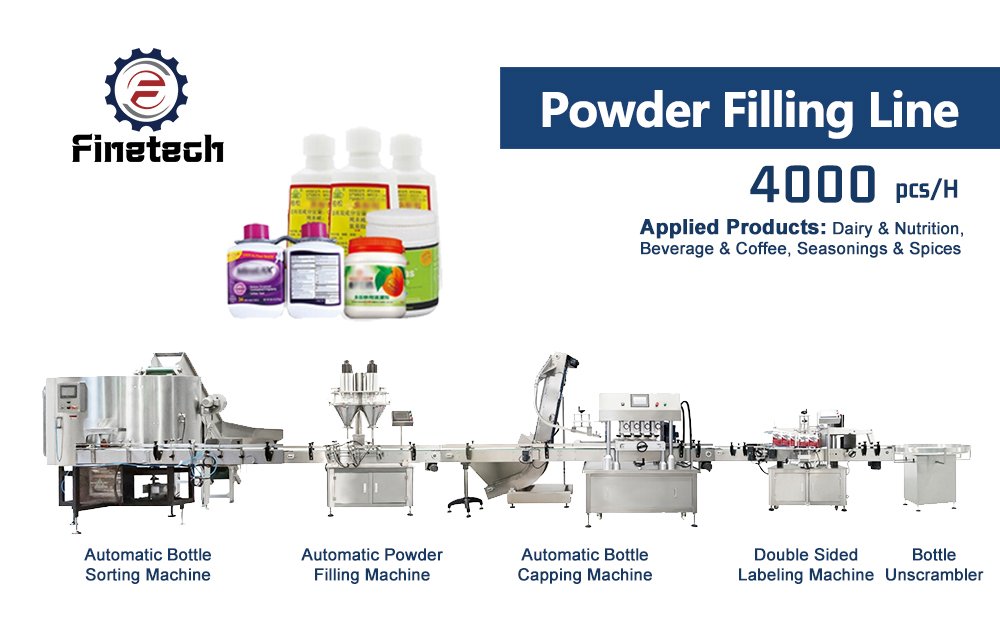

We have built this Powder Filling Line for complete filling, sealing, and packaging of powdered products across food, pharmaceutical, chemical, and nutraceutical production environments. The system combines powder feeding, auger filling, container handling, sealing, coding, and final discharge into one.
This line is suitable for handling products such as milk powder, protein powder, spices, coffee powder, flour, pharmaceutical powders, and chemical formulations. Depending on production requirements, the setup can be configured for bottles, jars, cans, pouches, and sachets.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Powder Filling Line Machines
FAQ
Application
Reviews 1 Reviews
- Auger-Based Filling System: The filling section uses a servo-driven auger mechanism for controlled powder dosing during operations. It maintains stable filling accuracy across free-flowing and non-free-flowing powder products.
- Dust-Control Packaging Design: Powder packaging can create airborne particles during filling. To reduce this, the line can integrate dust extraction systems and enclosed filling sections for cleaner conditions.
- High Filling Accuracy: Standard configurations maintain filling accuracy within ±1%, depending on powder type and filling volume.
- Adjustable Production Capacity: Production speed can be adjusted based on container size, powder density, and filling quantity. Standard models support outputs ranging from 20 to 80 containers per minute.
- Installation and Operator Guidance: Installation support and operational training are provided to help production teams manage machine setup and filling adjustments.
| Item | Specification |
| Machine Name: | Automatic Powder Filling Production Line |
| Applicable Material: | Fine powder, superfine powder, mixed powder, non-sticky dry powder(Pharmaceutical powder, food powder, chemical powder, herbal powder, etc.) |
| Filling Range: | 5g – 5000g (customizable) |
| Filling Accuracy: | ≤ ±1% (high-value powder); ≤ ±2% (common powder) |
| Production Capacity: | 20 – 60 bottles/min (depends on filling volume & bottle size) |
| Filling Method: | Auger screw quantitative filling |
| Applicable Container: | PET/HDPE plastic bottle, glass bottle, metal can, round / square bottle |
| Bottle Diameter Range: | Φ20mm – Φ120mm (customizable) |
| Bottle Height Range: | 50mm – 300mm (customizable) |
| Complete Line Configuration: | Bottle unscrambler → Air washing & sterilization → Powder filling → Capping → Cap tightening → Labeling → Date coding |
| Control System: | PLC + Touch screen operation, parameter adjustable |
| Dust Collection: | Equipped with dust removal device, dust-free filling |
| GMP Compliance: | Contact parts: SUS304 / SUS316L stainless steel |
| Power Supply: | 380V/220V 50/60Hz |
| Total Power: | 3.5KW – 12KW |
| Working Air Pressure: | 0.6–0.8 MPa |
| Overall Dimension: | Customized based on line configuration |
| Machine Weight: | 800kg – 3500kg |
| Optional Function: | Nitrogen flushing, vacuum dust extraction, anti-explosion design, automatic reject system |
It fits various dry powders, granules, fine materials such as pharmaceutical powder, food powder, spice powder, milk powder and chemical raw materials.
Yes, full automatic workflow including feeding, filling, capping, sealing, labeling and finished product conveying.
±1%
fully GMP compliant.
Yes.
very easy to operate.
Yep, according your product to customized the another secondary packing machines.
Widely applied in pharmacy, health care products, food, beverage, daily chemicals and agricultural industries.
Customer Reviews
We bought this powder filling line last year, and I have to say, it’s been solid. The seller shipped on time, installation was straightforward, and our guys got it running in two days. Fills very accurate, no more wasting raw material. For the price, it’s a steal.
