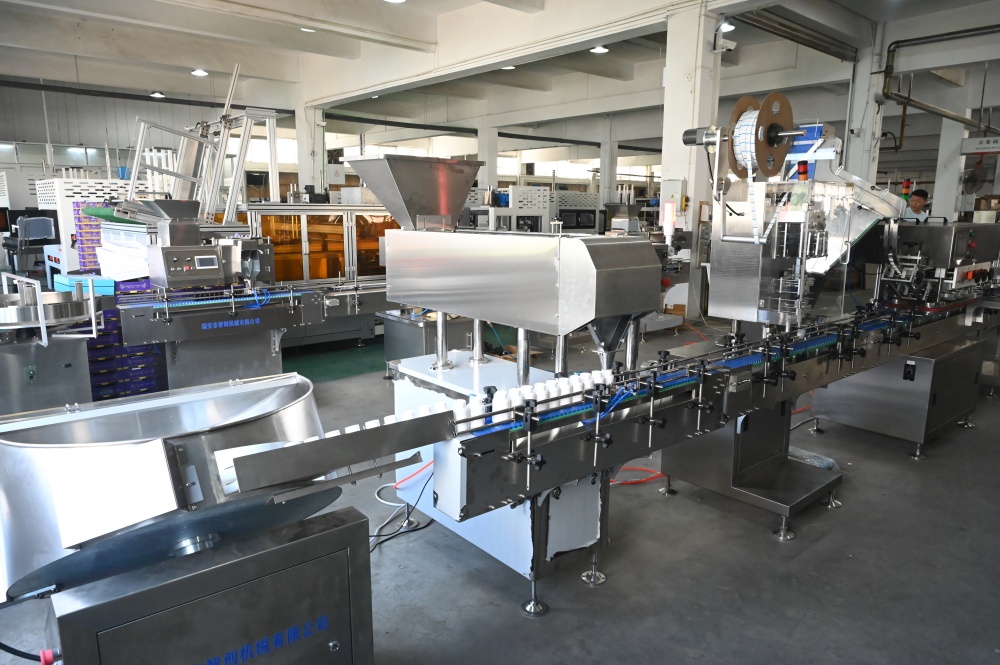

Tablet Packaging Line

• Coordinated Line Control: The entire system runs on a centralized PLC setup, with each section linked in real time. If one station slows down or stops, the rest of the line adjusts automatically to prevent product pile-up.
• Accurate Tablet Handling: Tablets are transferred through vibration-based or channelized feeding systems that guide them into position before counting. This reduces breakage and maintains uniform feeding.
• Servo-Assisted Movement: Key sections of the line use servo-driven systems to control speed and positioning.
• Operator-Friendly Control Interface: The HMI panel provides real-time data on speed, output, and machine status. Operators can adjust parameters without stopping the line.
• Built-In Coding and Support: Our machine line can be connected to printing systems for batch coding, expiry dates, and serialization. This ensures compliance with regulatory standards without adding extra steps.
• One-Year Warranty: We offer a one-year official warranty for functional manufacturing faults. You also get guidance and support to help you set up and learn how to operate the line.

Applications

• Pharmaceutical Manufacturing: Used in large-scale pharma plants where tablets must be packed under strict regulatory conditions, such as GMP and FDA compliance. These environments require controlled processes and full traceability.
• Nutraceutical Production Units: Applied in facilities producing vitamins, herbal tablets, and dietary supplements. Such setups benefit from flexible lines that can switch between SKUs.
• Contract Manufacturing Organizations (CMOs): Commonly installed in CMOs, where different clients require different packaging formats. These facilities rely on adaptable systems that can handle multiple specifications.

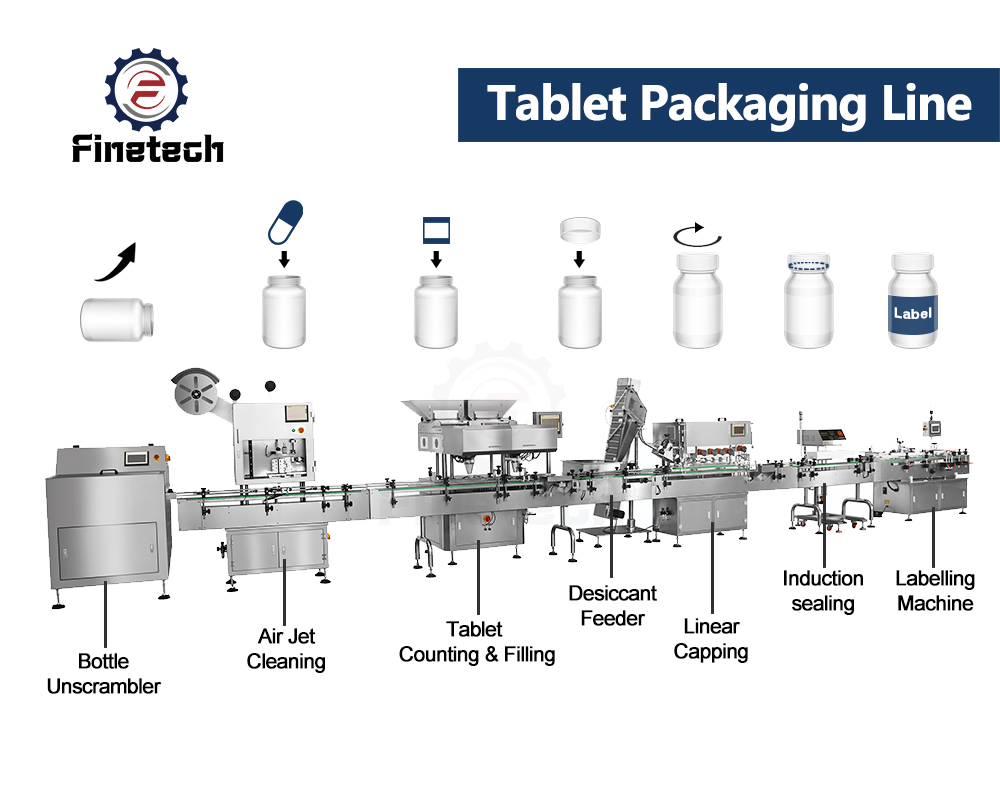

Workflow

• Step 1: Tablet Loading: Tablets are fed into the system from upstream or storage containers. The feeding unit regulates flow to avoid damage.
• Step 2: Controlled Distribution: Then, tablets pass through guiding channels or vibratory systems that separate and align them. This prepares them for accurate counting.
• Step 3: Primary Packaging: Depending on the setup, tablets are either counted into bottles or placed into formed blister cavities.
• Step 4: Sealing and Closure: Packages are sealed using heat, pressure, or capping systems. It secures the product and protects it from contamination.
• Step 5: In-Line Inspection: Sensors and inspection units check for errors such as incorrect counts or sealing issues. Any faulty pack is removed automatically from the line.
• Step 6: Secondary Packaging: Finished packs are transferred into cartons or grouped for further packaging. Leaflet insertion and coding can also be added at this stage.
• Step 7: Final Discharge: The completed products exit the line and move toward case packing or storage.
