GMP Automatic Tablet Strip Packing Machine for Solid Dosage Packaging
Finetech supplies tablet strip packaging machines for tablets, capsules, pills, and selected solid products. We match web width, feeder design, seal pattern, product size, line speed, and coding requirements to the planned pack. Models support compact strips and wider production formats. Buyers receive application guidance, commissioning support, operator training, and future format assistance.

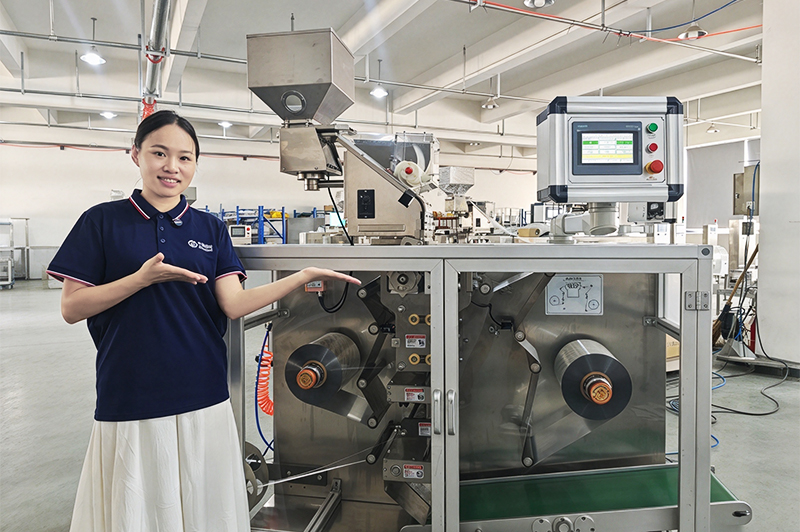

What Is a Tablet Strip Packaging Machine?
A tablet strip packaging machine places individual tablets or capsules between two flexible packaging webs. Heated sealing rollers bond the layers around each product and create separate sealed pockets. The web is then coded, perforated, and cut into finished strips. This approach provides compact unit-dose packaging without thermoforming a rigid blister cavity.
Ventajas principales
Compact Unit-Dose Protection
Each product sits inside a sealed flexible pocket. Suitable foil structures help protect the dose from handling and environmental exposure.
Continuous Packaging Flow
Rotary sealing supports steady feeding and web movement. Coordinated stations reduce repeated manual wrapping and cutting work.
Flexible Strip Layouts
Web width, pocket spacing, and cut length can be configured around the product and required doses per strip.
¿Por qué elegir Finetech?
Strip Packaging Configured for the Actual Dose
Good strip packaging begins with the product and material, not the roller alone. Finetech reviews tablet or capsule dimensions, fragility, barrier needs, web structure, seal temperature, strip layout, and target output. We then coordinate feeding, sealing rollers, coding, and cutting for the approved format.
Puntos fuertes de Finetech:
- Product and foil assessment before machine selection
- Custom sealing rollers and strip-layout development
- Feeding solutions for tablets, capsules, and pills
- Commissioning and operator setup guidance
- Ongoing support for tooling and wear components
Different Types of Tablet Strip Packaging Machines
Finetech offers strip packers in web widths from 160 mm to 500 mm, with configurations for different output levels and product sizes. Options can support pharmaceutical PVC structures or aluminium-plastic combined films, standard tablets, hard capsules, soft capsules, and larger chewable products. Model selection depends on strip width, pocket layout, feeder behavior, heat demand, and downstream handling.
Máquina envasadora de tiras de comprimidos y cápsulas FTB-160
El FTB-160 presenta una estructura avanzada, alta eficiencia, bajo nivel de ruido y fácil operación. Su capacidad de producción puede alcanzar... 800 piezas/hora.
Máquina envasadora de tiras de comprimidos y cápsulas FTB-220/300
Disponible para envasar tabletas, cápsulas y componentes electrónicos en la industria farmacéutica. Su capacidad de producción puede alcanzar... 1200 piezas/hora.
Máquina envasadora de tiras de comprimidos y cápsulas FTB-400/500
Se utiliza para el envasado automático de tabletas, caramelos y pastillas mediante termosellado con papel aluminio. Su capacidad de producción alcanza... 4000 tabletas/hora.
Máquina envolvedora de pastillas
La maquinaria de envoltura automática envuelve herméticamente con film las láminas de comprimidos en blíster ya terminadas.

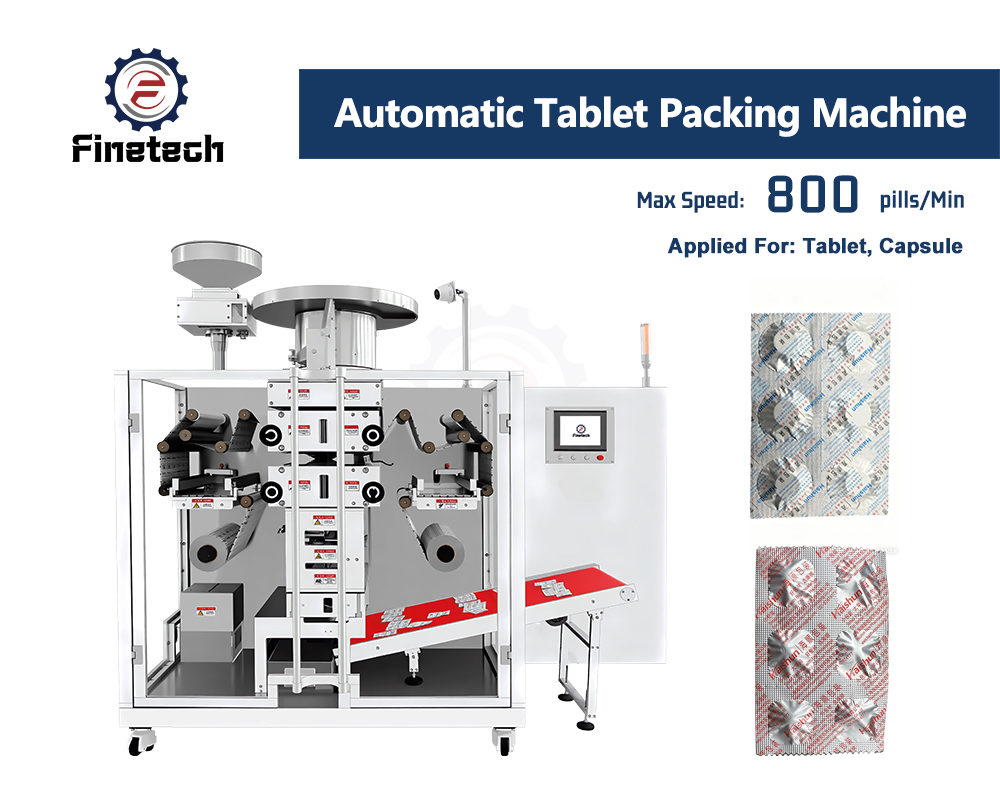

Máquina automática de envasado de comprimidos
Integrated with forming, filling, sealing, coding & cutting, for PVC/Alu-Alu blister packaging of comprimidos, pastillas y cápsulas.
Máquina de envasado de sobres de medicamentos
Envasadora automática de sobres de medicamentos para Envases monodosis de comprimidos, polvo y gránulos con funciones integradas de conformado, llenado y sellado.
Máquina envasadora de bolsas para tabletas
Recuento automático, formación de bolsas, sellado y codificación para sobres de comprimidos monodosis, con certificación GMP y CE.
¿Interesado?
We offer equipment for all types of tablet packaging; please submit your inquiry using the button below.
Industrias de aplicación
Características principales

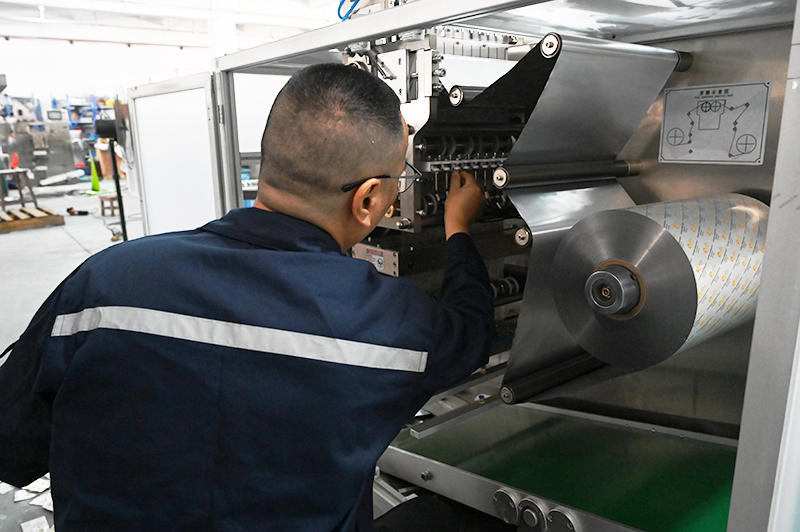

Dual-Web Unwinding
Two packaging webs feed into the machine under controlled tension. Stable unwinding helps prevent wrinkles, drift, and uneven sealing.
Product-Specific Feeding
Feeders meter tablets or capsules into the roller pockets at the correct interval. The handling method can be adjusted for size and fragility.
Matched Sealing Rollers
Engraved rollers create the pocket pattern and sealed border around each dose. Custom geometry reflects product dimensions and strip layout.
Adjustable Heat and Pressure
Operators set sealing temperature and pressure for the selected web structure. Stable settings support pack integrity without damaging the product.

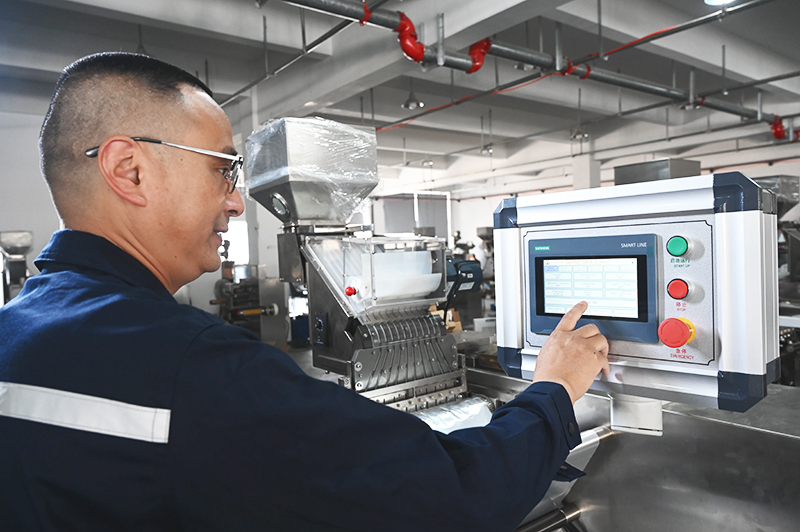

Controlled Drum Speed
Stepless speed adjustment helps balance output with reliable feeding and sealing. The approved setting should remain within the material's process window.
Flexible Web Widths
Machine models cover narrow and wide packaging materials. The selected width determines the available pocket arrangement and number of lanes.
Integrated Batch Coding
Coding units can add batch numbers, production dates, expiry dates, or other required information in the planned print area.
Perforating and Cutting
Coordinated tools create tear lines and divide the sealed web into strips. Accurate cutting supports neat edges and consistent pack length.

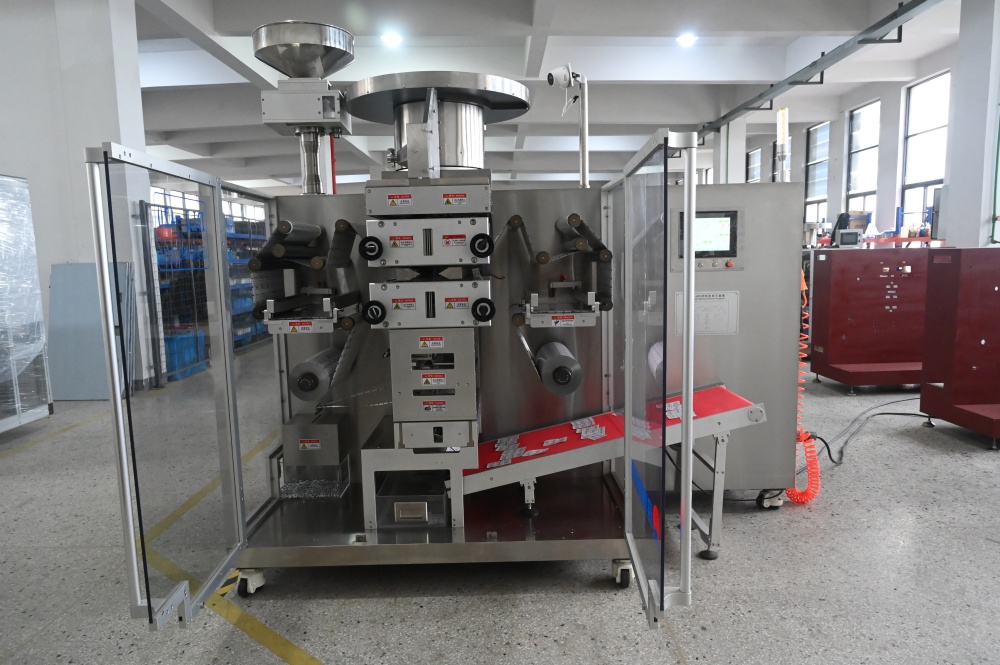

Accessible Guarded Construction
Guarded sealing components support safe operation. Accessible web paths and rollers simplify cleaning, inspection, material loading, and planned changeover.
Proceso de dar un título
Nuestros servicios
Ofrecemos los siguientes servicios: formación en el manejo de los equipos, instalación y puesta en marcha in situ, y un servicio de mantenimiento de un año de duración. Para obtener más información, consulta el enlace que aparece a continuación.
Asistencia in situ para la instalación y puesta en marcha de su maquinaria farmacéutica.
Formación para operadores, con el fin de ayudar a tu equipo a comprender el funcionamiento correcto de la máquina.
Asistencia técnica en línea para el manejo de la máquina y la resolución de problemas.
Apoyo a la planificación de talleres farmacéuticos y líneas de producción.
Piezas de recambio: Tablet Punch Mould, Forming Die, Cutting Knife, Feed Roller.
Ofrecemos una solución integral llave en mano, desde la fabricación hasta la línea de envasado.
We can customize the strip packing machine based on the shape, size, and packaging format of your tablets.
We can integrate other types of packaging machines for your products.
Datos técnicos
Sealing Drum Speed
7-15
rpm
Available Web Widths
160-500
mm
Heating Power Range
3-7
kW
Operating Air Pressure
0.5-0.6
MPa
Especificación
| Modelo | FLB-160 | FLB-220 | FLB-300 | FLB-400 | FLB-500 | |
| Velocidad del tambor: | 7 – 15 r/min rpm (sin escalonamientos) | |||||
| Dimensiones del embalaje: | 160 mm | 220 mm | 300 mm | 400 mm | 500 mm | |
| Especificación del material de embalaje: | PVC para medicamentos | 0,05-0,1 x 160 mm | 0,05-0,1 x 220 mm | 0,05-0,1 x 300 mm | 0,05-0,1 x 400 mm | 0,05-0,1 x 500 mm |
| Película combinada de AL y plástico | 0,08-0,10 x 160 mm | 0,08-0,10 x 220 mm | 0,08-0,10 x 300 mm | 0,08-0,10 x 400 mm | 0,08-0,10 x 500 mm | |
| Diámetro del orificio del carrete | 70-75 mm | |||||
| Potencia electrotérmica: | 1,5 kW*2 | 1,8 kW*2 | 2,5 kW*2 | 3 kW*2 | 3,5 kW*2 | |
| Potencia del motor principal: | 0,37 kW | 0,75 kW | 0,75 kW | 0,75 kW | 5 juegos de servoaccionamientos | |
| Presión del aire: | 0,5-0,6 MPa | |||||
| Suministro de aire: | ≤0,1 m³/min | |||||
| Dimensiones generales (largo x ancho x alto) | 1600x850x2000mm | 1600x850x2000mm | 1600x850x2000mm | 1800x1120x2000mm | 1860 x 1170 x 2300 mm | |
| Peso: | 800 kilos | 900 kilos | 950 kilos | 1200 kilos | 1400 kilos | |
Interested in a tablet strip packaging machine?
Habla con nuestros expertos para descubrir la solución más adecuada a tus necesidades.
Tecnologías relacionadas
Preguntas frecuentes
Strip packaging seals the product between two flexible webs. Blister packaging normally places it in a separately formed cavity.
Yes, with suitable feeders and sealing rollers. Each product still needs testing for pocket size and handling behavior.
Material options depend on the machine and product. Confirm thickness, heat-seal layer, barrier performance, and reel dimensions before ordering.
The sealing roller pattern reflects product dimensions, lane count, pocket spacing, perforations, and the required doses per strip.
Often yes. Feed height, pocket depth, roller clearance, and sealing conditions should be tested with actual capsules.
Material compatibility, temperature, pressure, speed, surface cleanliness, and roller condition all influence seal performance.
Yes. A compatible coding unit can print approved variable information in a defined area of the moving web.
Uneven tension, poor reel alignment, unsuitable heat, worn guides, or incorrect web tracking can create wrinkles.
Choose speed after confirming feeder reliability, sealing quality, material behavior, product protection, and downstream capacity.
Yes, within the machine’s operating range. Roller tooling, perforation timing, and cutting settings may need adjustment.
Provide product samples, dimensions, desired strip drawing, material details, hourly output, coding needs, and available utilities.
Support can cover installation, commissioning, operator training, troubleshooting, spare parts, and new-format tooling coordination.
