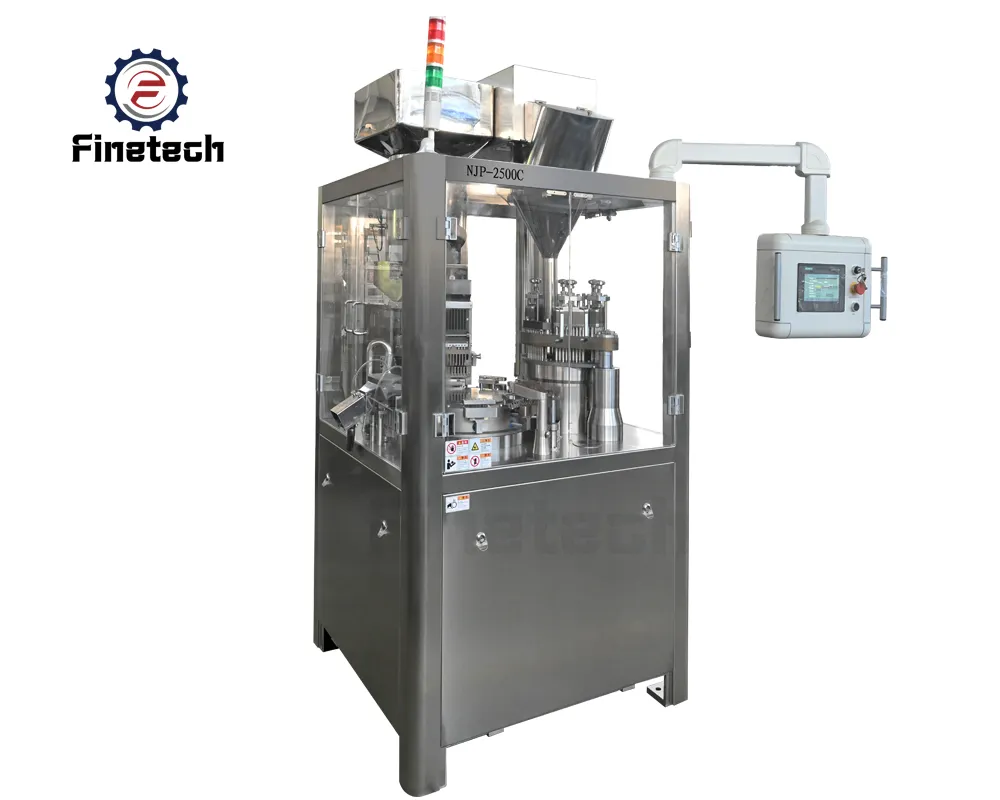

NJP-2000/2500 Automatic capsule filling machine
Increase capsule production with Finetech’s NJP-2000 automatic capsule filling machines. Their rated outputs are 120,000 and 150,000 capsules per hour, respectively. Both models fill powders and granules into hard capsules using the appropriate tooling. Automatic processing and PLC touchscreen controls help operators manage the filling cycle and adjust the production speed.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application Capsule Size
Application Capsule Types
Reviews No reviews yet
Working Principle
Certification Report
Case Study
Videos
- Two output options: Choose the NJP-2000 for a rated 120,000 capsules per hour or the NJP-2500 for 150,000. Actual output depends on the formulation and capsules.

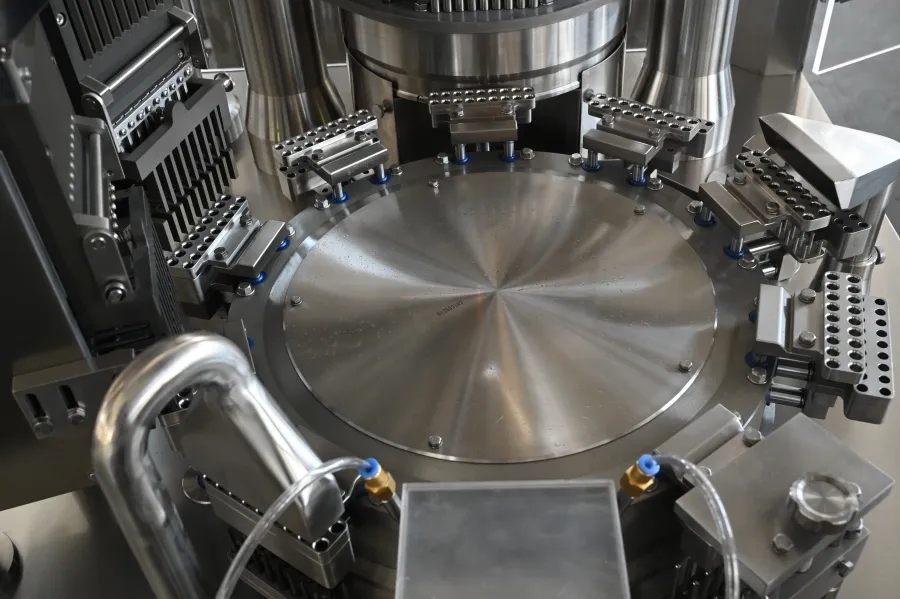

- Automatic processing: An intermittent rotary system moves capsules through feeding, filling, rejection, and locking. Mold cleaning is part of the operating cycle.
- Adjustable dosing: A multi-hole plunger system meters material into the capsules. Operators can adjust the settings for each product.
- Choice of capsule sizes: Both models accept sizes 00 through 5 and safety capsule formats A through E with the matching tooling.

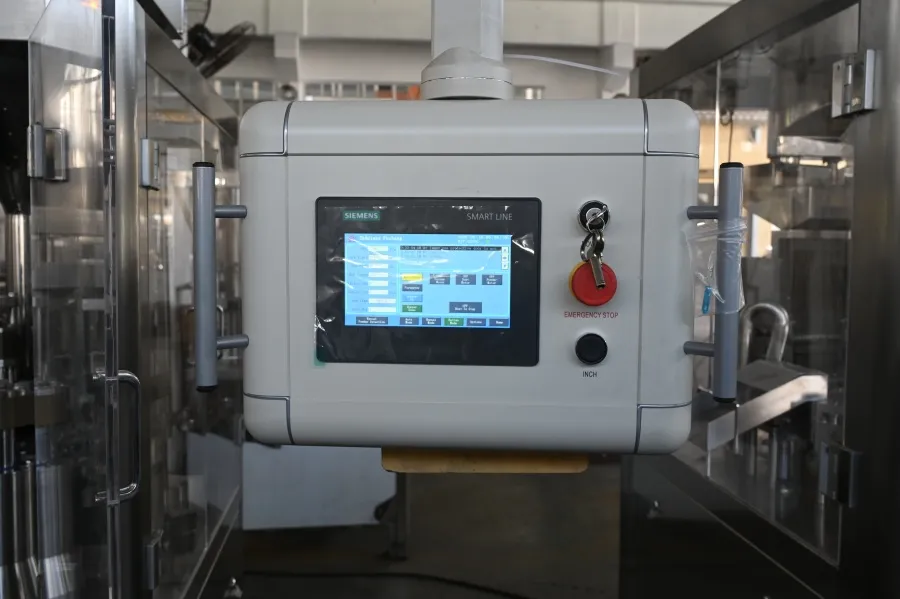

- Touchscreen speed control: PLC touchscreen controls let operators monitor production and adjust speed through stepless variable-frequency control.
- Material monitoring and cleaning: The machine stops automatically when material runs short. Product-contact parts include 304 stainless steel for routine cleaning.
| Model | NJP-2000 | NJP-2500 |
| Productivity | 120,000 capsules/h | 150,000 capsules/h |
| Motor power | 6.45Kw | 6.45Kw |
| Power supply | Standard : 3P 380V 50Hz , Can be Customized | Standard : 3P 380V 50Hz , Can be Customized |
| Capsule size | 00#～5# and safety capsule A～E | 00#～5# and safety capsule A～E |
| Capsule using rate | ≥ 99.5% | ≥ 99.5% |
| Machine weight | 1500 Kg | 1500 Kg |
| Overall dimension | 1000*1050*1950mm | 1000*1050*1950mm |
| Noise index | ≤ 75 DBA | ≤ 75 DBA |
| Dosage difference | ≤ ±3% (under more than 300mg dosing and 40~80 mesh after granulation) | ≤ ±3% (under more than 300mg dosing and 40~80 mesh after granulation) |
| Compressed air | air consumption 0.06m3/min pressure 0.3Mpa | air consumption 0.06m3/min pressure 0.3Mpa |
| Water supply | Water cycle pump compound water tank, or meet water source | Water cycle pump compound water tank, or meet water source |
| Vacuum degree | -0.02～-0.06 MPa | -0.02～-0.06 MPa |
| Water supply | 500L/H 0.2-0.10 Mpa | 500L/H 0.2-0.10 Mpa |
| Enter pipe inner-diameter | 20mm | 20mm |
| Water Spout inner-diameter | 27mm | 27mm |
| Working temperature | 21℃ ± 3℃ | 21℃ ± 3℃ |
| Working relative humidity | 40-55% | 40-55% |
| Dust Collector | 160m3/h | 160m3/h |
| Special function | Granule and powder mixed filing; Powder collector | Granule and powder mixed filing; Powder collector |
| Control system | Stepless frequency conversion control , PLC touch screen | Stepless frequency conversion control ,PLc touch screen |
| Material | Spare part contact with medicine adopts superior S.S 304 & GMP-compliant material | Spare part contact with medicine adopt superior S.S 304 & GMP compliable material |
| Criterion | Comply with GMP completely | Comply with GMP completely |
The NJP 2000 can handle a wide range of capsule sizes from 000 (largest) to 5 (smallest). You need to change the dosing disc and the capsule holding ring to match the specific capsule size you are using.
Yes. The NJP 2000 is primarily designed for powders but is also excellent for filling micro-pellets, granules, and small beads. The key is selecting the correct dosing disc and using proper techniques (like tamping for powders) to ensure accurate fill weight.
Yes, it is designed for easy cleaning. The main components like the capsule holding ring, dosing disc, powder tray, and base plate can be quickly disassembled without tools for cleaning and sanitization.
The fill weight is controlled by two main factors:
Dosing Disc Thickness: Thicker discs have deeper holes and hold more product. You must use the disc thickness specified for your capsule size.
Powder Bed Height: The adjustable knob on the side of the machine raises or lowers the powder tray, which changes how much powder is available to fill the dosing holes. A higher powder bed = heavier fill weight.
Cleaning: Clean after every use or product changeover.
Inspection: Regularly check the rubber suction nozzles for wear and tear.
Lubrication: Lightly lubricate the moving shafts and bushings as per the manufacturer's instructions.
Storage: Store the machine disassembled and in a dry, clean place.
Rubber Suction Nozzles (the most frequently replaced part).
Dosing Discs for the capsule sizes you use most often.
Capsule Holding Rings for your capsule sizes.
Tamping Pins & Springs.
Powder Scraper Blade.
Manuals and parts lists are often available from the supplier you purchased the machine from. Many video tutorials demonstrating setup, operation, and cleaning for the NJP 2000 can be found on platforms like YouTube. Search for "NJP 2000 setup" or "NJP 2000 cleaning."
