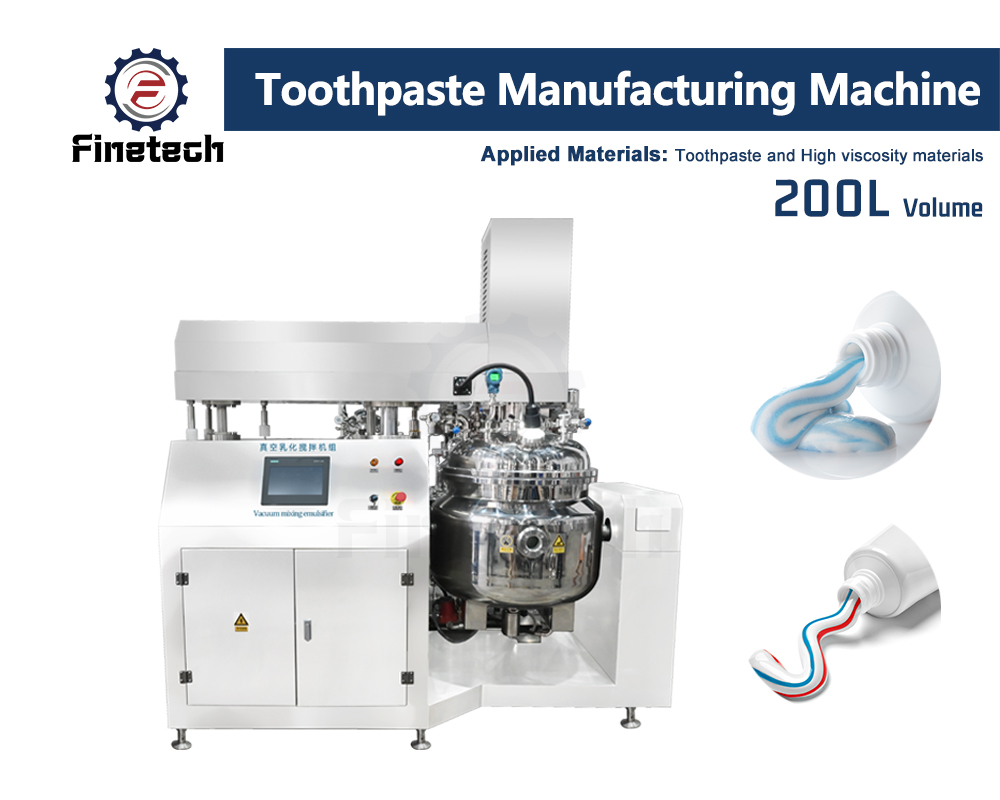

Toothpaste Manufacturing Machine
20,000.00 USD
This Toothpaste Manufacturing Machine is built as a vacuum mixing system designed to handle the full process of blending, dispersing, and homogenizing toothpaste formulations. Instead of relying on multiple standalone mixers, the system brings everything into one controlled environment.
The machine is available in medium and large automatic configurations, covering working volumes from 50 L up to 2000 L. As for its build quality, it is constructed with SS316L stainless steel contact parts with mirror-polished surfaces.
Need a Custom Quote?
Or More information About this product? Contact our sales stuff today!
Key Features
Technical Data
Machine Details
FAQ
Application Tube Types
Reviews No reviews yet
- Multi-Stage Mixing Structure: Uses an anchor scraper stirrer together with a disperser and high-shear homogenizer. This layered system improves blending quality compared to single-mixer designs.
- High-Shear Homogenization: Homogenizer speeds reach up to 3600 rpm, breaking down particles and improving product texture.
- Vacuum Processing for Air Removal: Operates under vacuum up to -0.098 MPa to remove trapped air during mixing. It prevents bubbles and improves consistency.
- Easy-to-Operate Control System: PLC-based control with a touch screen interface is added to the machine so that operators can adjust speed, temperature, and vacuum levels without manual recalibration.
- After-Sales Support and Warranty: Comes with technical support, spare parts availability, and service assistance. A one-year warranty is included and can be extended if needed.
| Technical Item | Lab Small Model (Trial Production) | Medium Vacuum Model (Small Batch Production) | Large Automatic Model (Mass Production) |
| Working Volume (Nominal): | 5L, 10L, 20L | 50L, 100L, 200L | 300L, 500L, 1000L, 2000L |
| Total Volume of Tank: | 8L, 12L, 25L | 65L, 120L, 250L | 400L, 650L, 1200L, 2500L |
| Mixing System: | Anchor scraper stirrer + homogenizer | Anchor scraper stirrer + middle speed disperser + high shear homogenizer | Double-layer anchor scraper stirrer + frame stirrer + high shear homogenizer (bottom mounted) |
| Main Mixing Speed: | 0-60rpm (stepless adjustable) | 0-60rpm (stepless adjustable, frequency control) | 0-45rpm (stepless adjustable, frequency control) |
| Homogenizer Speed: | 0-3000rpm | 0-3600rpm | 0-3600rpm (high power, strong shear) |
| Vacuum Degree: | -0.098MPa (max) | -0.098MPa (max) | -0.098MPa (max, automatic vacuum control) |
| Temperature Control Range: | Room temperature – 100℃ | Room temperature – 100℃ | Room temperature – 100℃ (intelligent constant temperature) |
| Heating Method: | Electric heating or water circulation heating | Electric heating + water circulation heating | Steam heating or electric heating (optional) |
| Cooling Function: | Optional water circulation cooling | Water circulation cooling (standard) | Water circulation cooling (standard, fast cooling) |
| Material Contact Parts: | SS316L stainless steel, mirror polished | SS316L stainless steel, mirror polished (Ra≤0.4μm) | SS316L stainless steel, mirror polished (Ra≤0.4μm) |
| Machine Frame & Tank Body: | SS304 stainless steel | SS304 stainless steel, thickened tank | SS304 thickened stainless steel, sturdy structure |
| Scraper Device: | PTFE scraper (anti-stick, full wall scraping) | PTFE scraper (auto-following, full wall scraping) | PTFE double scraper (auto-following, no dead corner) |
| Control System: | Digital control panel | PLC + 7-inch touch screen | PLC + 10-inch touch screen, full automatic control |
| Main Motor Power: | 0.75kW-1.5kW | 2.2kW-5.5kW | 7.5kW-18.5kW |
| Homogenizer Motor Power: | 0.55kW-1.1kW | 1.5kW-4kW | 5.5kW-11kW |
| Vacuum Pump Power: | 0.37kW | 0.75kW-1.1kW | 1.5kW-3kW |
| Feeding & Discharging: | Manual feeding, bottom valve discharging | Manhole feeding, pneumatic bottom valve discharging | Automatic vacuum feeding, pneumatic bottom valve discharging |
| Machine Dimensions (L×W×H): | 600×500×900mm ~ 1000×700×1200mm | 1200×900×1400mm ~ 2000×1300×1800mm | 2200×1600×2000mm ~ 3500×2200×2800mm |
| Net Weight: | 80kg-180kg | 350kg-800kg | 1000kg-2800kg |
| Standard Certifications: | CE | CE, GMP | CE, GMP, ISO9001 |
What does a full toothpaste production line include?
What does a full toothpaste production line include?
Normally includes:
- Vacuum homogenizing mixer
- Grinding machine / colloid mill
- Storage tank
- Toothpaste tube filling and sealing machine
- Coding device
- Cartoning machine (optional).
What is the production capacity?
What is the production capacity?
Capacity ranges from 50kg/batch to 5000kg/day or higher. Customizable according to factory scale.
What material is the machine made of?
What material is the machine made of?
All parts in contact with raw materials are stainless steel 304 or 316L.
Can it make other pastes besides toothpaste?
Can it make other pastes besides toothpaste?
Yes
Is it easy to operate?
Is it easy to operate?
Yes
What power supply is required?
What power supply is required?
Common voltage: 220V / 380V, 50/60Hz.
What is the warranty period?
What is the warranty period?
Usually 12 months warranty.
Is installation and training provided?
Is installation and training provided?
Usually 12 months warranty for the whole line, with lifelong technical support and spare parts supply.
Temperature control table
316 Stainless Steel Pot
Electronic Box
Inlet
Operation Panel
PLC Control Box
Lotion
Face Cream
Gel
Toothpaste
