Automatic Tube Filling and Sealing Machine For Cream & Ointment
Finetech supplies tube filling and sealing machines for pharmaceutical, cosmetic, food, and chemical products. We match the dosing system, tube material, fill volume, seal method, output, and cleaning needs to the application. Options range from assisted machines to high-speed rotary systems. Our support covers product trials, line planning, commissioning, training, and format changes.
What is Tube Filling and Sealing Machine?
A tube filling and sealing machine positions empty tubes, meters the product into each container, closes the open end, and discharges the finished pack. Plastic and laminate tubes are commonly heat or ultrasonically sealed. Metal tubes are folded and crimped. Automatic models can add orientation, coding, trimming, inspection, and reject functions within one indexed process.
Key Benifits
Accurate Product Dosing
Matched filling systems control each dose across the approved volume range. Stable filling reduces giveaway and underfilled tubes.
Secure, Presentable Seals
Controlled heat, ultrasonic energy, or metal folding creates a dependable closure. Trimming and coding support a clean finished pack.
Broad Format Flexibility
Suitable change parts allow one platform to handle several tube diameters, lengths, materials, and product viscosities.
Why Choose Finetech
A Filling Process Matched to Product and Tube
Cream, gel, ointment, paste, and liquid products behave differently during dosing. Finetech reviews viscosity, fill volume, temperature sensitivity, tube material, diameter, length, print mark, and required speed. We then select the hopper, agitation, dosing unit, nozzle, orientation method, and sealing station around the complete pack.
Finetech’s Core Strengths:
- Product trials based on viscosity and filling behavior
- Tube-format review for plastic, laminate, or metal packs
- Custom dosing, nozzle, sealing, and coding options
- Commissioning and cleaning-procedure guidance
- Parts, tooling, and technical support after delivery
Different Types of Tube Filling and Sealing Machines
The Tube Filling and Sealing Machine is an automated or semi-automated system designed to fill and seal tubes made of plastic (laminate, PE, PET) or aluminum. These machines are widely used in industries like pharmaceuticals, cosmetics, food, and chemicals for packaging products such as creams, gels, ointments, pastes, and liquids.
FT-30 Manual Tube Filling and Sealing Machine
Operation speed: 30-60units/min.
Filling volume: 0.5 – 300ml.
Filling precision: ±1%.
FT-60A Lamilated Plastic Tube Filling Sealing Machine
Operation speed: 60-80 tubes/min.
Filling volume: 5-250ml.
Filling precision: ≤±1%.
Suitable tube length: 50-210mm.
FT-80 Metal Aluminum Tube Filling Sealing Machine
Operation speed: 80 tubes/min/(max).
Filling volume: 1 – 300ml.
Filling precision: ≤±0.5%.
FT-150 Tube Filling and sealing
Filling speed: 150 tubes/ min.
Filling volume: 2 – 200ml.
Filling precision: ≤±1%.
FT-09 Automatic Ultrasonic Tube Filling and Sealing Machine
Operation speed: 18 – 28 tubes/ min.
Filling volume: 6 – 60ml、10 – 120ml、25 – 250ml.
Filling precision: ±1%.
FTP-60 Effervescent Tablet Tube Filling Machine
Operation speed: 50-60 tubes/min.
Filling Effervescent tablet numbers: 8-30 pcs.
Filling precision: ≤±1%.
Suitable tube diameter: 23mm-29mm.
FT-09A Semi-Automatic Tube Filling and Sealing Machine
Filling speed: 25 tubes/ min.
Filling volume: 6 ml to 250 ml.
Filling precision: ≤±1%.
FT-007 Ultrasonic Tube Sealing Machine
Operation speed: 8 to 12 tubes/ min.
Filling volume: 6 – 60ml、10 – 120ml、25 – 250ml.
Filling precision: ±1%.
FTP-09 Pharmaceutical Tube Filling Machine
Operation speed: 50-70 tubes/min.
Filling precision: ≤±1%.
Application Tubes: Single Use Tube, Plastic Ampoule.
High Speed Tube Filling Machine
High Speed Tube Filling Machine for automatic filling & sealing of plastic, laminated & aluminum tubes. Stable performance, high accuracy, easy operation. Ideal for cosmetics, pharmaceuticals & food paste production.

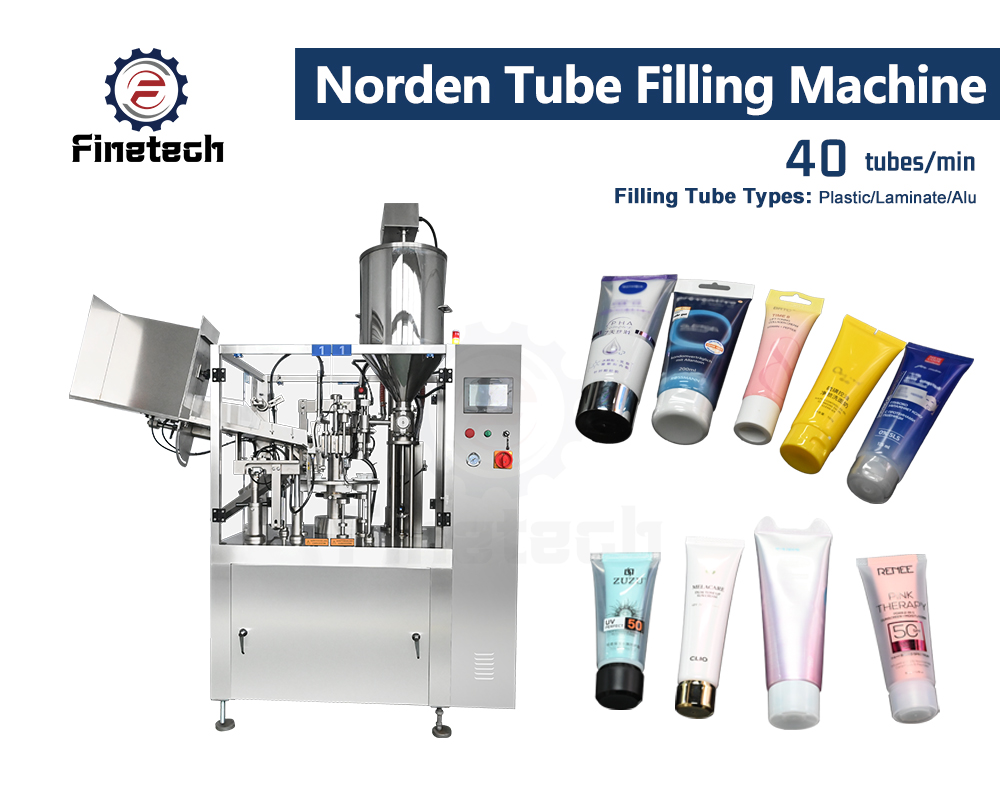

Norden Tube Filling Machine
Norden Tube Filling Machine delivers fast, accurate filling & sealing for plastic, laminate & aluminum tubes. Ideal for creams, gels & ointments. Boost production efficiency with low maintenance. Get quote now.

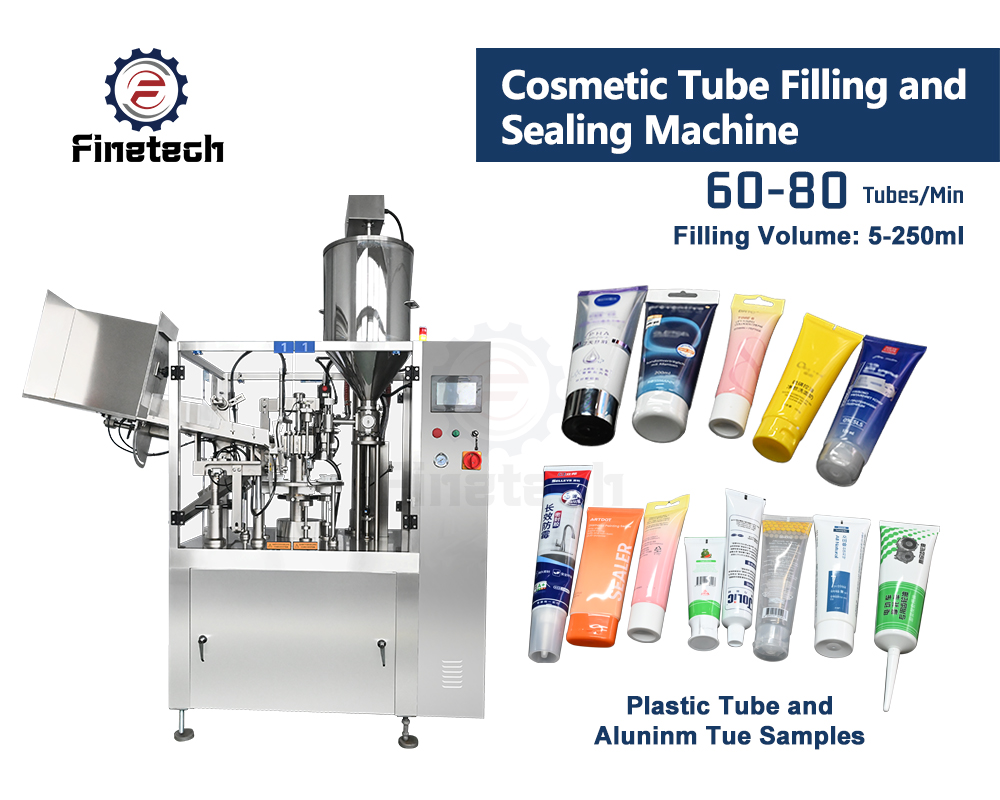

Cosmetic Tube Filling and Sealing Machine
Designed for precise, high-efficiency filling of creams, lotions, gels, and pastes into laminate, plastic, or aluminum tubes.

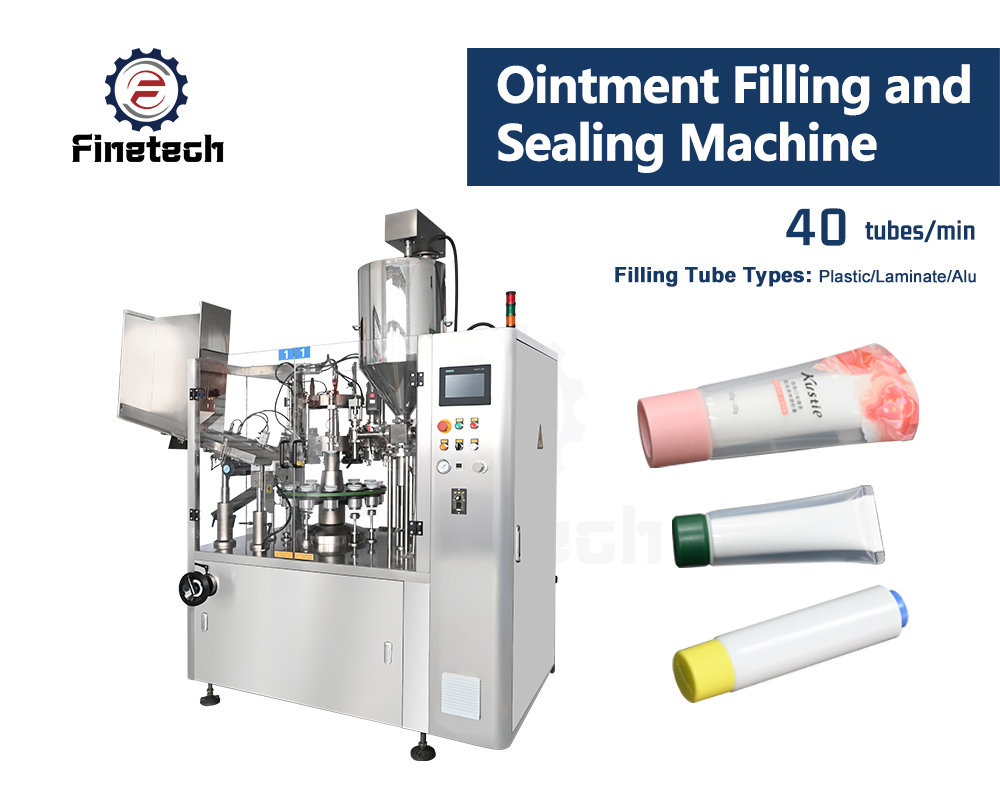

Ointment Filling and Sealing Machine
Fills 5–250ml into 13–50mm tubes (laminate, plastic, aluminum). No-drip filling, automatic tube positioning, and reliable heat sealing. Up to 60 tubes/min.
Toothpaste Filling and Sealing Machine
This is a machine specially designed for toothpaste hoses, with a maximum filling speed of up to 150 pieces per minute.
Plastic Tube Filling and Sealing Machine
It integrates tube feeding, filling, sealing, coding and discharging into one filling process. Applied for packaging of paste, cream, gel and liquid products.
Rotary Tube Filling Machine
Production Speed: 30-120 tubes/min.
Tube Filling and Cartoning Machine
Integrated filling, sealing and box packing, high efficiency for paste & cream products.
Interested?
Finetech can customize tube filling and sealing machines according to your paste formula, tube capacity and dimensions.
Industries We Serve
Please click below to watch the production process of tube filling and sealing machine.
Playlist
Key Features
Automatic Tube Feeding
Configured systems load empty tubes into indexed holders with the open end correctly positioned. Assisted loading remains available for lower-volume work.
Print-Mark Orientation
A photoelectric sensor detects the registration mark and rotates the tube into the approved position. This keeps graphics aligned with the finished seal.
Product-Matched Dosing
Piston, pump, or other dosing systems are selected around viscosity and fill volume. Controlled motion supports repeatable fills across the production run.
Clean Filling Nozzle
Nozzle geometry and shutoff design help limit dripping, stringing, and contamination around the tube opening. Height can be adjusted for the product.
Conditioned Product Hopper
Available agitation, heating, or temperature control keeps sensitive products in a suitable filling condition. The selected arrangement reflects formulation needs.
Material-Specific Sealing
Heat and ultrasonic systems seal plastic or laminate tubes, while folding stations close metal tubes. Each process is tuned to the pack material.
Coding and Seal Trimming
The machine can emboss or print batch details in the planned seal area. Trimming removes excess material for a neat edge.
No-Tube, No-Fill Protection
Tube detection prevents dosing when a holder is empty or incorrectly loaded. This reduces spills and unnecessary cleaning.
Hygienic PLC-Controlled Operation
The interface centralizes speed, temperature, filling, alarms, and recipes. Accessible product-contact parts support inspection, cleaning, and changeover.
Certification
Our Services
We offer the following services: operations training, on-site installation and commissioning, and one-year maintenance service. For more details, please refer to the link below.
On-site installation and commissioning support for your pharmaceutical machinery.
Operator training to help your team understand the correct operation of the machine.
Online technical assistance for machine operation and troubleshooting.
Support for pharmaceutical workshop and production-line planning.
Support change parts: Tube Holder, Tube Locator, Filling Nozzle, Coding Stamp / Embossing Die.
We providing complete turnkey solution. From manufacturing to packaging line.
Technical Data
Operating Speed Range
18-150
tubes/minute
Filling Volume Range
0.5-300
ml
Filling Accuracy
01-0.5
%
Tube Diameter Range
10-50
mm
Specification
| Model | FT-09 | FT-60A | FT-80A | FT-120A | FT-30 | FT-80 | FT-150 |
|---|---|---|---|---|---|---|---|
| Operation speed | 18 - 28 units/ min | 60units/min(max) | 80units/min(max) | 120units/min(max) | 30-60units/min | 80units/min(max) | 150units/ min |
| Filling volume | 6 - 60ml、10 - 120ml、25 - 250ml | 5-250ml | 5-250ml | 5-250ml | 0.5 - 300ml | 1 - 300ml | 2 - 200ml |
| Filling precision | ±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±0.5% | ≤±1% |
| Suitable tube length | 70 - 210mm | 50-210mm | 50-210mm | 50 - 150mm | 50 - 200mm | 210mm（customizable） | 50 - 200mm |
| Suitable tube diameter | ⌀16 - 50mm | ⌀13-50mm | ⌀13-50mm | ⌀12 - 35mm | ⌀10 - 50mm | ⌀10 - 50mm | ⌀10 - 35mm |
Interested in a tube filling and sealing machine?
Talk to our experts to discover the right solution for your needs.
Related Technologies
FAQs
Common products include creams, gels, ointments, pastes, lotions, sauces, and selected liquids. Compatibility trials remain important.
Some platforms can be configured for multiple materials, but plastic heat sealing and metal folding require different stations and tooling.
Selection depends on viscosity, particulates, temperature, foaming, dose volume, accuracy, and the required cleaning procedure.
Incorrect shutoff timing, unsuitable nozzle design, trapped air, temperature, or product stringing can cause drips.
Yes. A print-mark sensor and orientation station rotate each tube to the approved position before filling and sealing.
Coding can be embossed or printed at the sealing station or another approved location, depending on the tube and design.
Yes, with a suitable heated hopper, piping, nozzle, and controls. Product temperature limits must be confirmed.
Provide samples or drawings showing material, diameter, length, wall construction, cap, artwork mark, and desired seal style.
Use a defined sampling plan and calibrated weighing or volume method. Verify results under normal production conditions.
Yes. Finished tubes can transfer to an inspection or automatic cartoning system through a synchronized discharge.
Timing depends on holder changes, guide adjustments, fill parts, seal tooling, cleaning, and the required verification steps.
Finetech can assist with commissioning, training, troubleshooting, spare parts, and new tube-format development.
