Candy Counting Machine

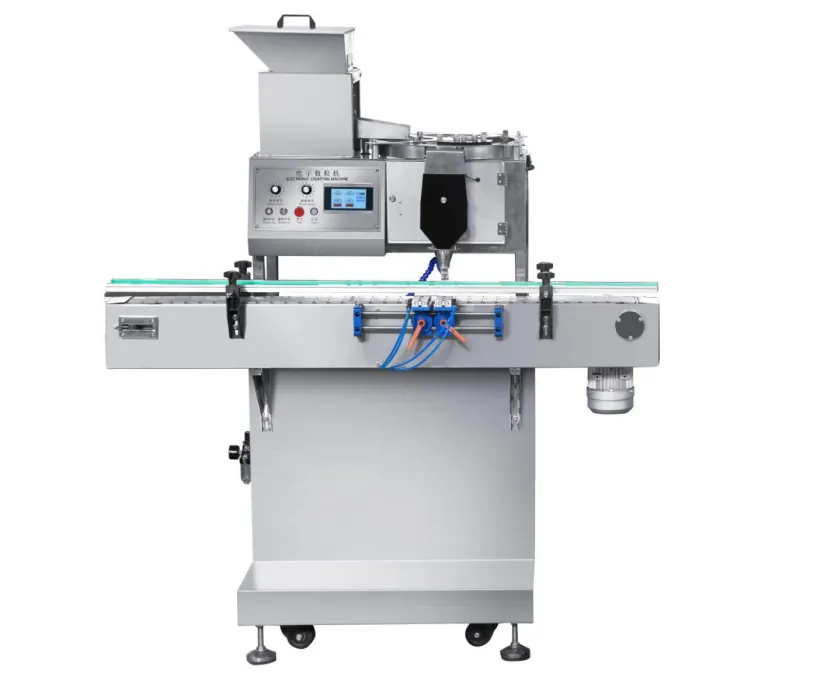

Finetech’s Candy Counting Machine is built for accurate counting and bottling of hard candies, chewy candies, mints, gummies, and coated confectionery products. The system is configured to maintain stable product separation and counting during continuous production.
This machine uses multi-channel vibratory feeding systems along with high-speed photoelectric sensors to guide candies into an organized counting flow. Standard configurations of this candy counting machine can achieve production speeds of up to 30 to 100 bottles per minute. It depends mostly on the candy shape, bottle size, and counting quantity.
Besoin d'un devis personnalisé ?
Pour plus d'informations sur ce produit, contactez notre équipe commerciale dès aujourd'hui !
Caractéristiques principales
Données techniques
Nom des pièces de la machine
FAQ
Application
Commentaires Pas encore de commentaires
- Anti-Clumping Feeding Design: Sticky gummies overlap or stick together during production. To solve this, the machine uses anti-clumping structures and controlled vibratory feeding channels.
- Haute précision de comptage: Photoelectric sensors and intelligent counting systems detect each gummy individually. Most configurations maintain counting accuracy above 99.8%.
Gummy Counting Machine Diagram. - Supports Sticky and Coated Gummies: The machine is suitable for sugar-coated, oiled, sanded, pectin, and vitamin gummies. Special vibratory tracks and PTFE-coated sections help reduce sticking.
- Capacité de production réglable: Production speed can be adjusted based on gummy size, bottle count, and product type.
- Easy Cleaning and Maintenance: The feeding channels, hopper sections, and discharge components are arranged for easier cleaning. This helps reduce downtime during cleaning schedules and product changeovers.
| Article | Spécifications techniques |
| Nom de la machine : | Automatic Candy Counting Machine |
| Matériaux applicables : | Gummy candy, hard candy, chewy candy, tablet candy, chocolate beans, marshmallow, sugar-coated candies and similar granular snacks |
| Counting Method: | High-precision optical fiber sensing counting, vibration automatic feeding |
| Précision du comptage : | ±0~1 piece |
| Counting Setting Range: | 1–999 pcs adjustable |
| Working Speed: | 25–50 bottles/min (based on product size and quantity) |
| Feeding Structure: | Multi-stage vibrating plate + corrugated material channel, anti-blocking and anti-damage |
| Système de contrôle : | PLC + touch screen, simple operation, data storage function |
| Auxiliary Detection: | Conveyor photoelectric sensor, bottle detection electric eye, bottle limiting cylinder |
| Pression d'air requise : | 0,6-0,8 MPa |
| Matériau principal : | Full SUS304 food-grade stainless steel |
| Key Configuration: | Japan OMRON imported fiber sensors, air pressure gauge, dust suction channel |
| Protective Design: | Transparent glass cover, fully enclosed dustproof structure |
| Alimentation électrique : | 220V / 50Hz, single phase |
| Puissance totale : | 1.2–1.8 KW |
| Système de convoyeur : | Adjustable speed mesh belt conveyor |
| Volume de la trémie : | 35L large capacity storage hopper |
| Overall Dimension: (L×W×H) | 1250×800×1420 mm |
| Poids de la machine : | 220 kg |
| Optional Devices: | Bottle arranging machine, automatic capping linkage system, alarm indicator light |
| Norme de conformité : | Food grade hygiene standard, safe and easy to clean, GMP compatible |
It works for regular gummies, coated gummies, oiled gummies, vitamin gummies, fruit gummies, irregular-shaped soft candies. It adapts to sticky, soft and differently sized gummy products.
Widely used in food processing, confectionery manufacturing, dietary supplement, pharmaceutical and health product packaging factories.
Standard models reach 99.9%+ counting accuracy.
- Desktop/semi-auto model: 10-30 bouteilles/min.
- Single-lane full-auto model: 30–60 bottles/min.
- Multi-lane industrial model: Up to 120+ bottles/min.
Suitable for gummies from 5mm to 40mm in diameter.
Oui. It matches plastic bottles, glass bottles, pouches, boxes and other common packaging forms.
food-grade 304 stainless steel.
