Make capsule filling more efficient with a semi-automatic capsule-filling machine designed for controlled dosing and dependable operation. The system supports powders, granules, and pellets while helping operators achieve consistent fills, secure capsule locking, and smoother production with less manual handling.
Finetech semi-automatic capsule filling machines provide an efficient transition from manual filling to higher-volume production. They handle key stages such as capsule feeding, separation, filling, and locking, while operators manage the transfer of capsules between each station. The combined process reduces manual workload, increases output, and gives operators greater control over routine production.
Different configurations are available for filling powders, granules, and pellets into hard capsules from size 000 to 5. Manufacturers can select a machine based on the filling material, capsule size, target output, preferred controls, and available production space. Flexible configuration options like these make the equipment suitable for small and medium-scale manufacturers with changing production requirements.
Repetitive filling tasks require less hands-on work because the machine manages several key stages of the process, which can make daily operation less physically demanding for staff.
A semi-automatic system offers a practical way to raise production capacity while avoiding the larger capital investment associated with a fully automatic capsule line.
Finetech offers different capsule sizes and filling materials that can be accommodated through suitable change parts and machine adjustments.
Finetech has more than 30 años of pharmaceutical equipment manufacturing experience, with machines supplied to customers in over 100 países y regiones. Its portfolio covers material processing, solid-dose production, filling, and final packaging, which allows manufacturers to source individual machines or build customized production lines around their products, required capacity, and operating conditions. Installation, commissioning, operator training, technical guidance, and spare parts services provide ongoing support throughout the equipment lifecycle.
Capacidad máxima: 25.000-30.000 piezas por hora
Cápsulas aplicables: #00, #0, #1, #2, #3, #4, #5/Diferentes tamaños necesitan diferentes moldes
Tamaño del embalaje: 1800x1200x1700 mm
Capacidad máxima: 25.000-30.000 piezas/hora
Cápsulas aplicables: 000#, 00L#, 00#,0L#, 0#, 1#,2#, 3#, 4#,5#
Fuerza: 4,0 kW
Tamaño del embalaje: 1140×700×1600 mm
Capacidad máxima: 40.000 piezas/hora
Cápsula aplicable: 000# /00# /0# /1# /2# /3# /4# /5#
Fuerza: 2,2 kW
Tamaño del embalaje: 1640*720*1700 milímetros
Cada línea de producción tiene unos requisitos distintos.
Indíquenos el tamaño de sus cápsulas, el material de llenado, la capacidad de producción necesaria y los requisitos de la fábrica. Nuestro equipo puede ayudarle a elegir una máquina semiautomática de llenado de cápsulas adecuada.
Machines Specially Designed for Small‑Scale Manufacturers. Explore Our Three Major Application Industries.
Finetech continually improves its semi-automatic capsule filling machines. Each upgrade supports easier operation, stable performance, and greater production capacity.
Electrical connections are enclosed within the machine housing. This creates a cleaner layout and reduces exposure to potential electrical hazards.

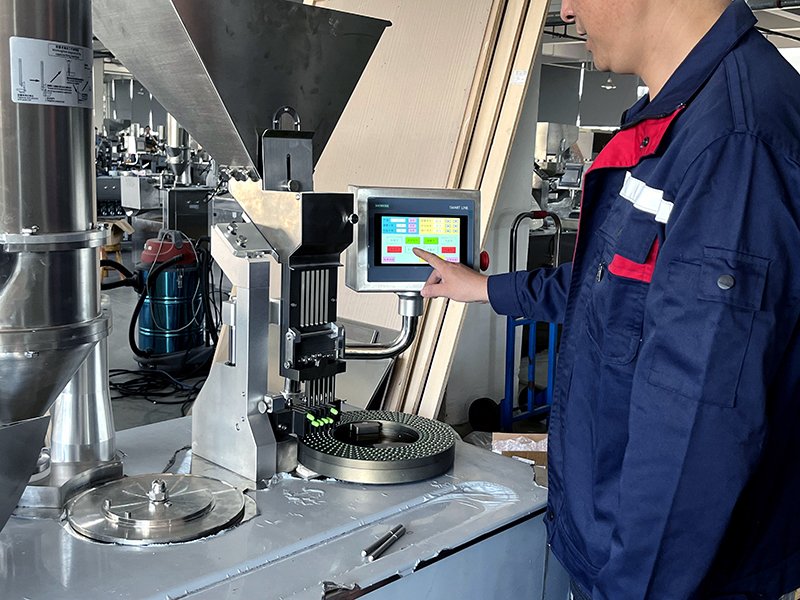

The integrated gearbox improves power transmission. An upgraded motor control system supports stable operation and consistent performance throughout routine capsule production.
Los sistemas de control prácticos y la disposición de las máquinas facilitan el funcionamiento diario, los ajustes y la gestión de la producción.

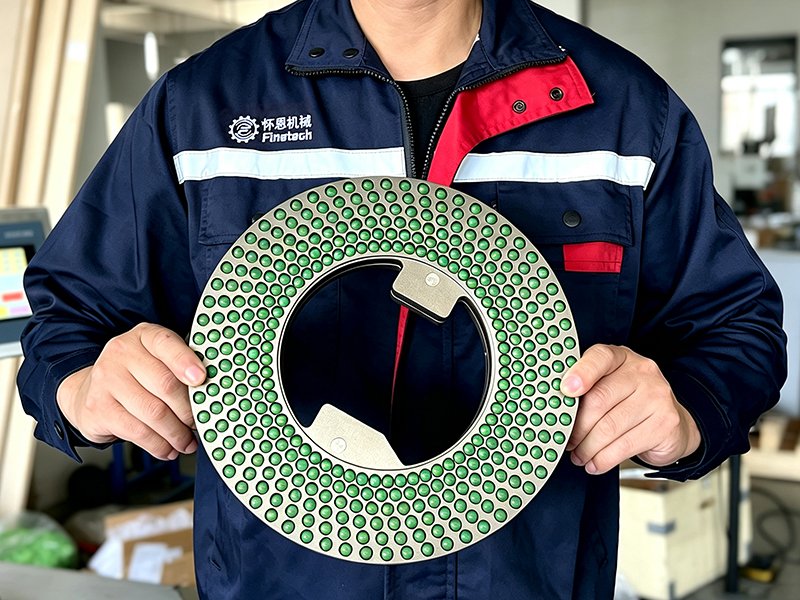

Selected mold components receive two years of replacement support. These include capsule discs, pin discs, feeding forks, and capsule sorting plates.

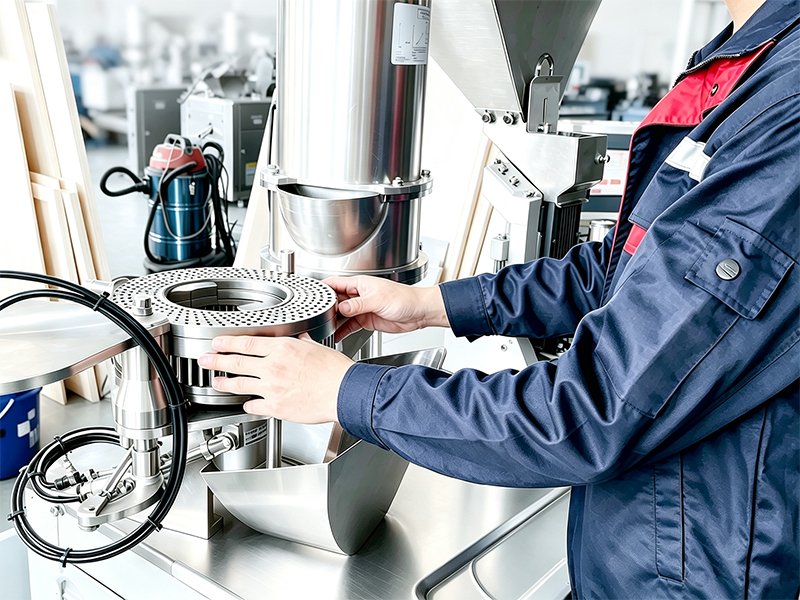

Durable stainless-steel surfaces resist corrosion and support thorough cleaning, making the machine suitable for routine use in pharmaceutical production environments.
A dust extraction connection captures excess powder around the filling area. This keeps the workspace cleaner and reduces material buildup during production.
Finetech suministra máquinas semiautomáticas de llenado de cápsulas diseñadas para mejorar la eficiencia y la uniformidad de la producción de cápsulas sin el coste ni la complejidad que supone una línea de producción totalmente automática.
Finetech suministra máquinas semiautomáticas de llenado de cápsulas diseñadas para mejorar la eficiencia y la uniformidad de la producción de cápsulas sin el coste ni la complejidad que supone una línea de producción totalmente automática.
Asistencia in situ para la instalación y puesta en marcha de su maquinaria farmacéutica.
Formación para operadores, con el fin de ayudar a tu equipo a comprender el funcionamiento correcto de la máquina.
Asistencia técnica en línea para el manejo de la máquina y la resolución de problemas.
Apoyo a la planificación de talleres farmacéuticos y líneas de producción.
Piezas de recambio: placa de alimentación de cápsulas, bloque de orientación, empujador de orientación, bandeja superior (bandeja de tapones), bandeja inferior (bandeja de cuerpos) y varillas reguladoras.
We providing complete turkey solution. From manufacturing to packaging line.
Desarrollamos soluciones sostenibles de llenado de cápsulas para fabricantes a pequeña escala.
Capacidad máxima de producción
cápsulas/hora
Gama de tamaños de cápsulas
tamaños de cápsulas
Rango de potencia
kW
Peso de la máquina
kilogramo
| Modelo | Tipo de botón | Tipo de pantalla táctil | Tipo doble |
|---|---|---|---|
| Capacidad de producción | 25.000–30.000 piezas/h | 25.000 piezas/hora | 40000 piezas/hora |
| Aplicación del tamaño de la cápsula | 000#, 00L, 00#, 0L#, 0#, 1#, 2#, 3#, 4#, 5# | 000#, 00L, 00#, 0L#, 0#, 1#, 2#, 3#, 4#, 5# | 000#, 00#, 0#, 1#, 2#, 3#, 4#, 5# |
| Material de relleno | Pellet, Polvo sin humedad, Gránulos | Pellet, Polvo sin humedad, Gránulos | Pellet, Polvo sin humedad, Gránulos |
| Fuerza | 4,0 kW | 2,2 kW | 2,2 kW |
| Tamaño de la máquina | 1140 x 700 x 1630 mm (largo x ancho x alto) | 1300*800*1750(mm) | 1350×850×1630(mm) |
| Peso de la máquina | 400 kg | 400 kg | 450 kg |
| Dimensiones del paquete | 1640*720*1700 mm | 1640*720*1700 mm | 1720 x 870 x 1750 mm (largo x ancho x alto) |
| Peso del paquete | 520 kilos | 500 kilogramos | 540 kg |
Finetech se dedica a la investigación y el desarrollo, así como a la fabricación de maquinaria farmacéutica, y ofrece equipos de llenado de cápsulas adaptados a diferentes necesidades de producción.
Esto cubre una amplia gama de conocimientos sobre equipos de llenado de cápsulas, incluidos procedimientos operativos estándar de mantenimiento, consejos de compra, recomendaciones de proveedores y principios de funcionamiento, etc.
Are you frustrated with the inconsistent output from manual capsule filling? Perhaps your customers are complaining about uneven dosages? It’s high time to switch from manual processes to capsule-filling machines.
Capsule filling machines are changing fast, as manufacturers are moving toward more automated production systems.
Manually filling capsules often leads to inconsistent dosing and wasted power, resulting in critical quality
On a semi-automatic capsule filling machine, you need to swap parts if you want to
Consider the required production output, capsule sizes, filling material, dosage requirements, operator availability, cleaning procedures, and available floor space. Manufacturers should also review change-part requirements, utility connections, control options, and compatibility with other production equipment.
The machine feeds and separates empty capsules before filling the capsule bodies with the required material. The operator transfers the capsule tray or mold between the separation, filling, and locking stations. Once filled, the capsule bodies and caps are securely joined and discharged for further processing or packaging.
Depending on its configuration, a semi-automatic capsule filler can process powders, granules, and pellets. The product’s density, particle size, flow characteristics, and required dosage should be evaluated when selecting the filling system.
The main difference lies in the level of operator involvement. Semi-automatic equipment requires operators to move molds or trays between filling stages, whereas fully automatic systems perform the complete process continuously. For small and medium production volumes, a semi-automatic filler offers a more affordable way to increase output without investing in a fully automated line.
Yes, but each capsule size normally requires a matching mold or set of change parts. Finetech offers models for hard gelatin and HPMC capsules from size 000 to 5, with extended sizes such as 00L and 0L supported by selected models. Confirm which molds are included, the price and lead time for additional tooling, and the complete changeover procedure before placing your order.
A factory acceptance test should verify performance with your actual capsules and filling material whenever practical. Check capsule orientation and separation, fill-weight consistency, locking quality, damaged-capsule rate, sustained output and safety controls. Each ordered capsule size should also be tested. Record the settings, results and any corrective work in a signed report and video so you have an objective reference for installation and site acceptance.
A machine may support the stated capsule size but still perform differently with capsules from different suppliers. Shell dimensions, moisture content, brittleness, static charge, and cap-to-body fit can affect feeding, separation, filling, and locking. Ask the manufacturer to test the exact gelatin or HPMC capsules you plan to use. The trial should record unopened capsules, cracked shells, loose caps, locking failures, and the overall rejection rate.
